BBT-169 Steel Bottom Bracket / Lockring Tool

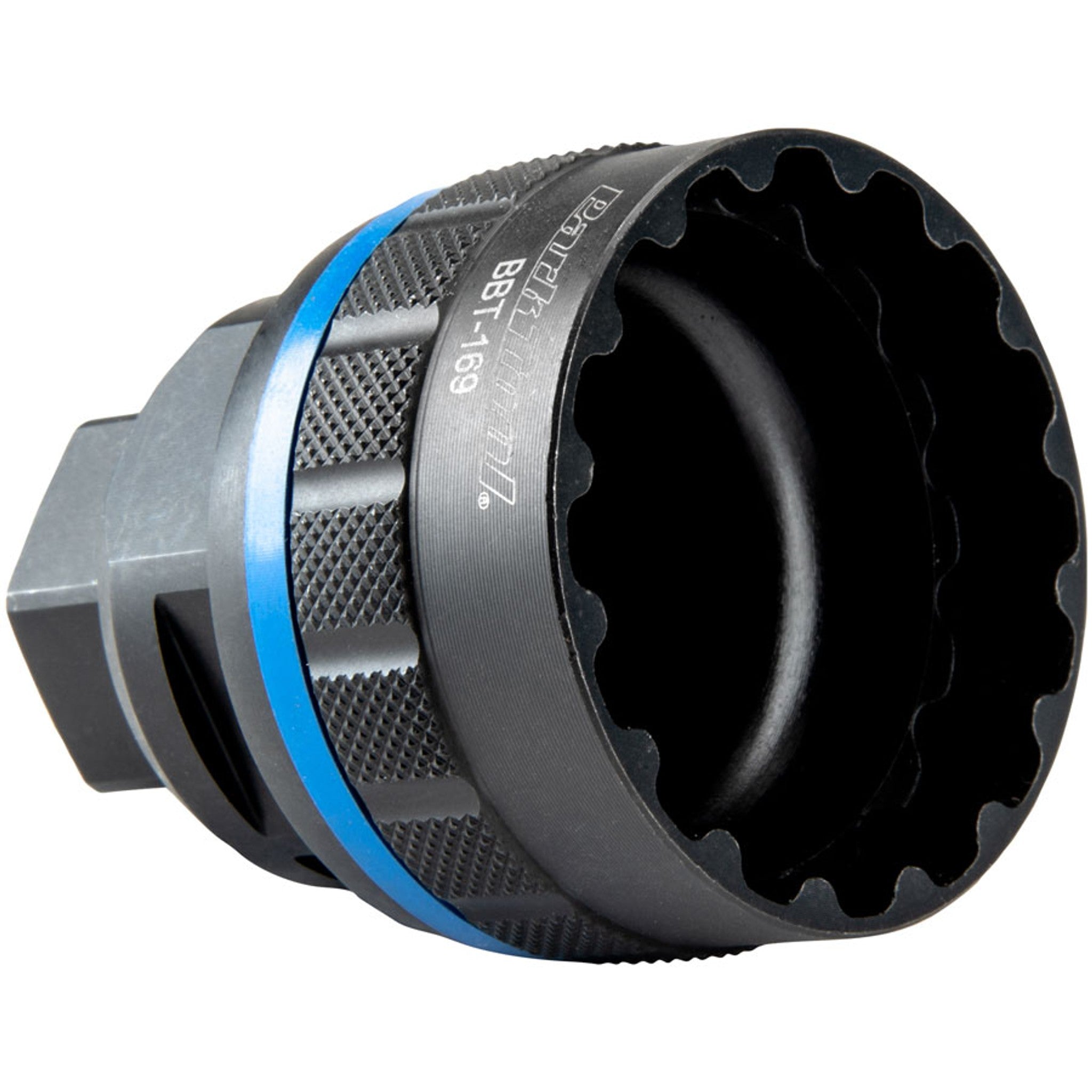

The Park Tool BBT-169 Steel Bottom Bracket / Lockring Tool is a heavy-duty 4140 steel workshop tool for removal and installation of components with 16-notch tool fittings, covering threaded bottom bracket cups, center lock disc brake rotor lockrings, and e-bike motor lockrings. The BBT-169 fits 16-notch fittings with a major diameter of 44–45mm and a minor diameter of 42.7mm, encompassing Shimano BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups, as well as cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, and others. Center lock disc brake rotor lockrings and Bafang BBSH and BBS02 mid-drive motor lockrings are also within its scope, making the BBT-169 one of the broadest-application tools in the Park Tool bottom bracket range. The extra-deep body handles extra-wide spindles, low-profile walls seat into recessed lockrings, and three drive options — 3/8" drive, 1" hex, and 36mm wrench flats — address seized components across the full compatibility list. Integrated threads accept the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins (each sold separately).

• Machined from 4140 steel for heavy-duty workshop use
• Fits 16-notch tool fittings with a major diameter of 44–45mm and a minor diameter of 42.7mm
• Compatible with Shimano BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups
• Also fits cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, and others
• Seats center lock disc brake rotor lockrings
• Fits Bafang BBSH and BBS02 mid-drive motor lockrings
• Extra-deep body accommodates extra-wide spindles
• Low-profile walls at the point of engagement reach recessed lockrings
• Three drive options: 3/8" drive fitting, 1" hex fitting, and 36mm wrench flats
• Outer diameter at point of engagement: 50.04mm (1.97")
• Internal clearance: 42mm (1.654") depth x 30.44mm (1.198") diameter
• Integrated threads accept Park Tool BBT-RS or GPS-1 Guide Pins for added stability (each sold separately)
• Not rated for use with impact drivers
