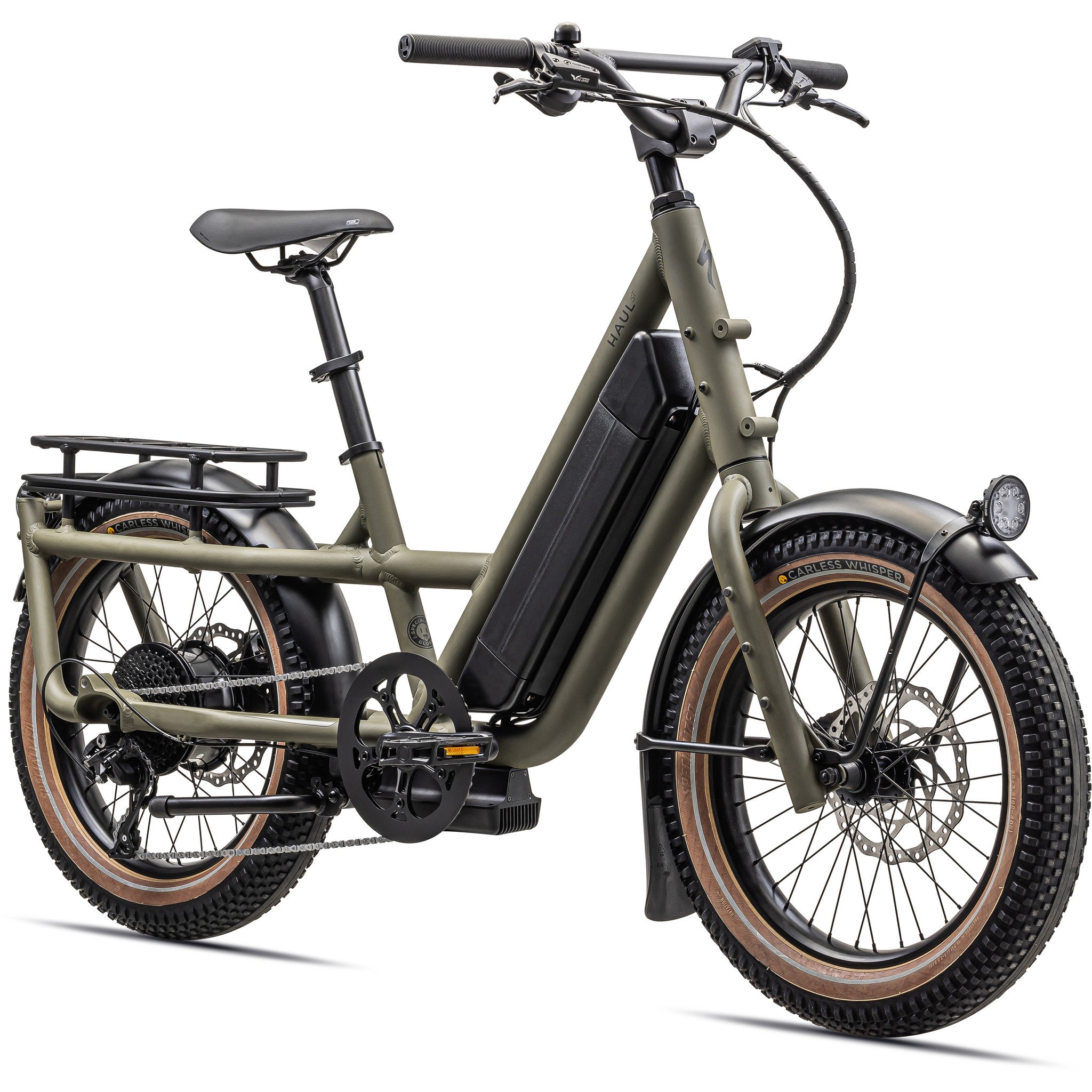

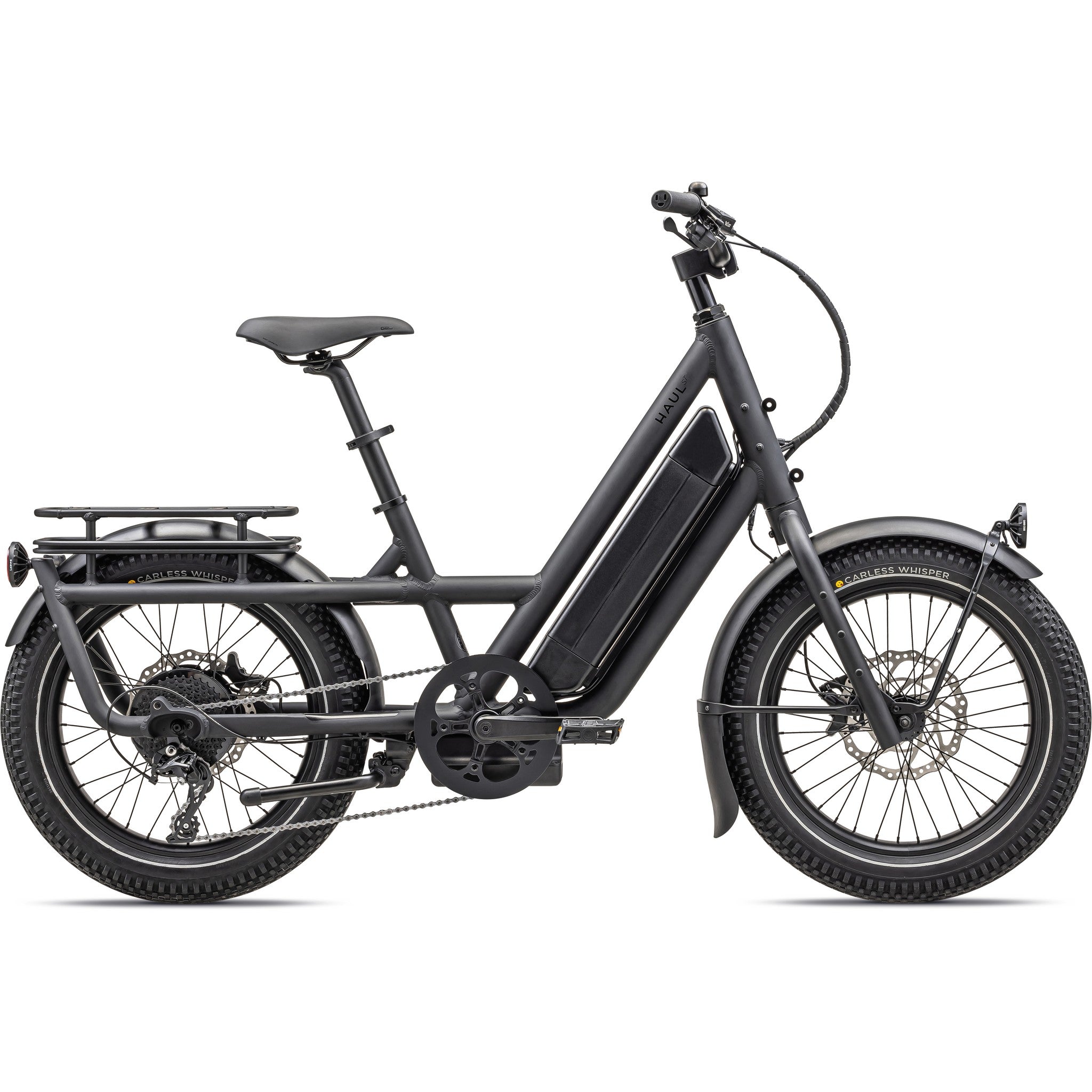

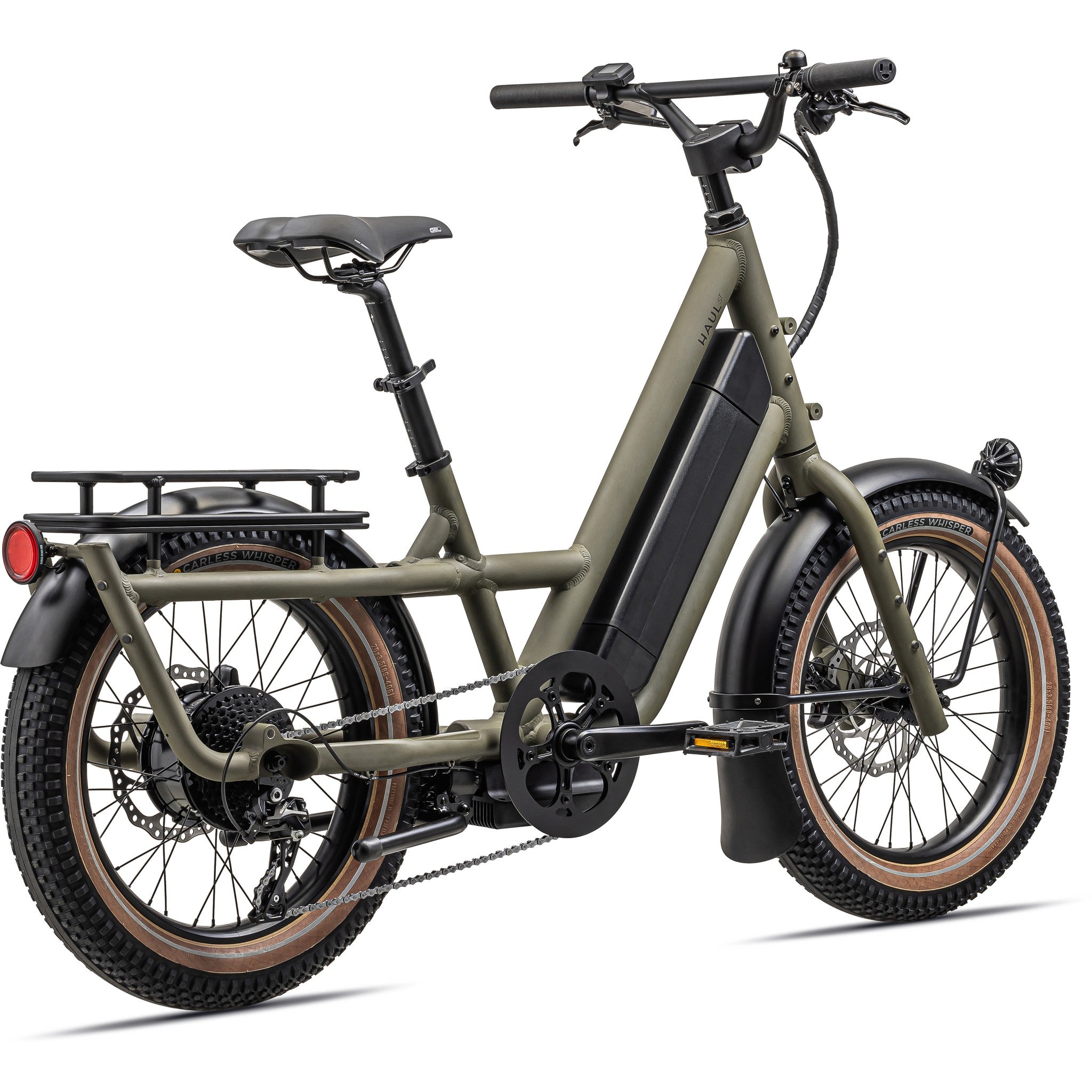

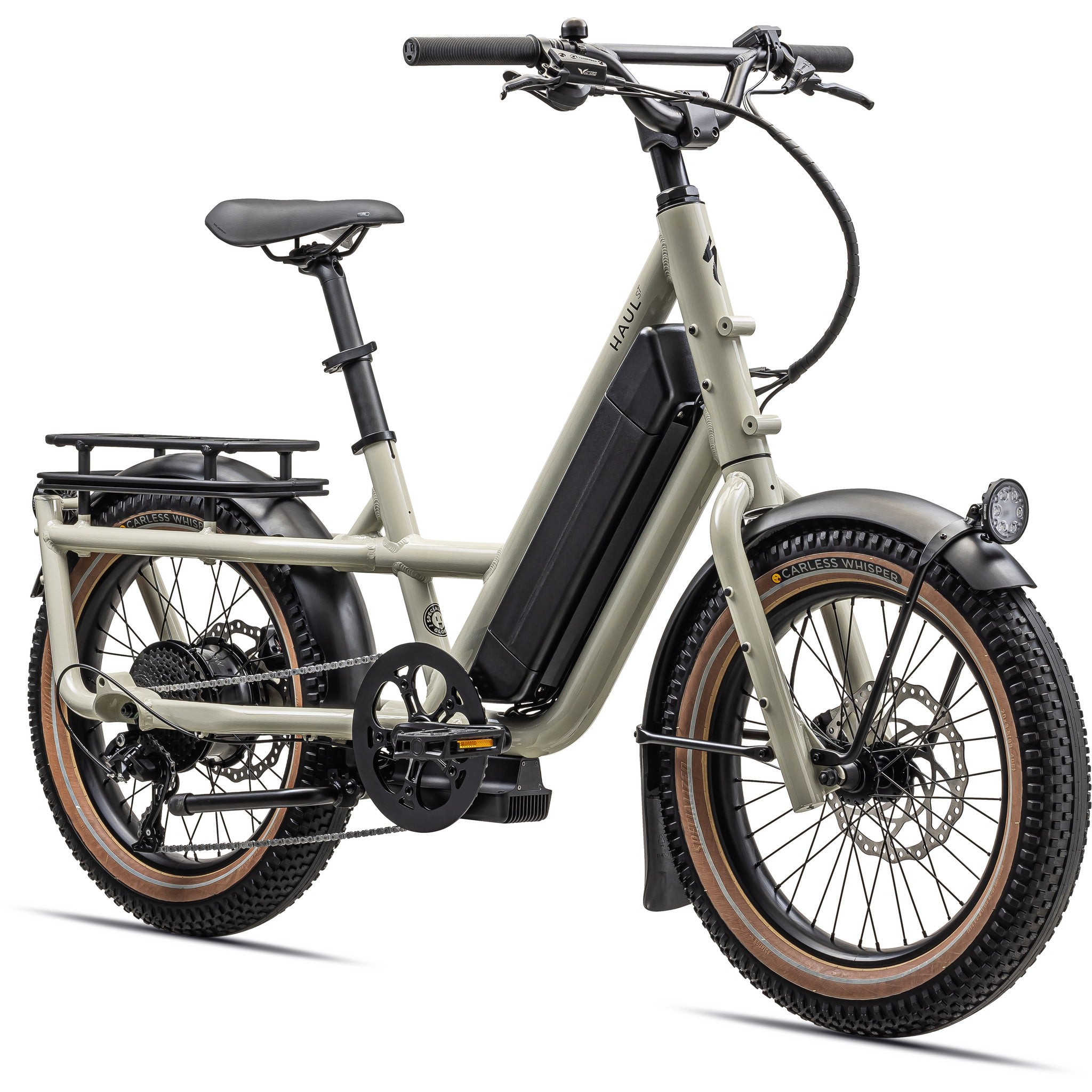

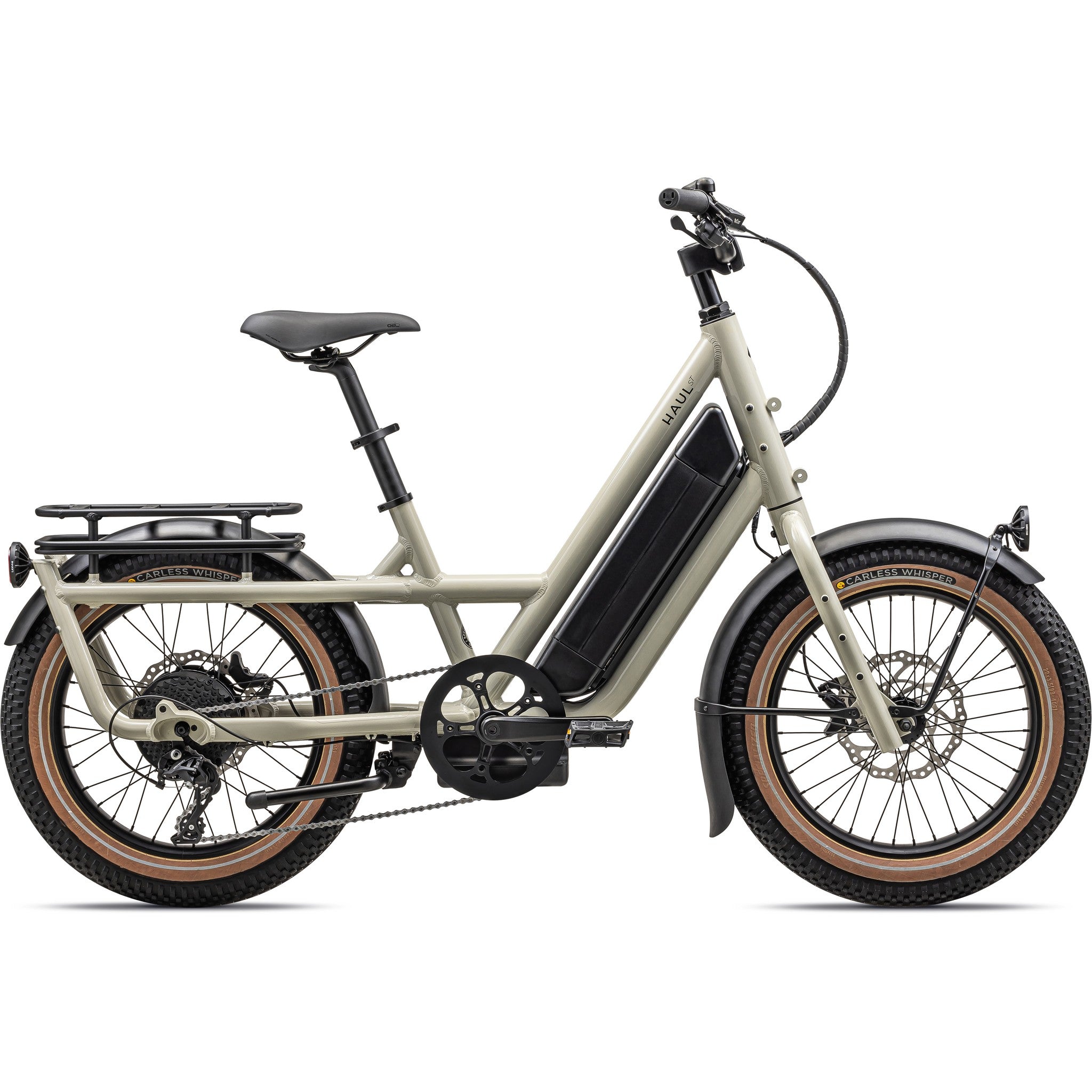

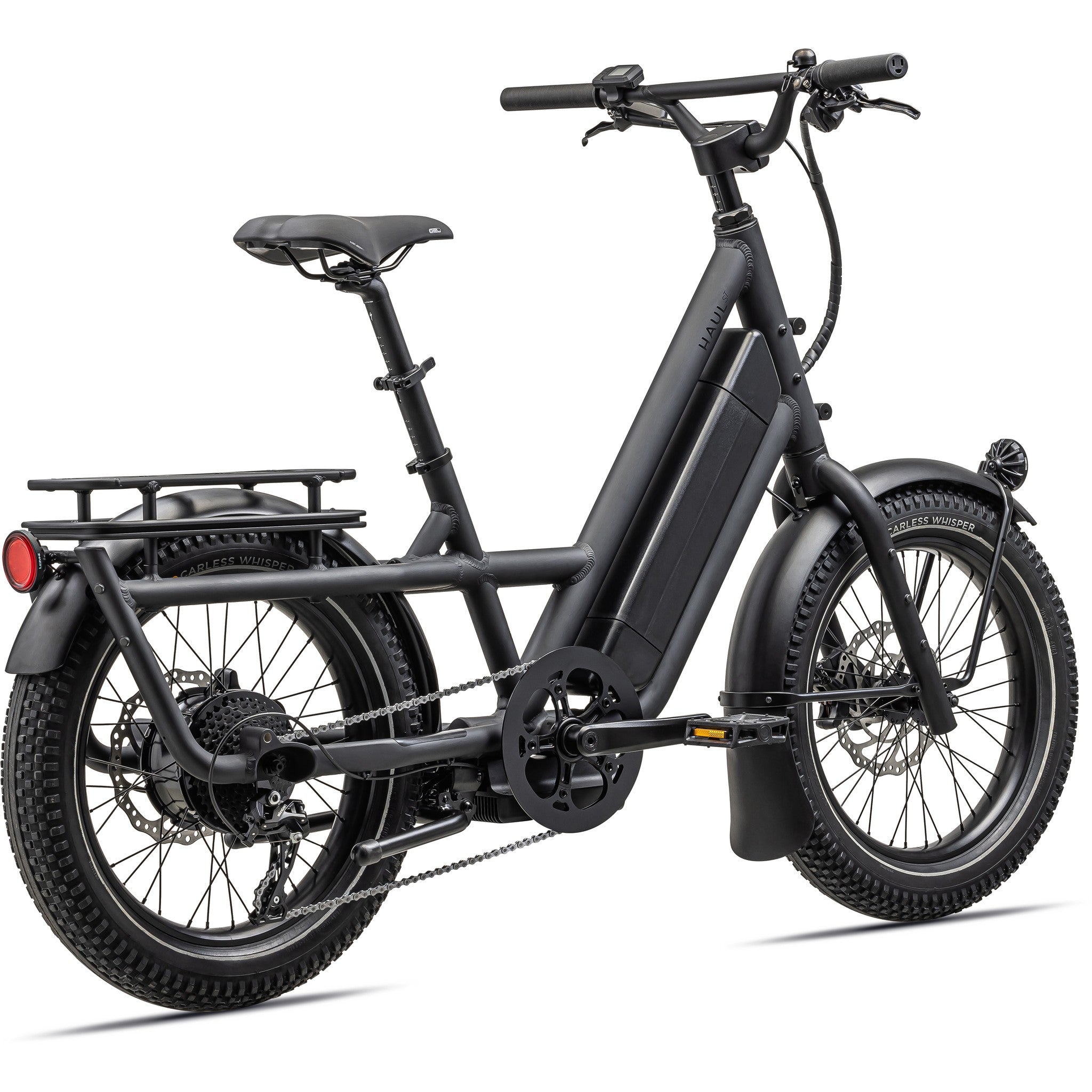

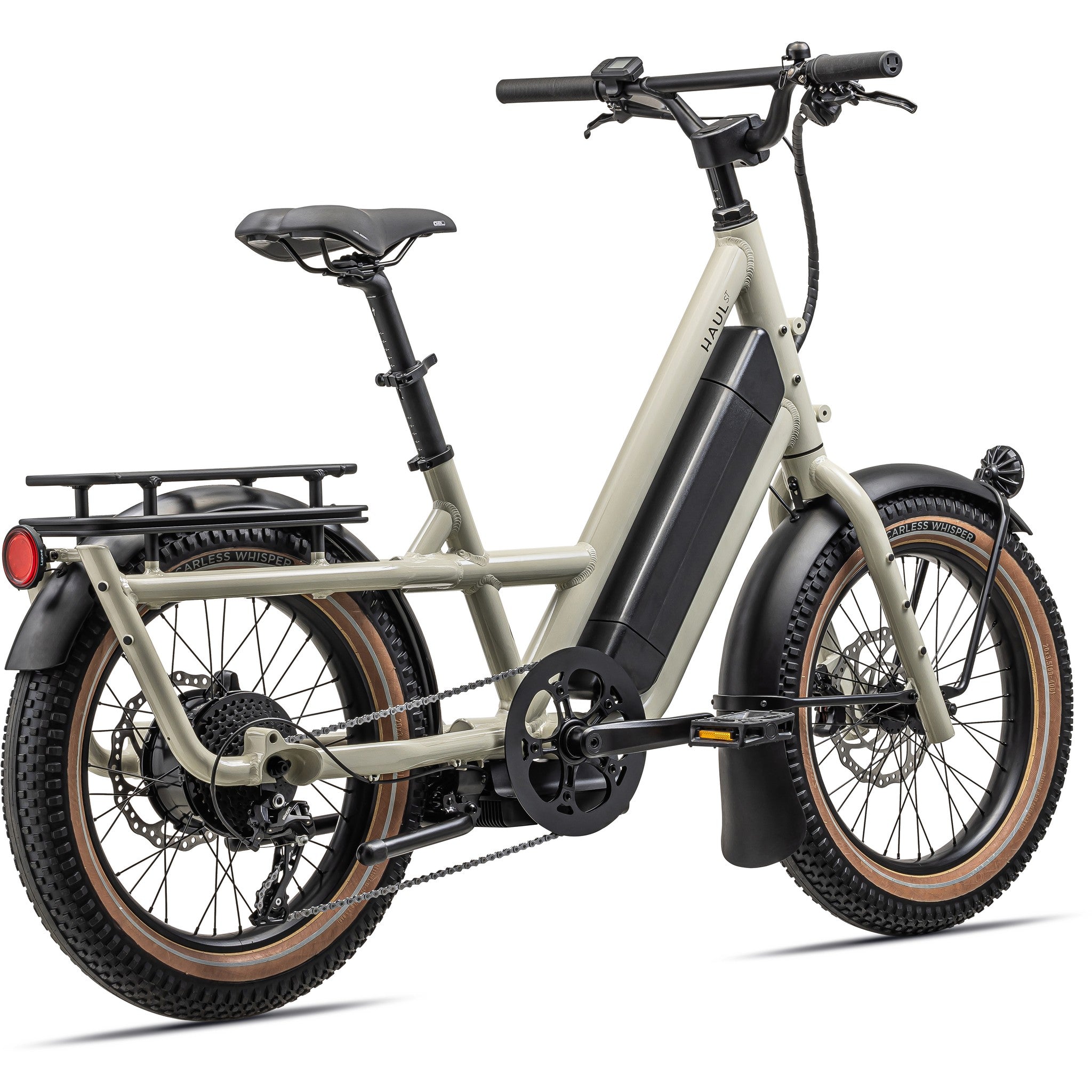

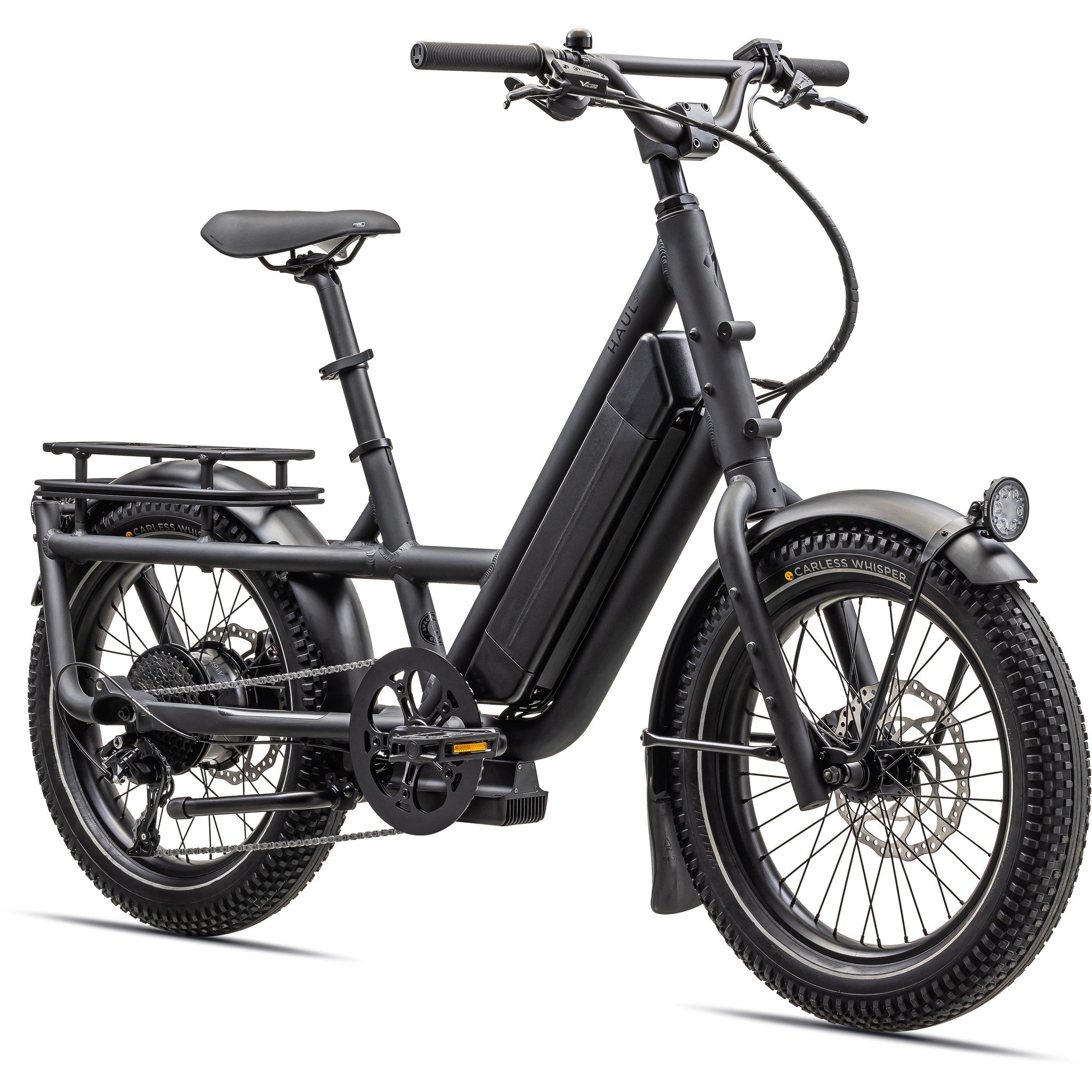

Designed for whatever you’re into, get more into it with the Specialized Globe Haul ST. With more power, more cargo, and more options, this fully customizable electric bike can haul up to 419 pounds including bike and rider and up to 60 miles with a standard sized rider. Plus, with a standard rear rack, integrated front and rear lights, and numerous accessory mounts, you can arrange your ride for any errand at any time — day or night.
- High power, 700w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides enough juice to tackle the biggest missions with up to 60 miles of range.

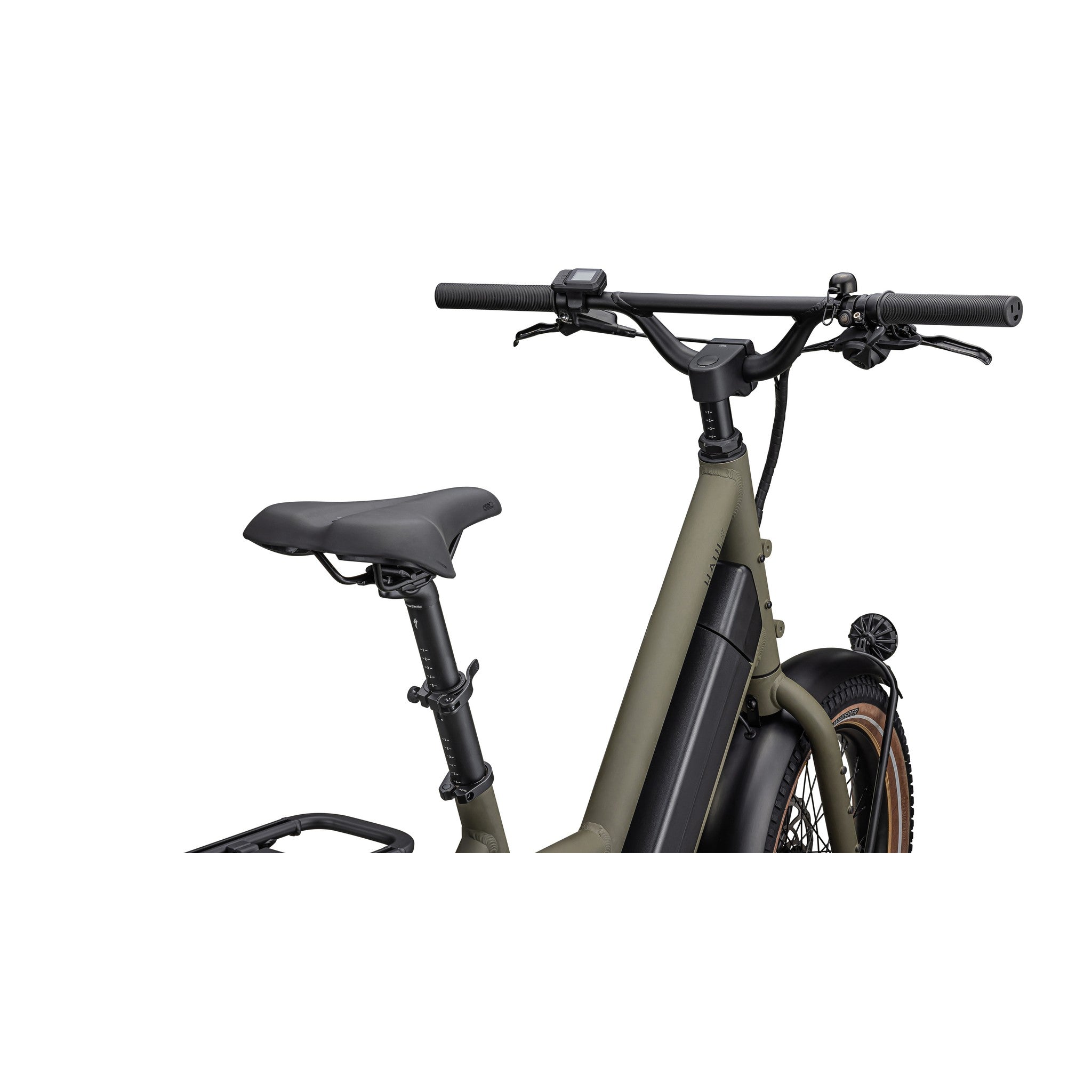

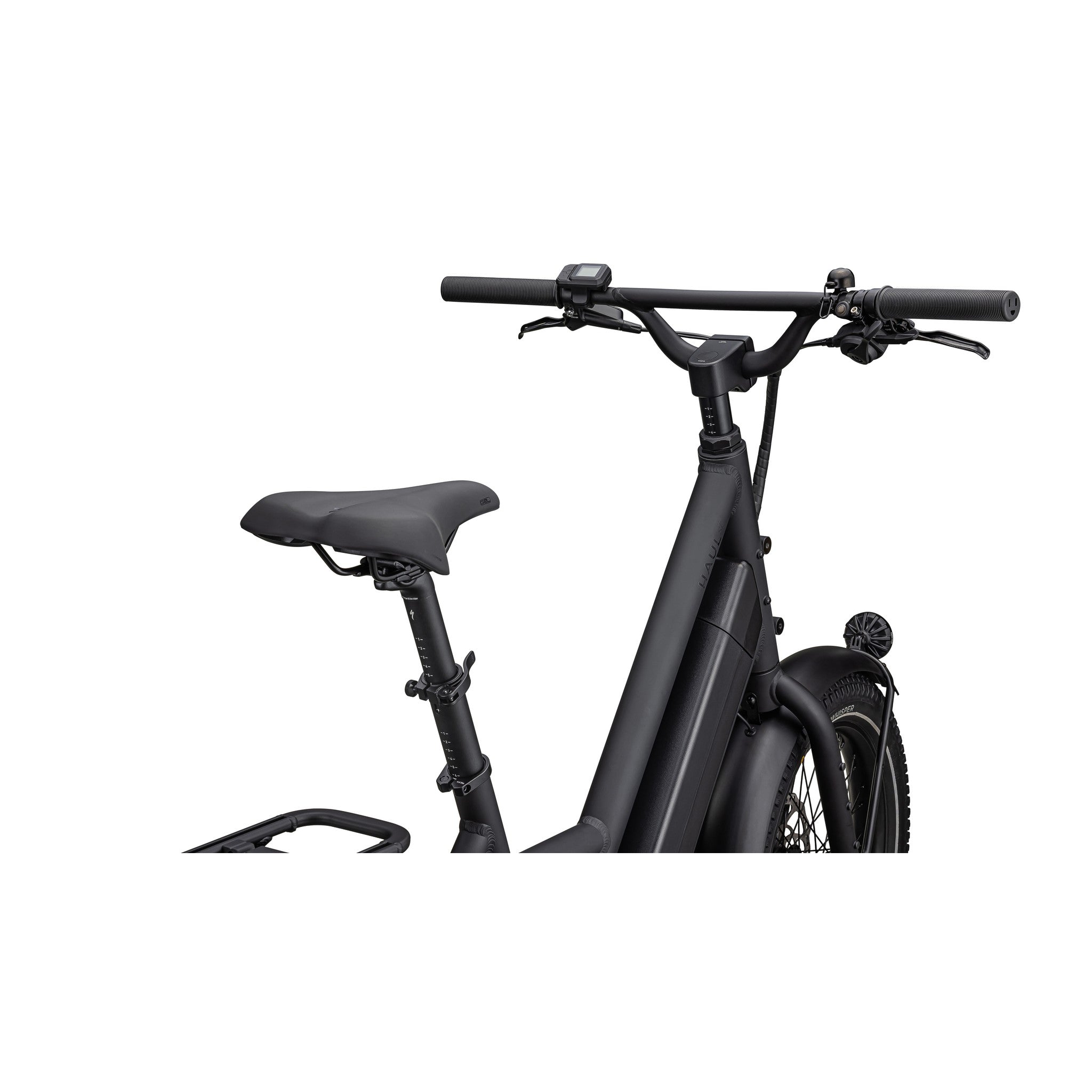

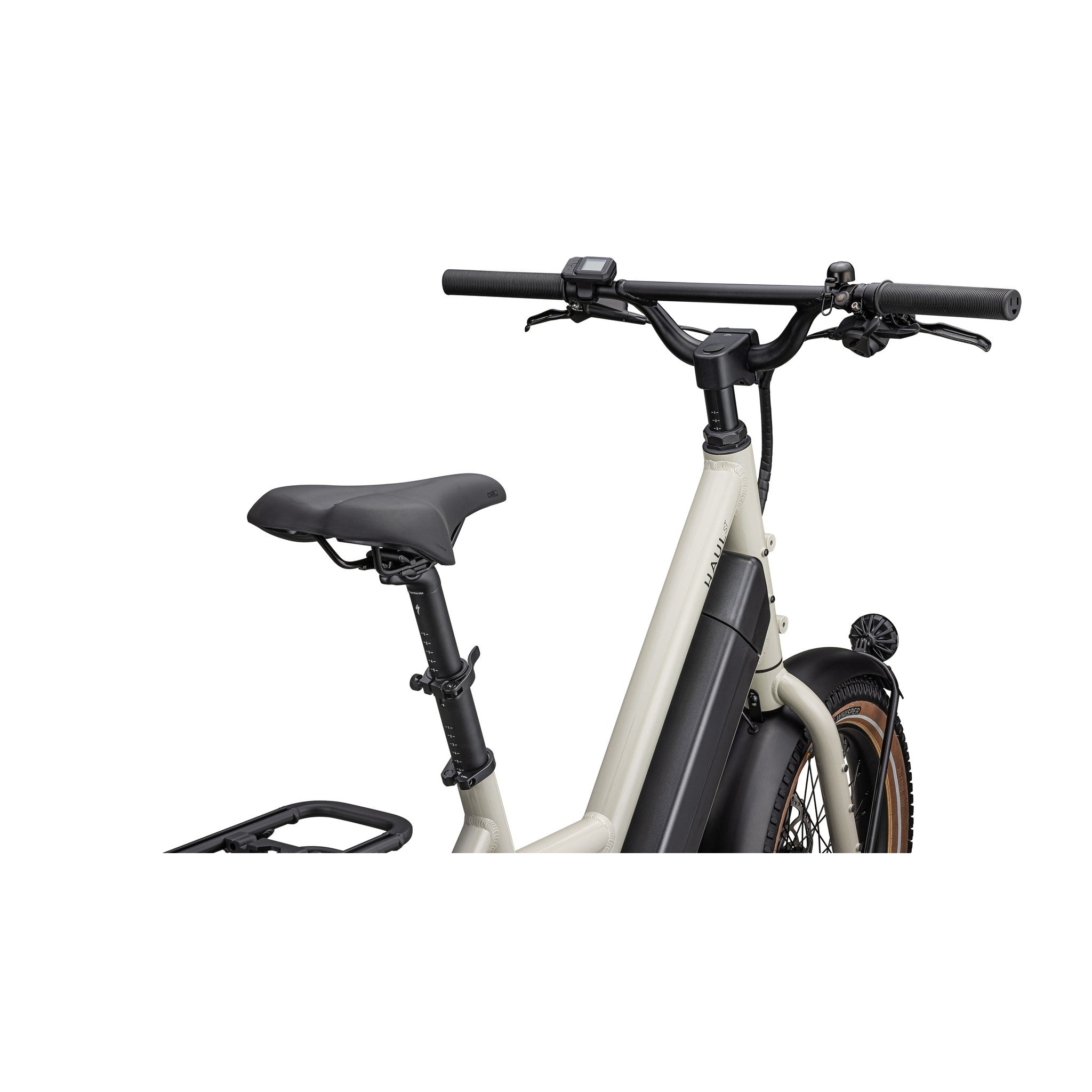

- Unique, single-size frame fits riders from around 4’5” all the way up to 6’4”. The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost 6 inches to provide comfort to almost every rider measured in our Retul database.
- 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.

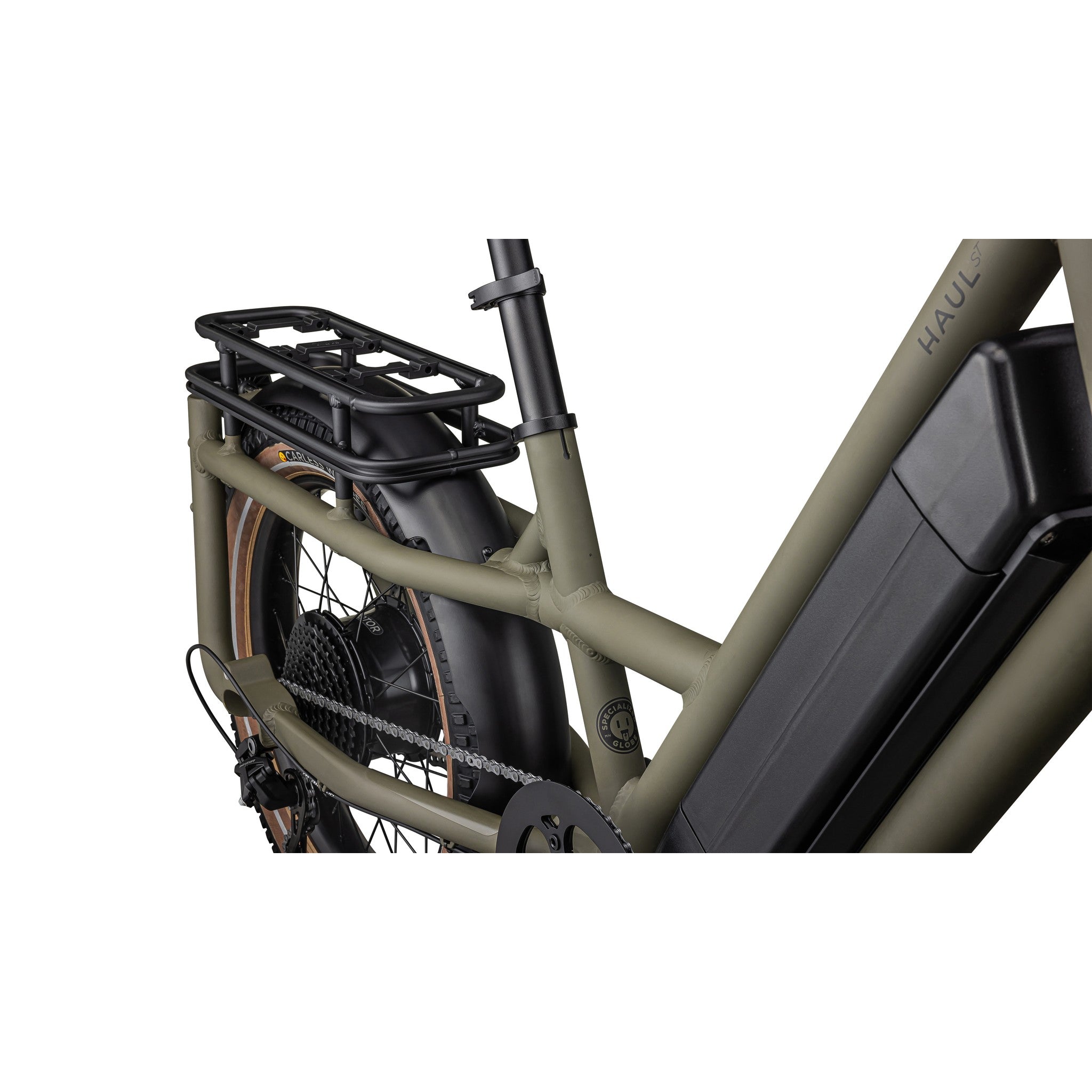

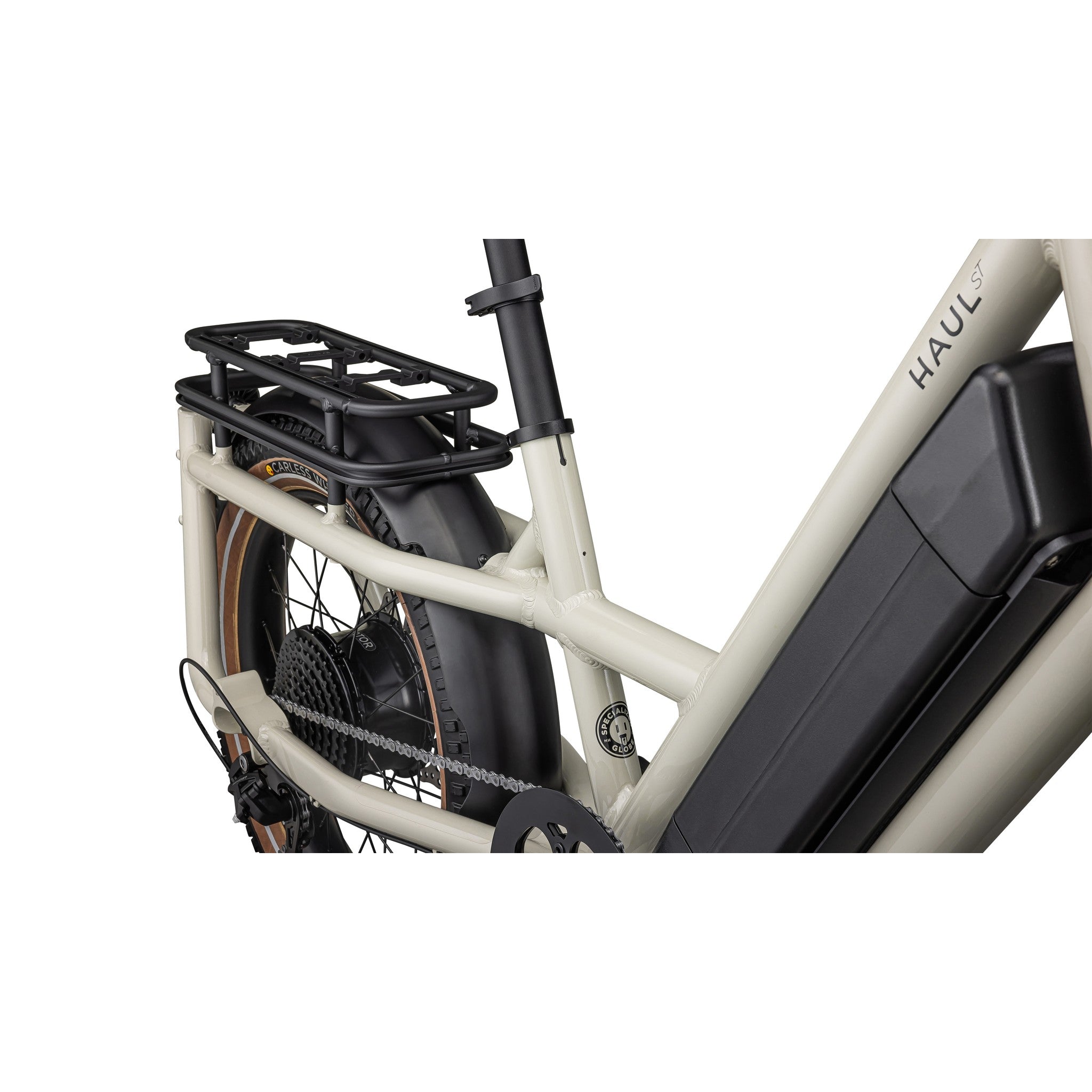

- Globe Haul ST comes out of the box ready for any task with an included MIK-compatible rear rack, full-coverage fenders, integrated lights, and a center stand. The additional accessory mounting points and a full suite of Globe equipment means you can customize your ride to your specific needs.
Technical Specifications
WHEELS
Rims
20'' disc, double-wall alloy, 50X20mm, 36h
Front Hub
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Rear Tire
Carless Whisper Reflect, 20X3.5
Front Tire
Carless Whisper Reflect, 20X3.5
Inner Tubes
Schrader, 32mm valve
Spokes
Stainless, 13g/2.3mm
DRIVETRAIN
Chainrings
50T
Crankset
Forged alloy arm, alloy chainring guard, 160mm
Chain
KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Bottom Bracket
Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Cassette
SunRace, 9-Speed, 11-36t
Shift Levers
microSHIFT Advent, 9-speed
Rear Derailleur
microSHIFT, short cage, 9-speed
FRAMESET
Seat Binder
Alloy, Bolt-type, 39mm
Fork
Globe Steel, Post mount disc brake, fender/rack mounts
Frame
Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts
ACCESSORIES
Headlight
Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes.
Taillight
Globe Cargo Drive, 50 Lumen
Fenders
Globe Cargo fenders, w/headlight mount
Rack
Globe, Short Tail, MIK HD interface, rail system
Kickstand
Globe, Short Tail, center mount
Pedals
Specialized Flat pedal
Bell
Brass bell
E-BIKE
Charger
Globe charger, 48V System w/ Globe system charger plug, AC power cord included
Motor
Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery
Globe external battery, 772Wh, IPX7
UI/Remote

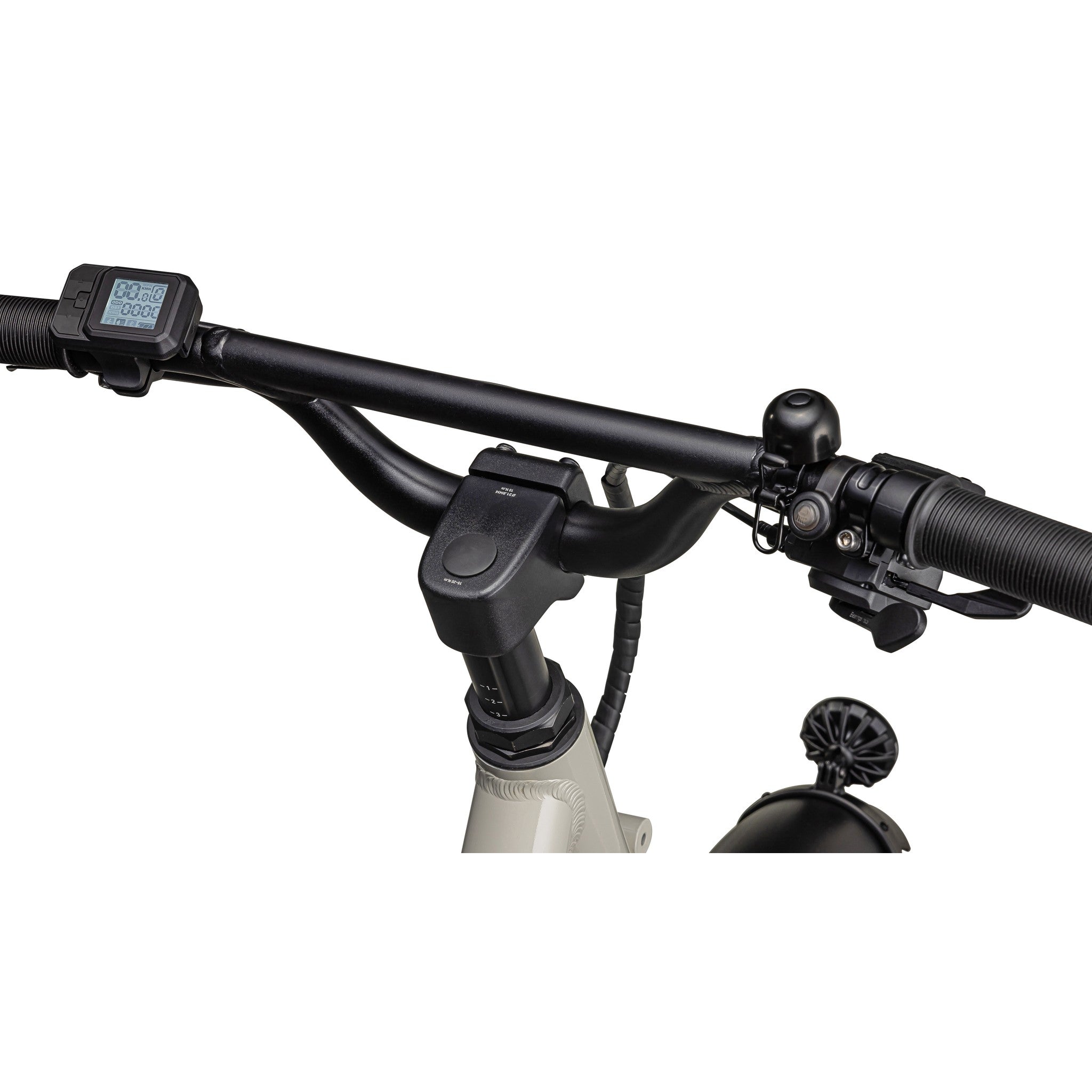

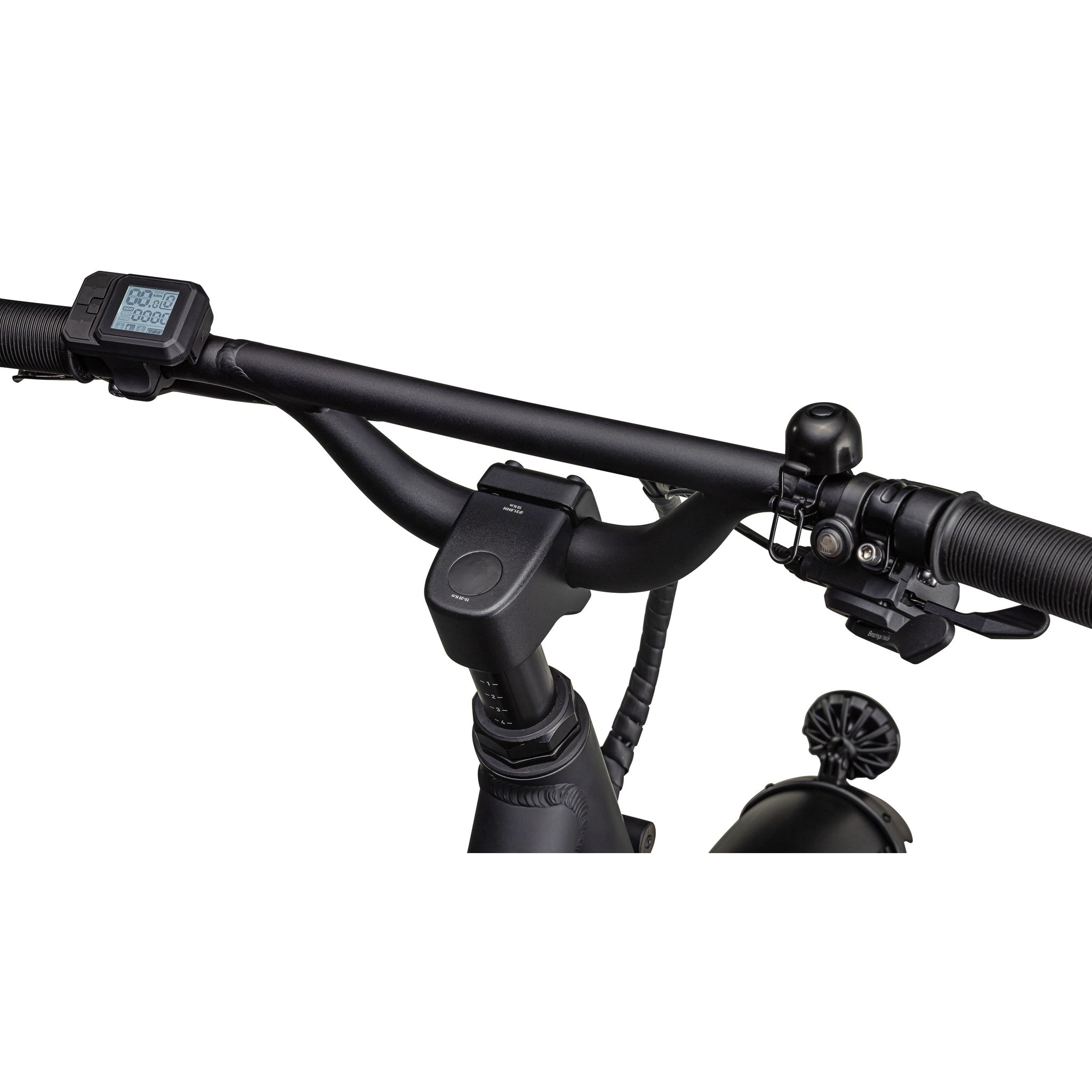

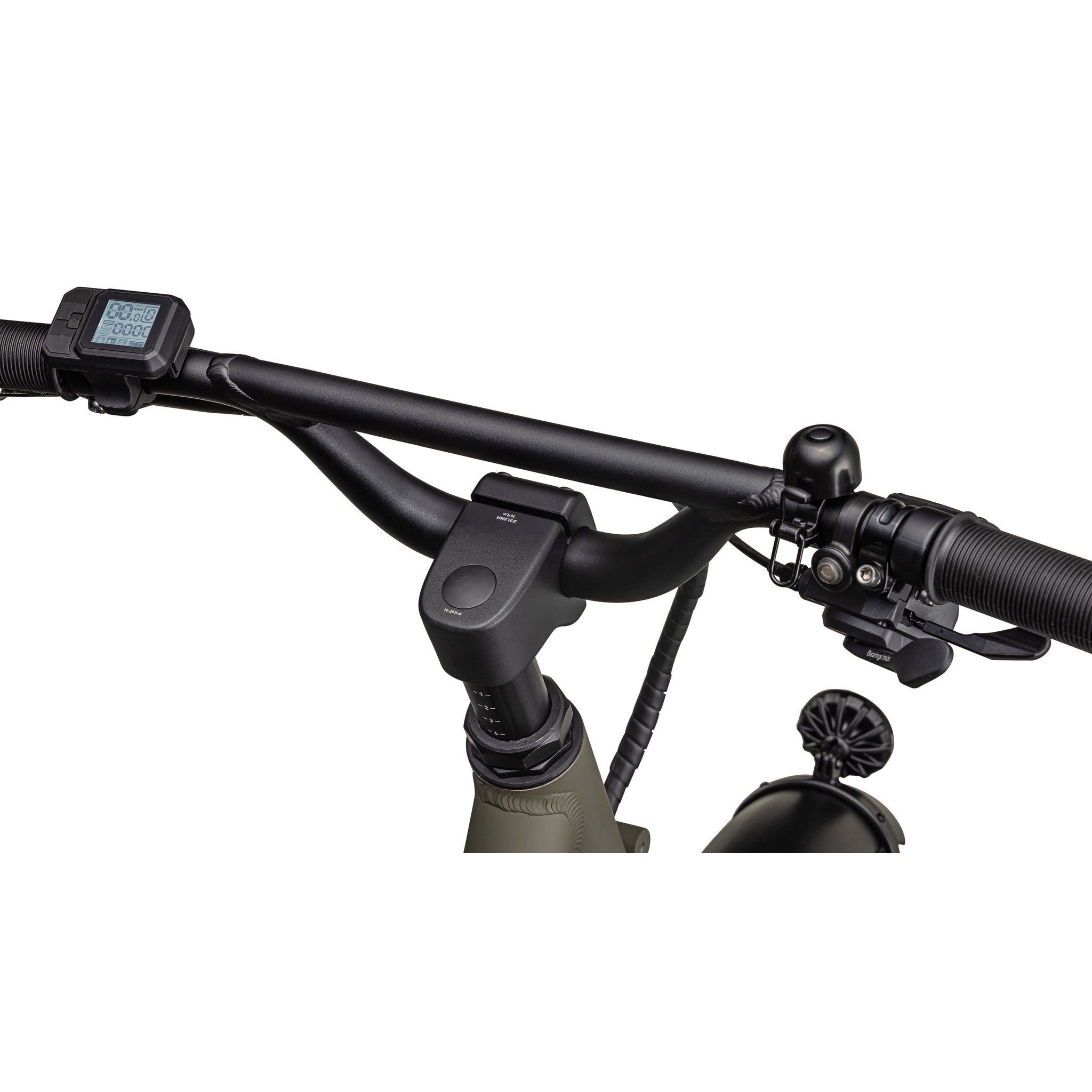

Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE
Wiring Harness
Globe wiring harness, IP65
COCKPIT
Grips
Globe closed end slip on type, 155mm
Stem
Globe, cargo 1.5X150mm quill stem

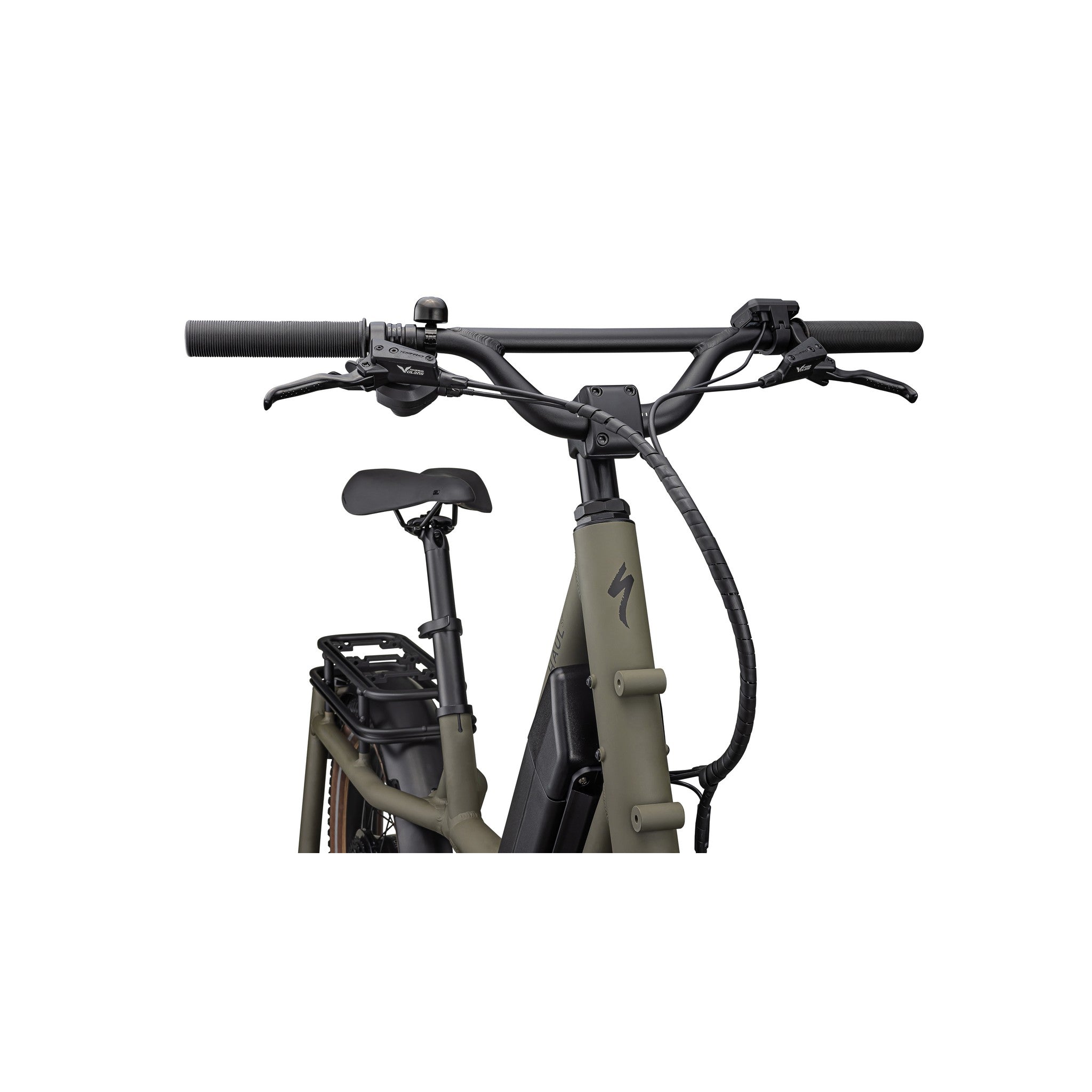

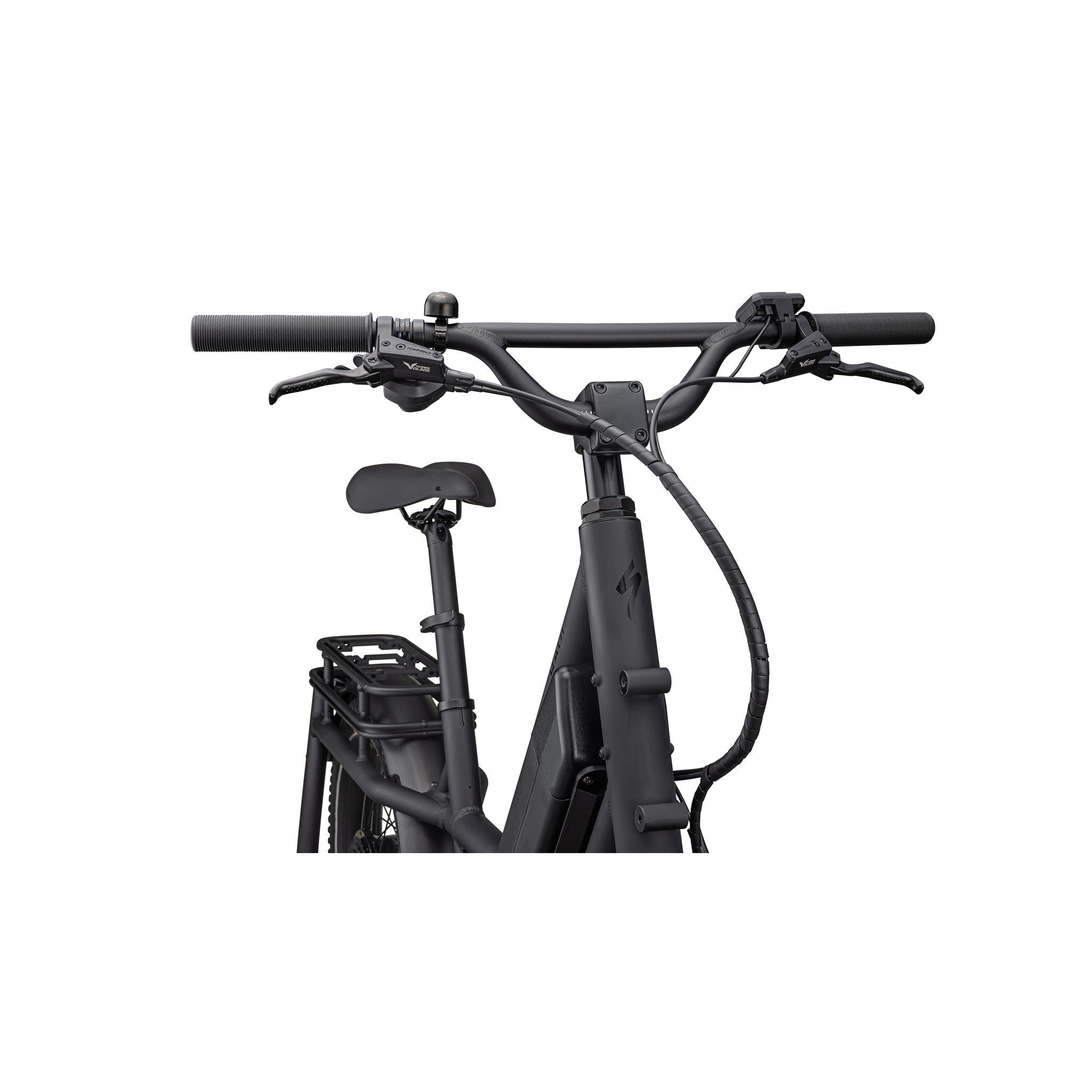

Handlebars
Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Saddle
Specialized Body Geometry Comfort Gel
SeatPost
Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
BRAKES
Rear Brake
Hydraulic disc, post-mount, 6-bolt, reach adjust, 203mm rotor
Front Brake
Hydraulic disc, post-mount, 6-bolt, reach adjust, 203mm rotor
* Specifications are subject to change without notice
Geometry
| HAUL ST | |
|---|---|
| Crank Length | 160mm |
| Handlebar Width | 700mm |
| Stem Length | 45mm |
| Saddle Width | 200mm |
| Seatpost Length | 585mm |
| Stack | 610mm |
| Reach | 345mm |
| Head-Tube Length | 292mm |
| Head-Tube Angle | 70° |
| B-B Height | 285mm |
| B-B Drop | 5mm |
| Trail | 47mm |
| Fork Length (full) | 372mm |
| Fork Rake/Offset | 55mm |
| Front-Center | 624mm |
| Chain-Stay Length | 465mm |
| Wheelbase | 1089mm |
| Top-Tube Length (horizontal) | 600mm |
| Bike Stand-Over Height | 511mm |
| Seat-Tube Length | 366mm |
| Seat-Tube Angle | 68° |
| Seat height - Max | 852mm |
| Seat height - Min | 517mm |
| Bar height form ground - Max | 1192mm |
| Bar height from ground - Min | 1051mm |
