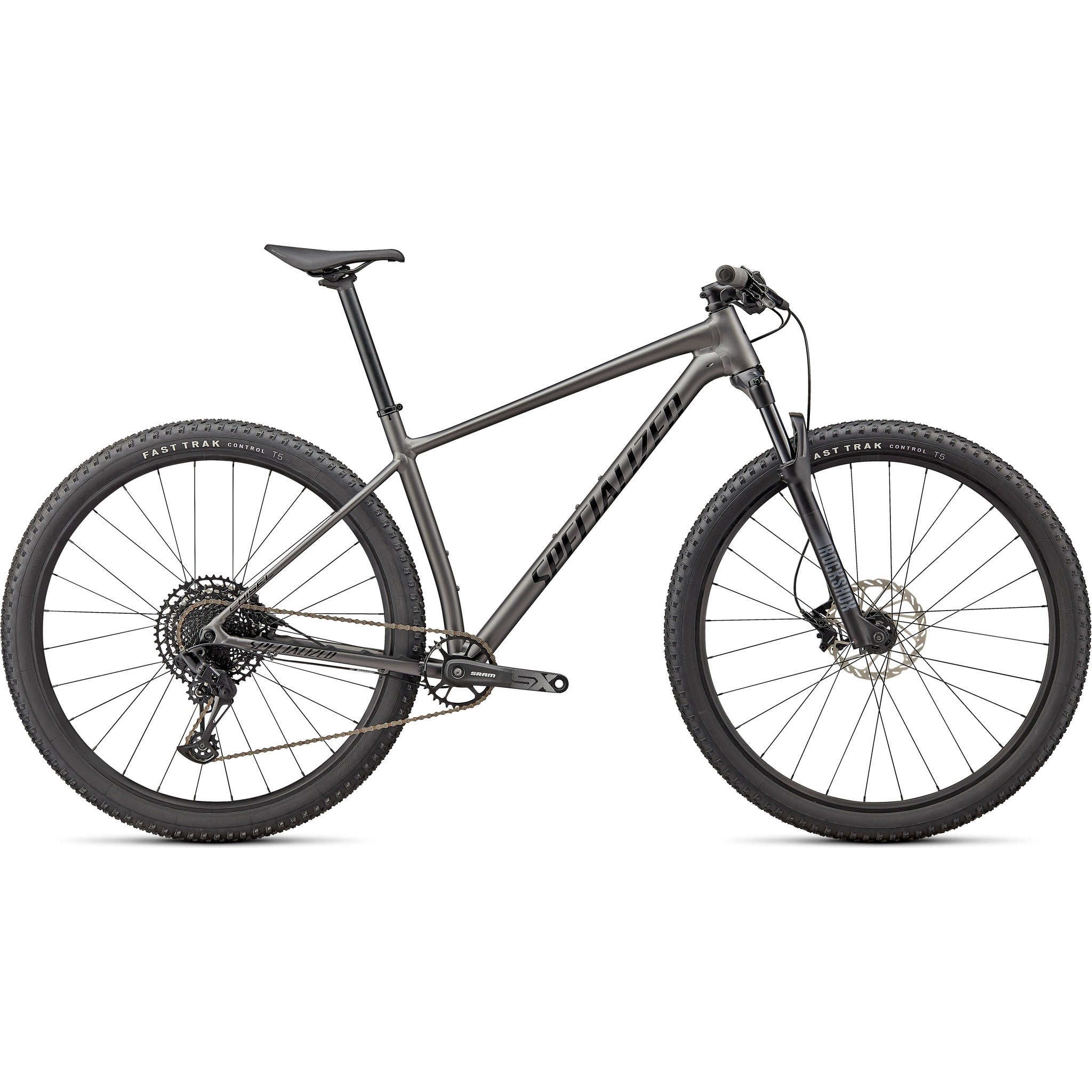

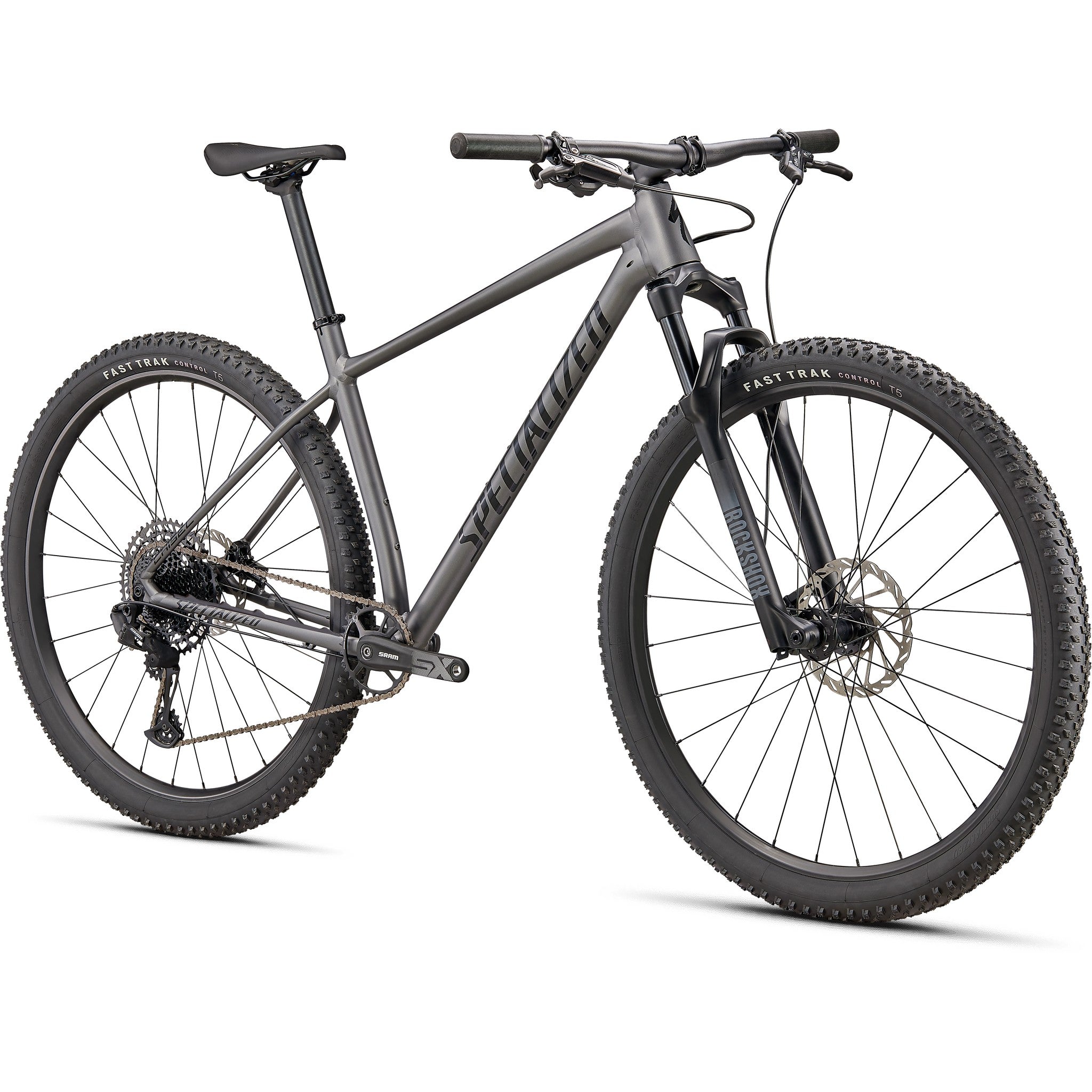

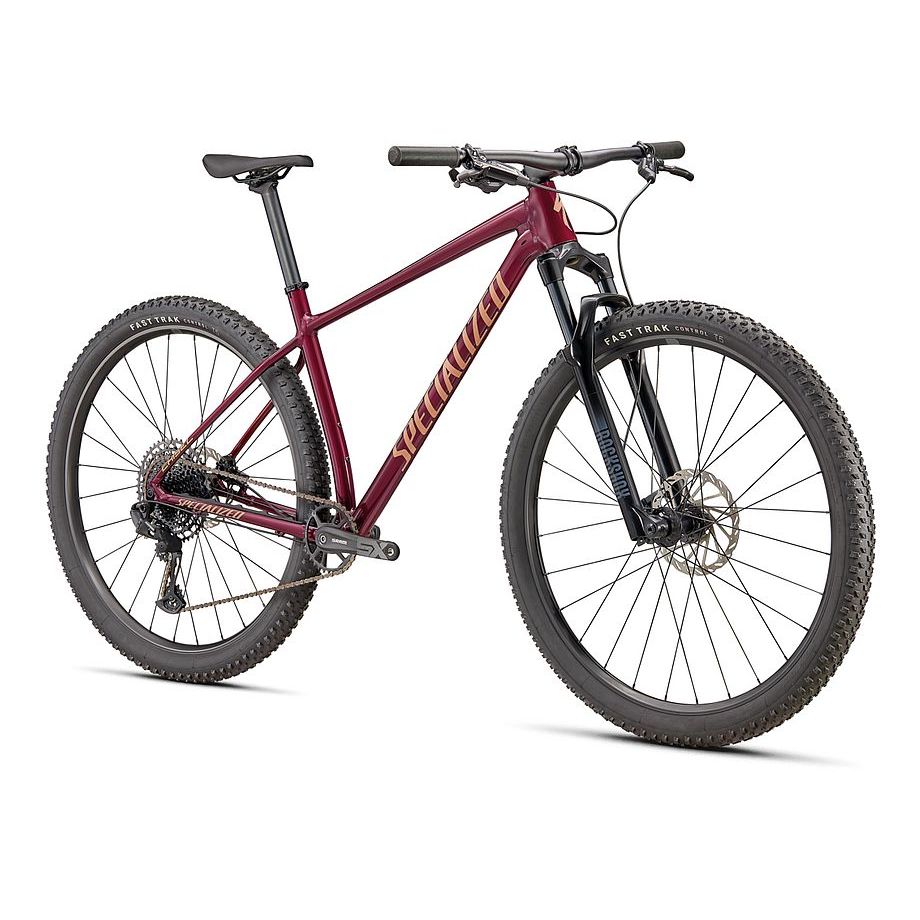

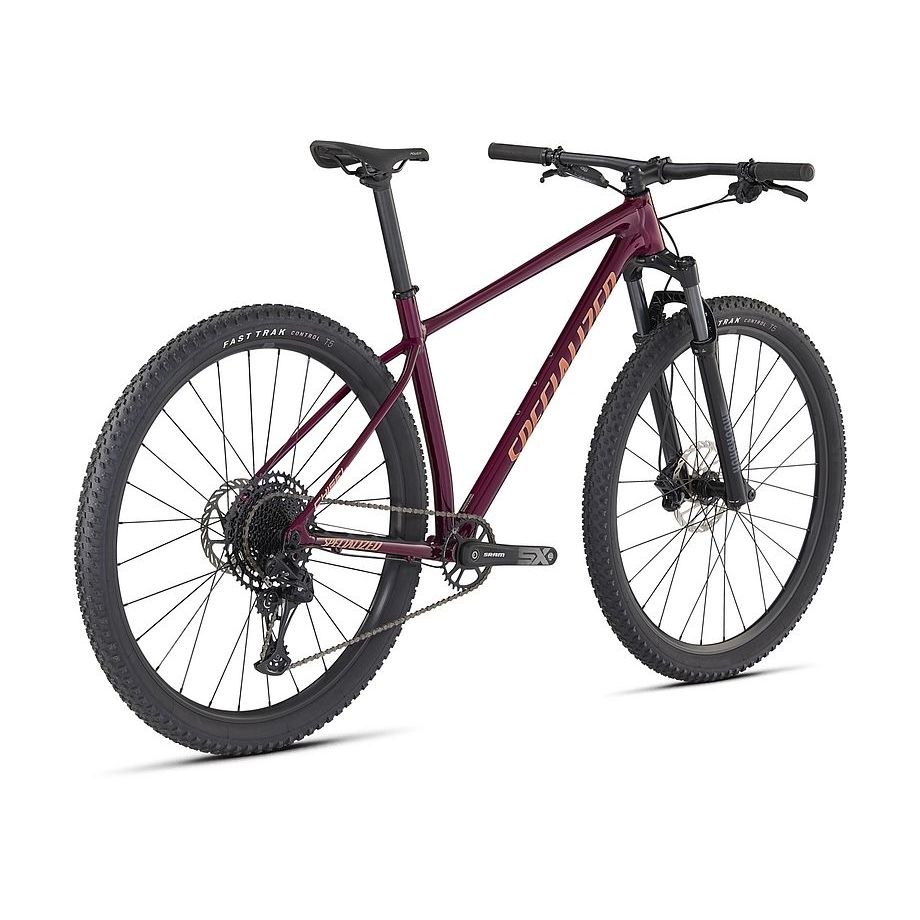

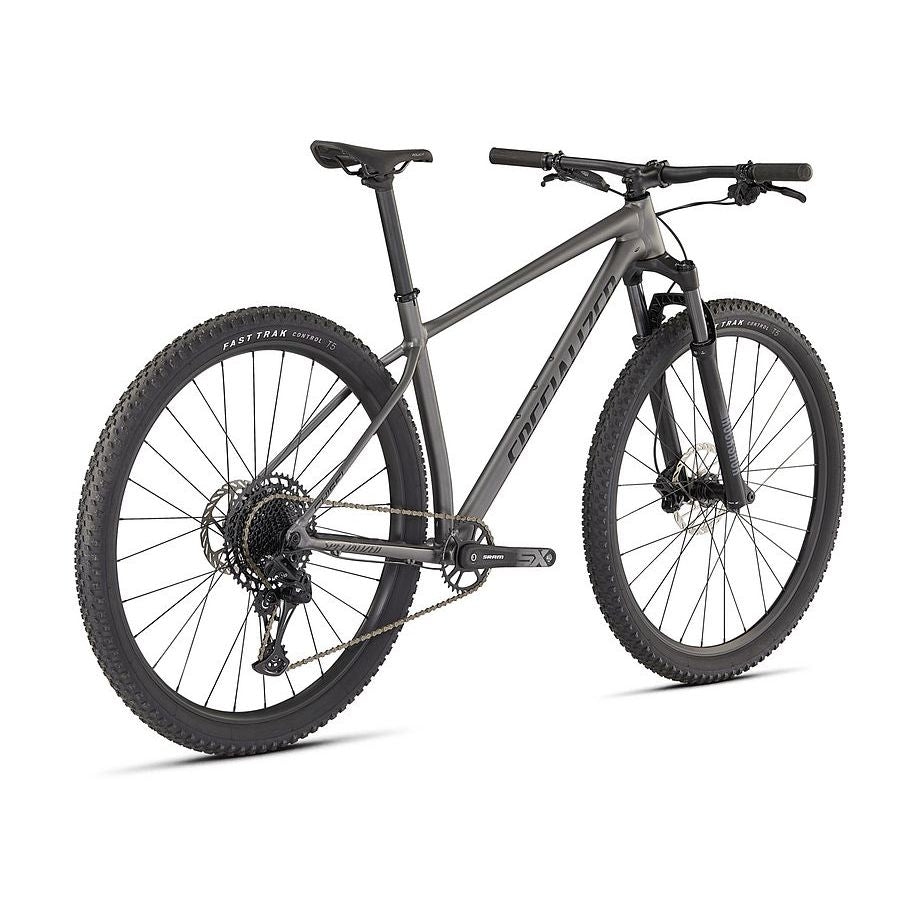

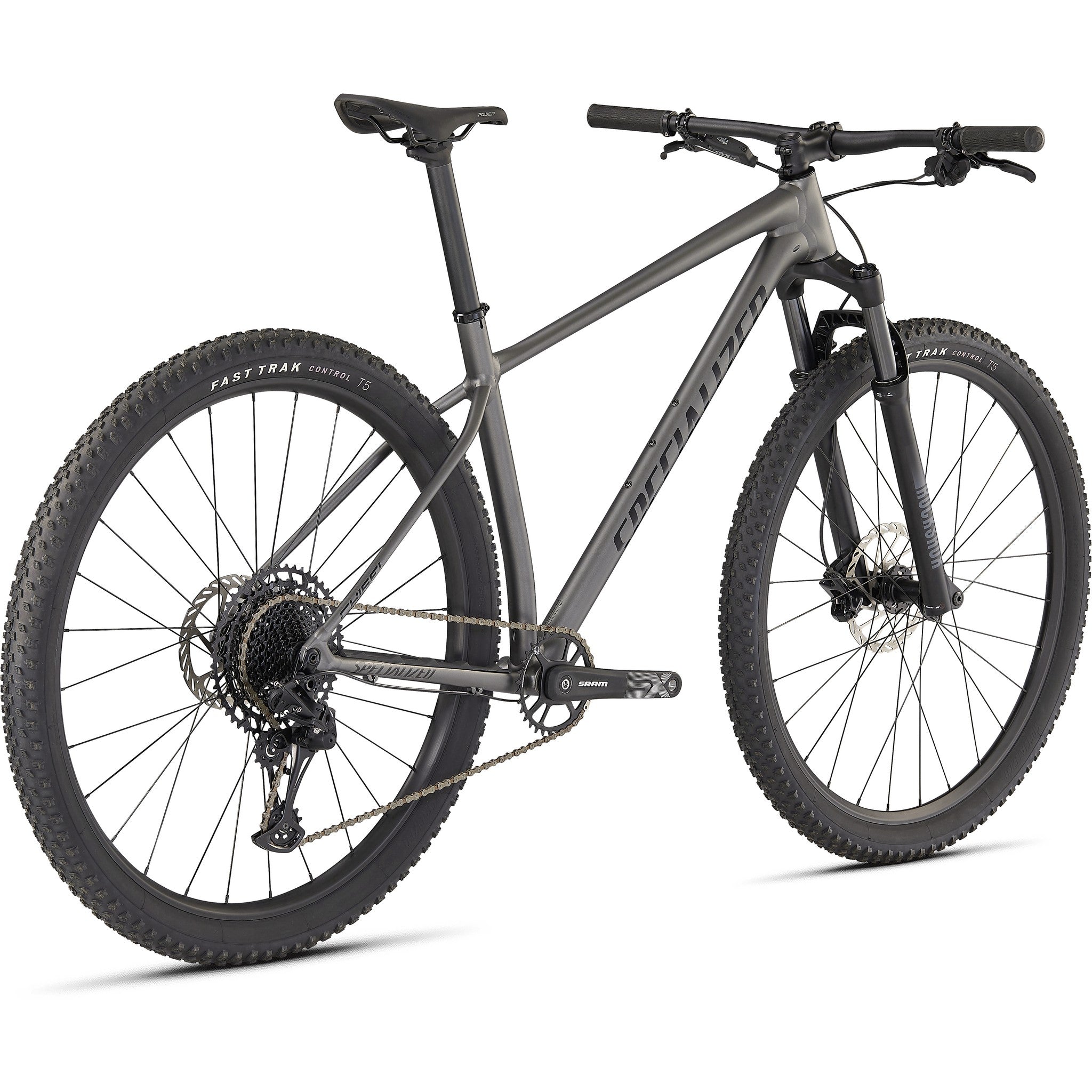

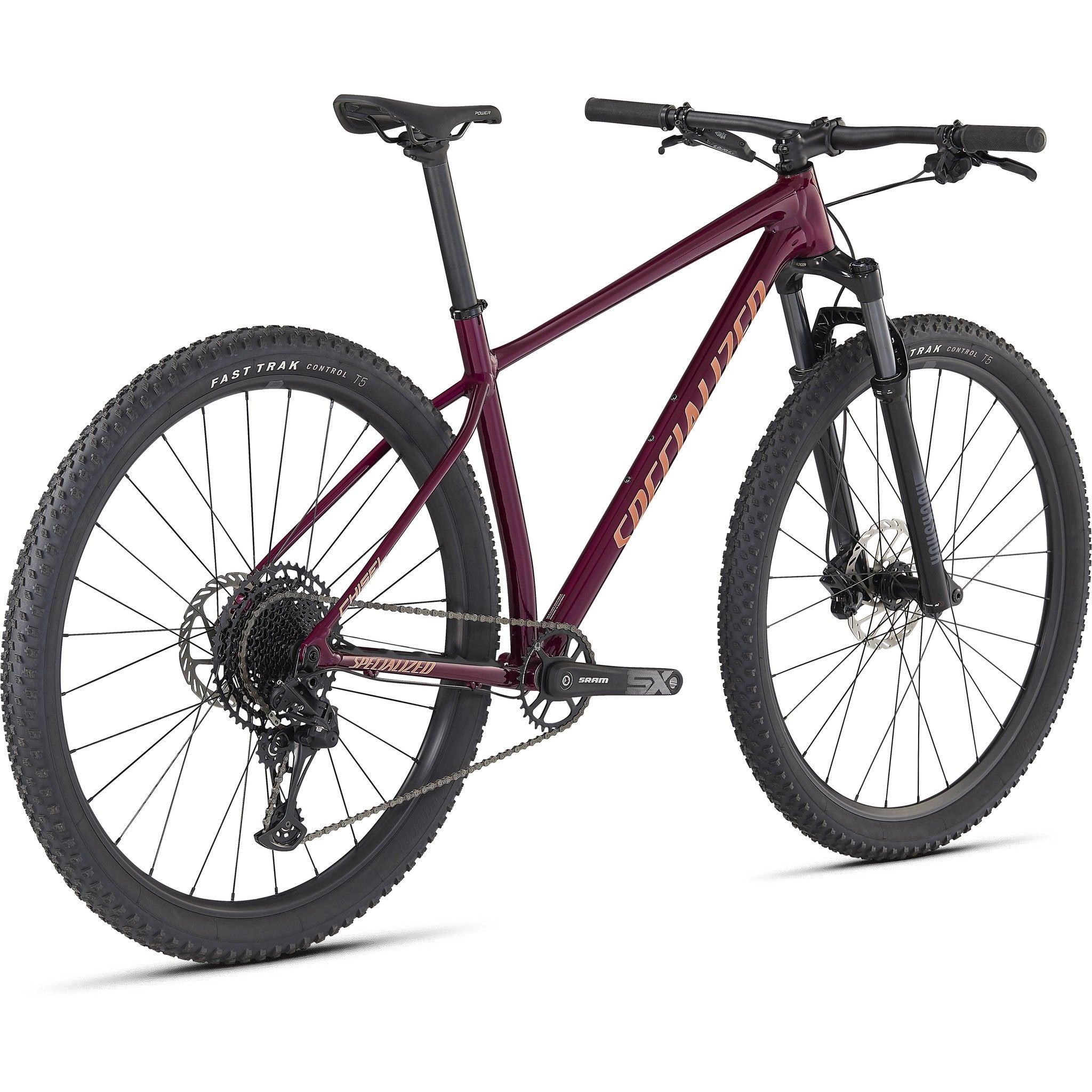

- The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames out there at 1,350g, but it also allows for tuned frame stiffness across all sizes.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Technical Specifications
FRAMESET
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy, 34.9mm
Suspension
Fork
RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
COCKPIT
Stem
3D-forged alloy, 31.8mm, 7-degree rise
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Tape
Specialized Trail Grips
Saddle
Body Geometry Power Sport, steel rails
SeatPost
Alloy, 2-bolt clamp, 30.9mm
BRAKES
Front Brake
SRAM Level T hydraulic disc, 2-Piston Caliper
Rear Brake
SRAM Level T hydraulic disc, 2-Piston Caliper
DRIVETRAIN
Rear Derailleur
SRAM SX Eagle, 12-speed
Shift Levers
SRAM SX Eagle, trigger, 12-speed
Cassette
SRAM PG-1210 Eagle, 11-50t
Chain
SRAM, SX Eagle, 12-speed
Crankset
SRAM SX Eagle, Powerspline
Bottom Bracket
SRAM Powerspline
WHEELS
Rims
Specialized Alloy, hookless, Tubeless ready, 25mm inner width
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Inner Tubes
Standard 40mm PV 29x1.75-2.4
WHEELS & TIRES
Spokes
Stainless, 14g
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 175mm | 175mm | 175mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 60mm | 70mm | 70mm | 70mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm |
| Stack | 591mm | 605mm | 605mm | 619mm | 633mm |
| Reach | 385mm | 405mm | 430mm | 455mm | 480mm |
| Head Tube Length | 95mm | 95mm | 95mm | 110mm | 125mm |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| BB Height | 304mm | 309mm | 309mm | 309mm | 309mm |
| BB Drop | 68mm | 63mm | 63mm | 63mm | 63mm |
| Trail | 103mm | 103mm | 103mm | 103mm | 103mm |
| Fork Length, Full | 486mm | 506mm | 506mm | 506mm | 506mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 647mm | 674mm | 699mm | 730mm | 760mm |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1070mm | 1099mm | 1124mm | 1154mm | 1185mm |
| Top Tube Length, Horizontal | 555mm | 578mm | 603mm | 632mm | 661mm |
| Bike Standover Height | 732mm | 762mm | 792mm | 816mm | 847mm |
| Seat Tube Length | 367mm | 400mm | 430mm | 470mm | 520mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
