Specialized Chisel HT LTD Pro - Purple Rain SBS Custom Build 003 - Size M - SRAM GX Eagle DUB w/Fox Dropper
Pickup available at Sierra Bicycle Supply
Usually ready in 4 hours
Loading specifications...
Error loading specifications
This is the third bike in our new Sierra Bicycle Supply Custom Build Series — a celebration of cool, fun builds that ride as good as they look. Builder Nate Troyer designed this one as a straight-forward, budget-friendly, lightweight XC Racer with BIG brakes, a dropper, and without batteries!

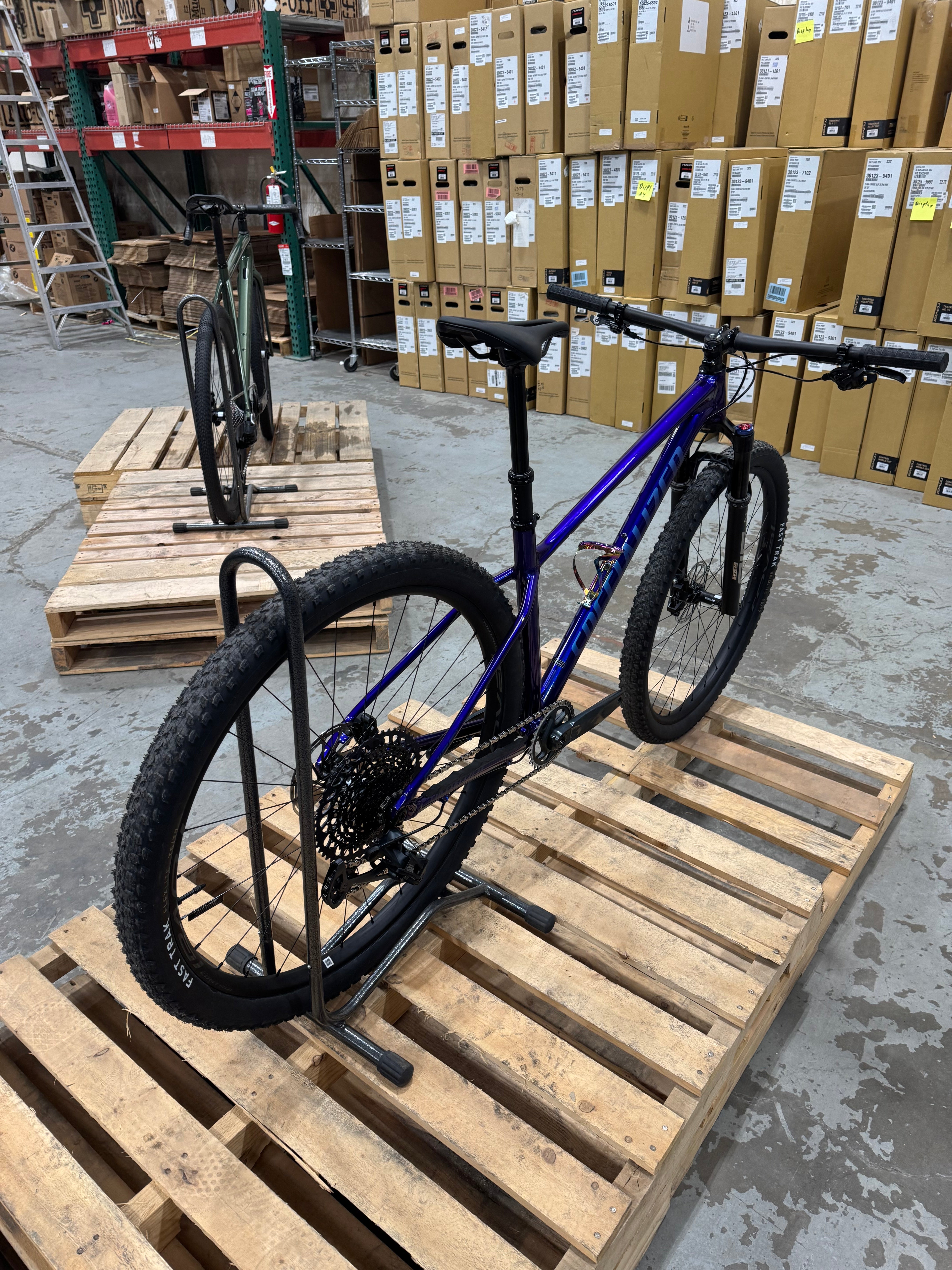

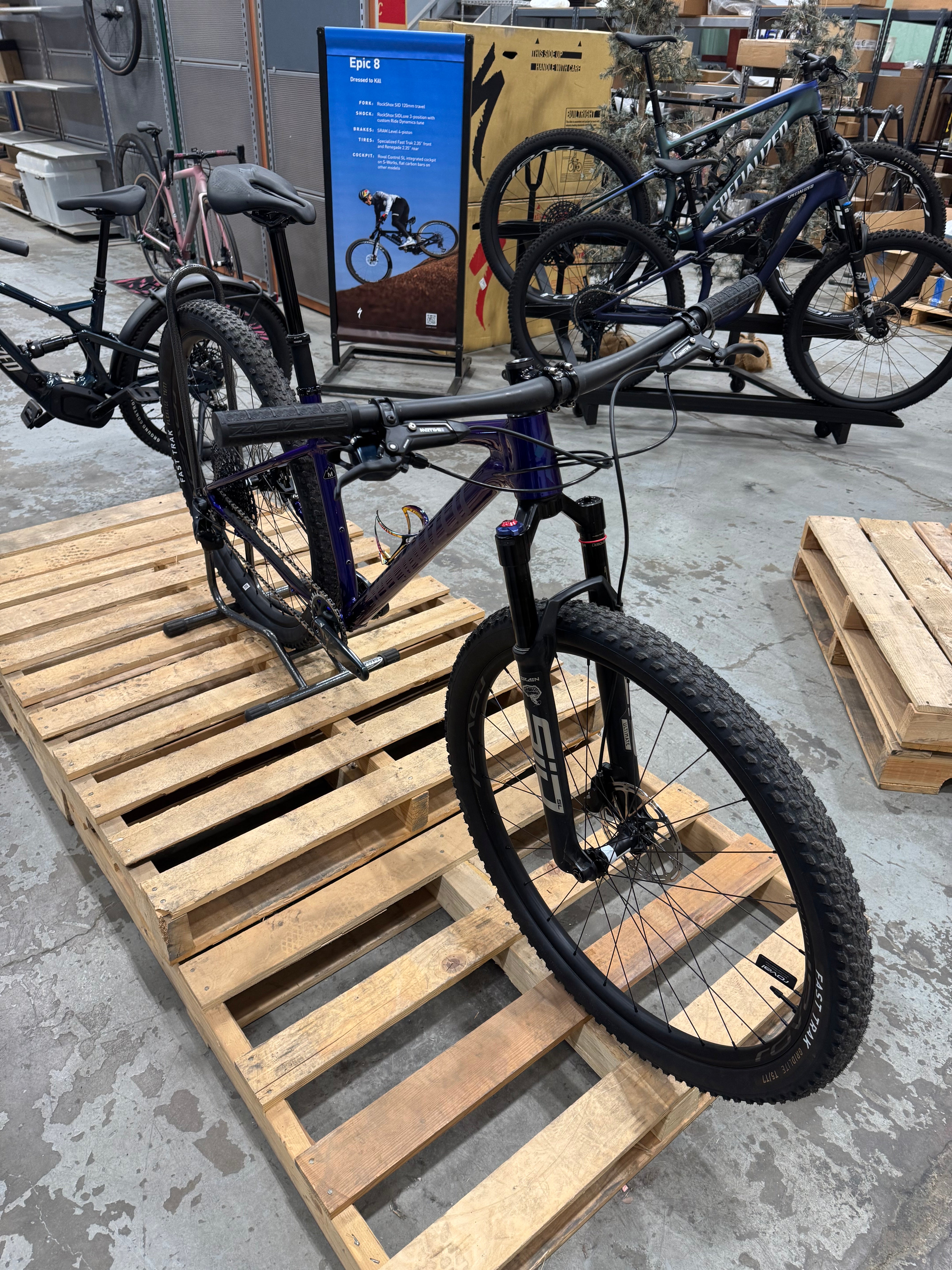

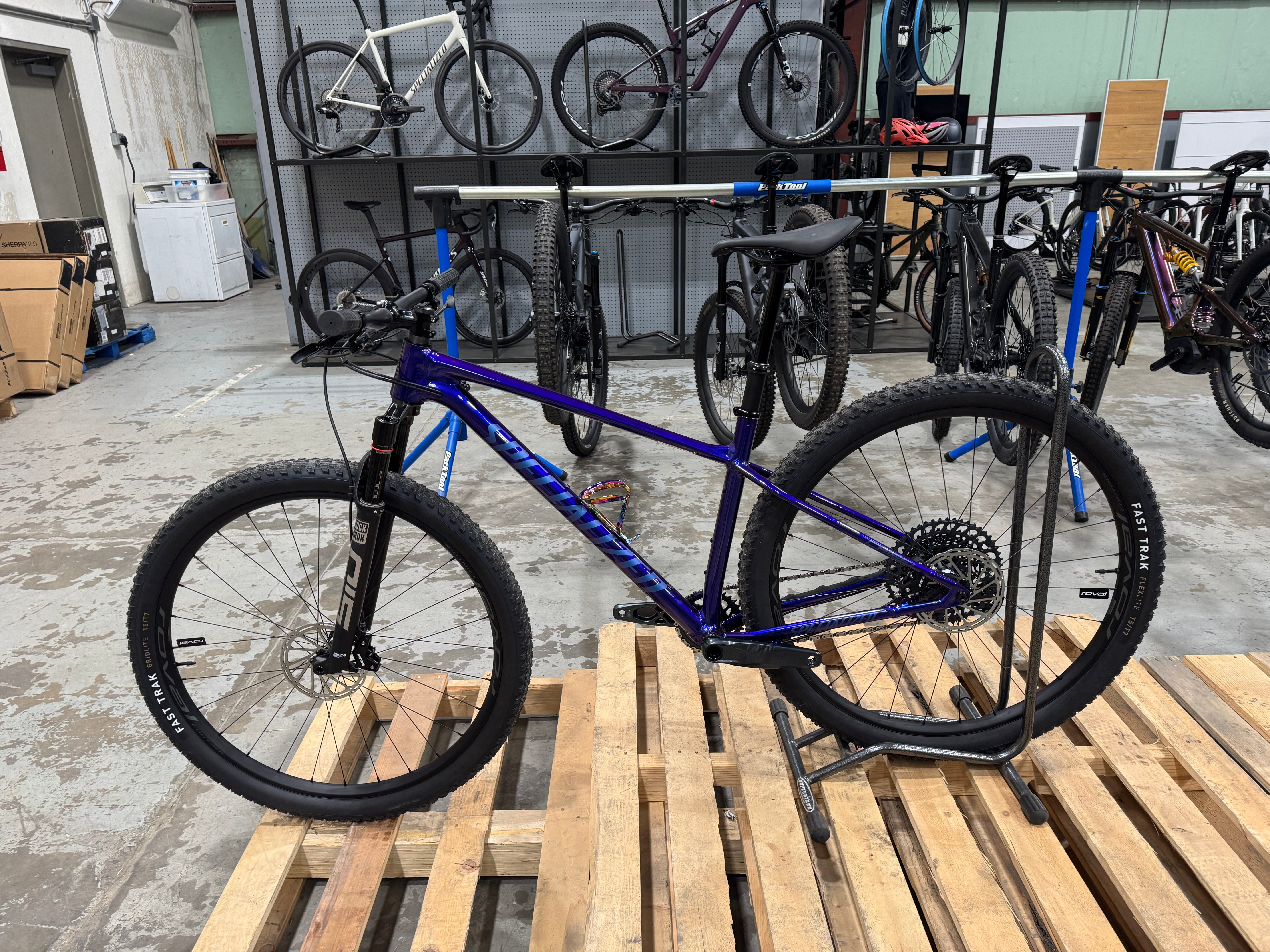

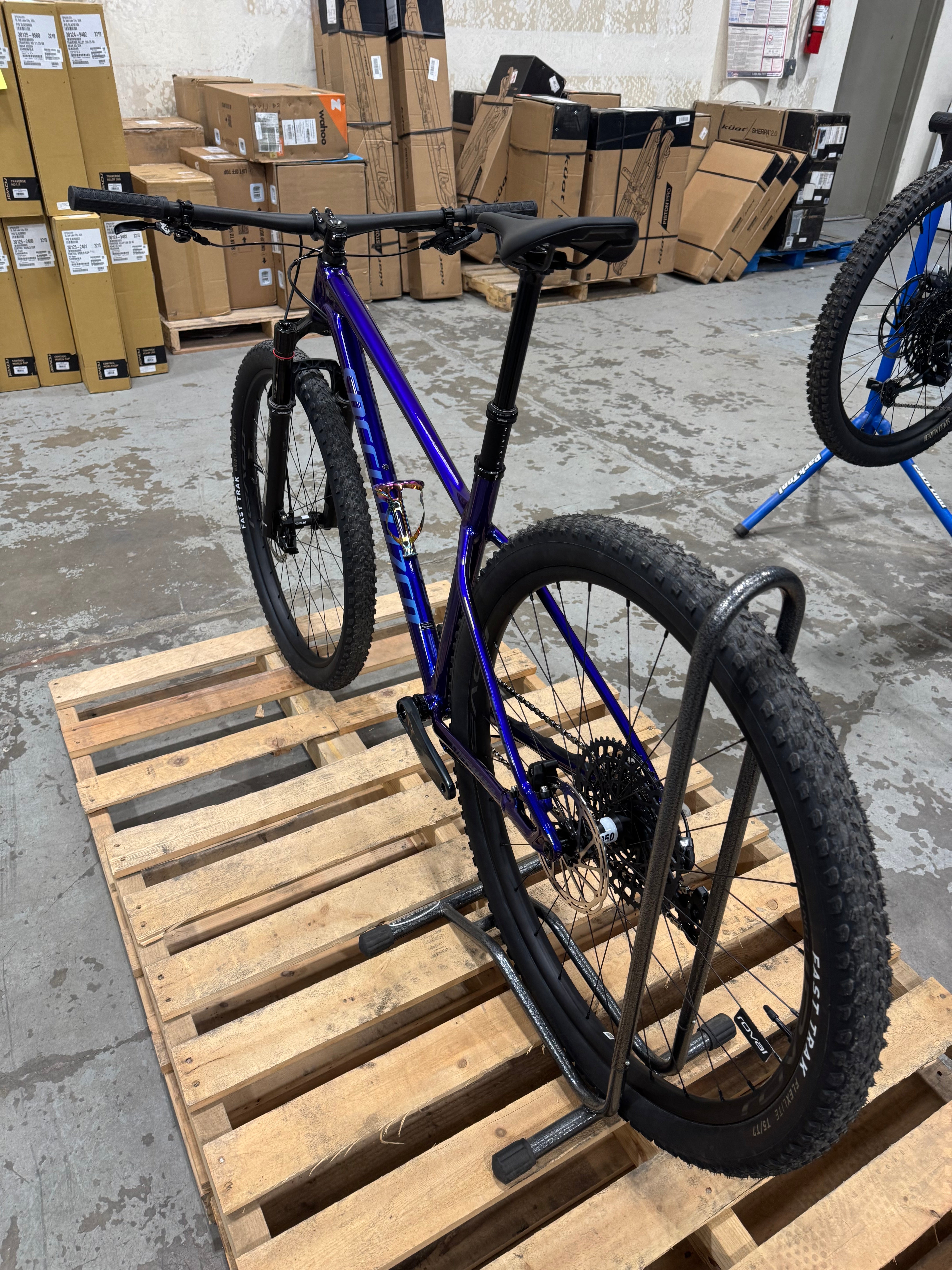

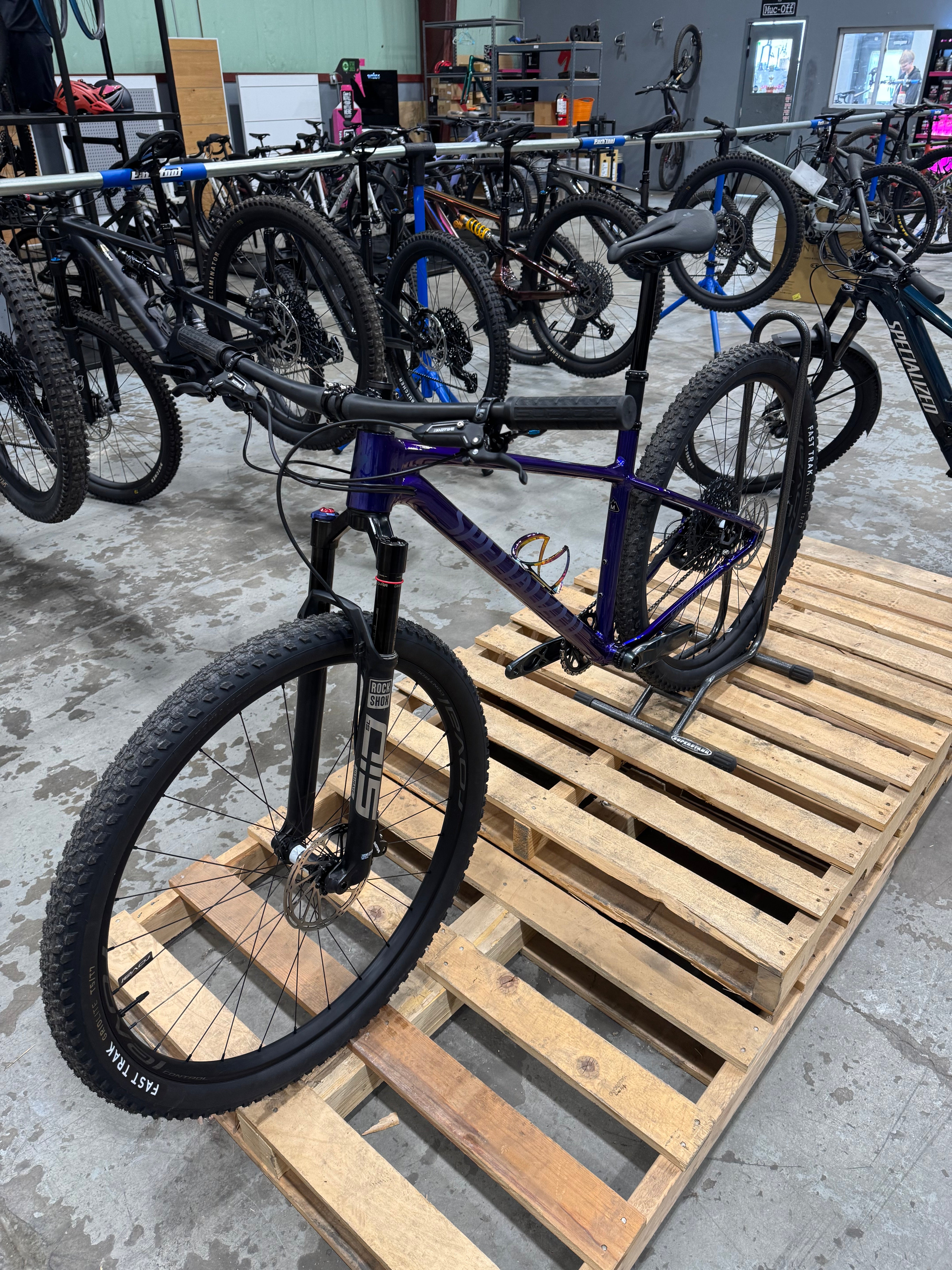

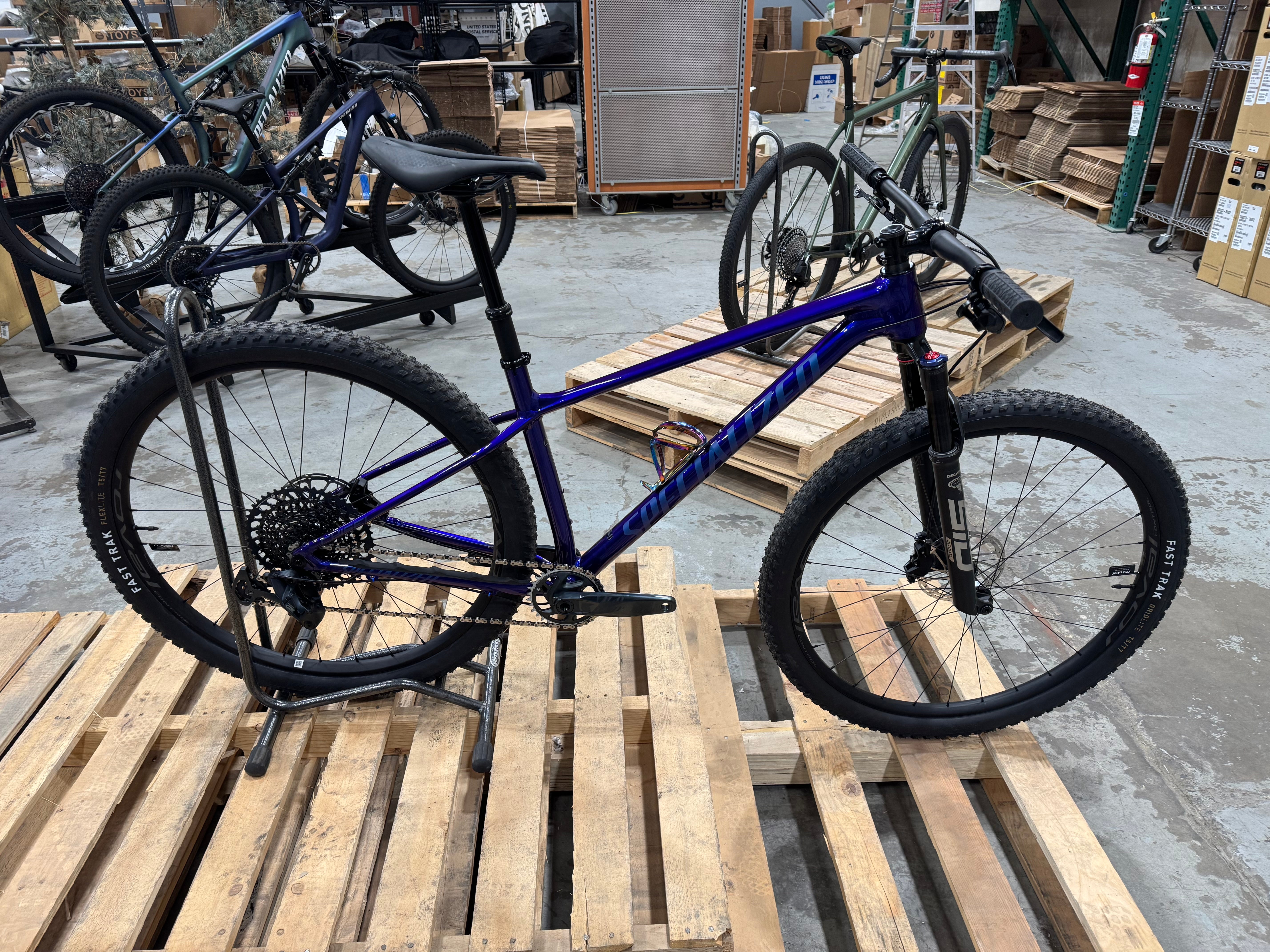

The Purple Rain Size Medium chassis is a Specialized Chisel HT Limited Edition in Gloss Purple Tint Over Chameleon. This speedster weighs in at 23.5 lbs.
The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.
Technical Specifications
Frameset
-

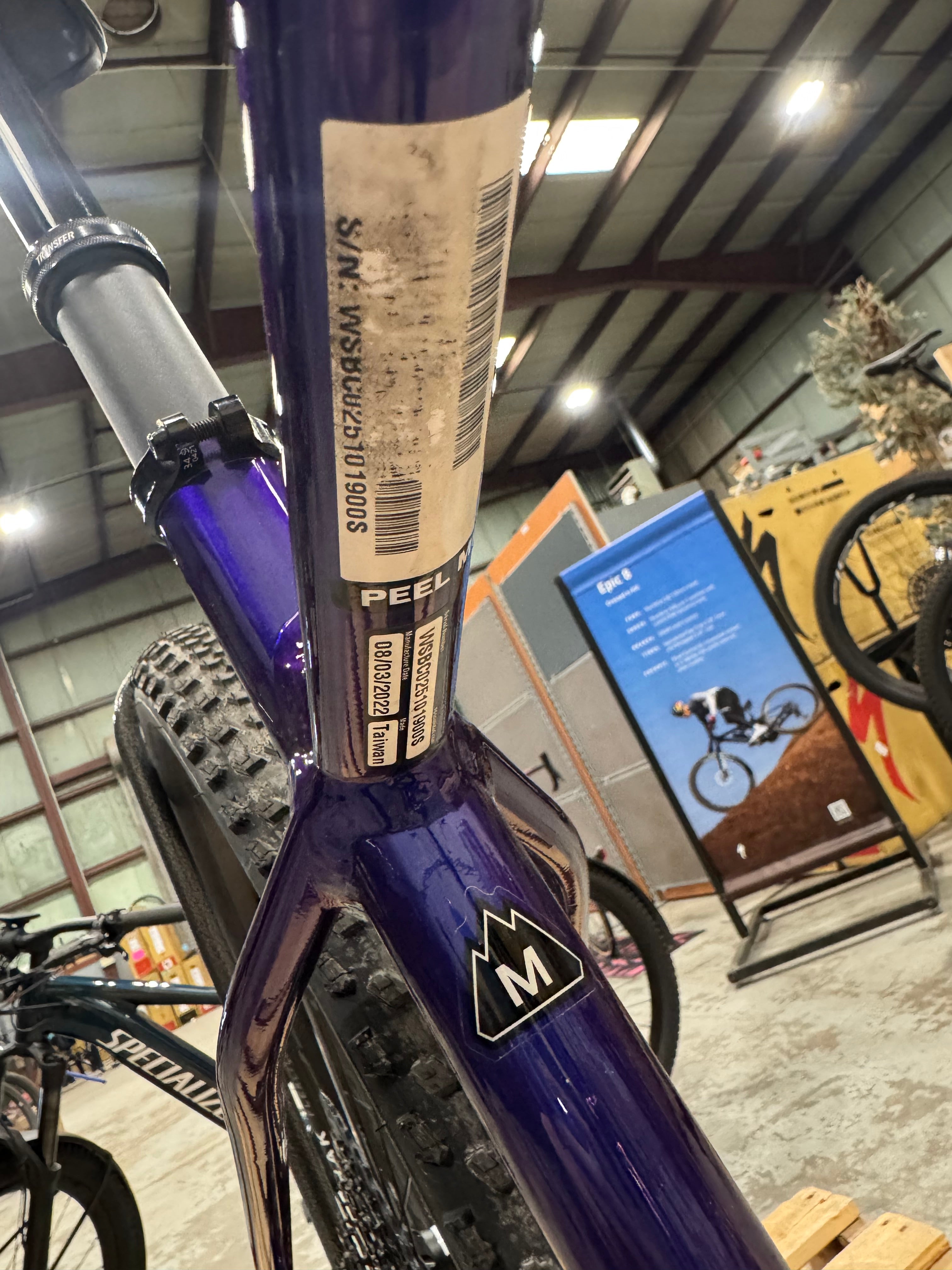

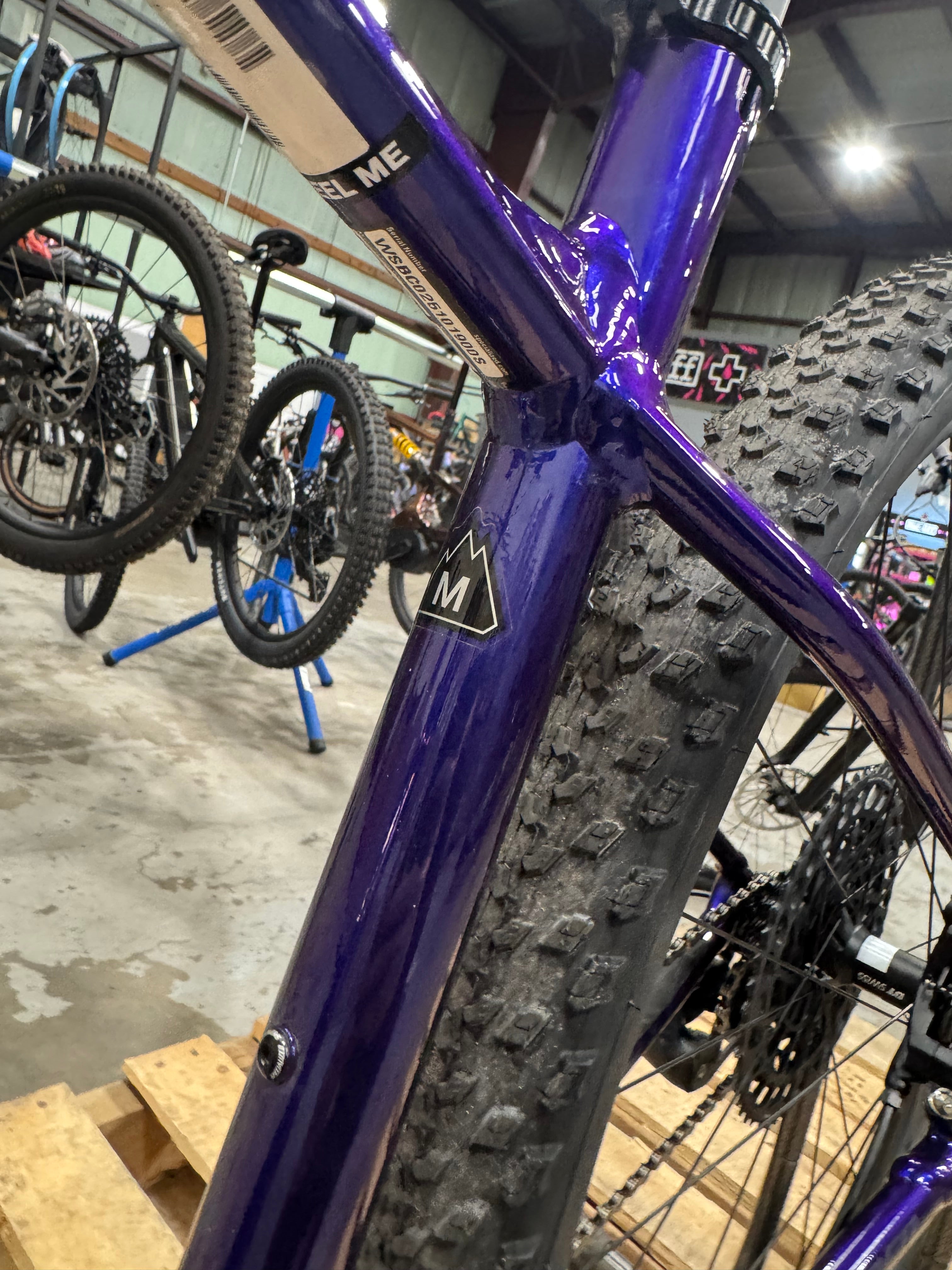

Frame: Size Medium, Specialized D’Aluisio Smartweld M5 Alloy, hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm dropper post compatible
-
Seat Binder: Specialized Alloy, 34.9mm
Suspension
-

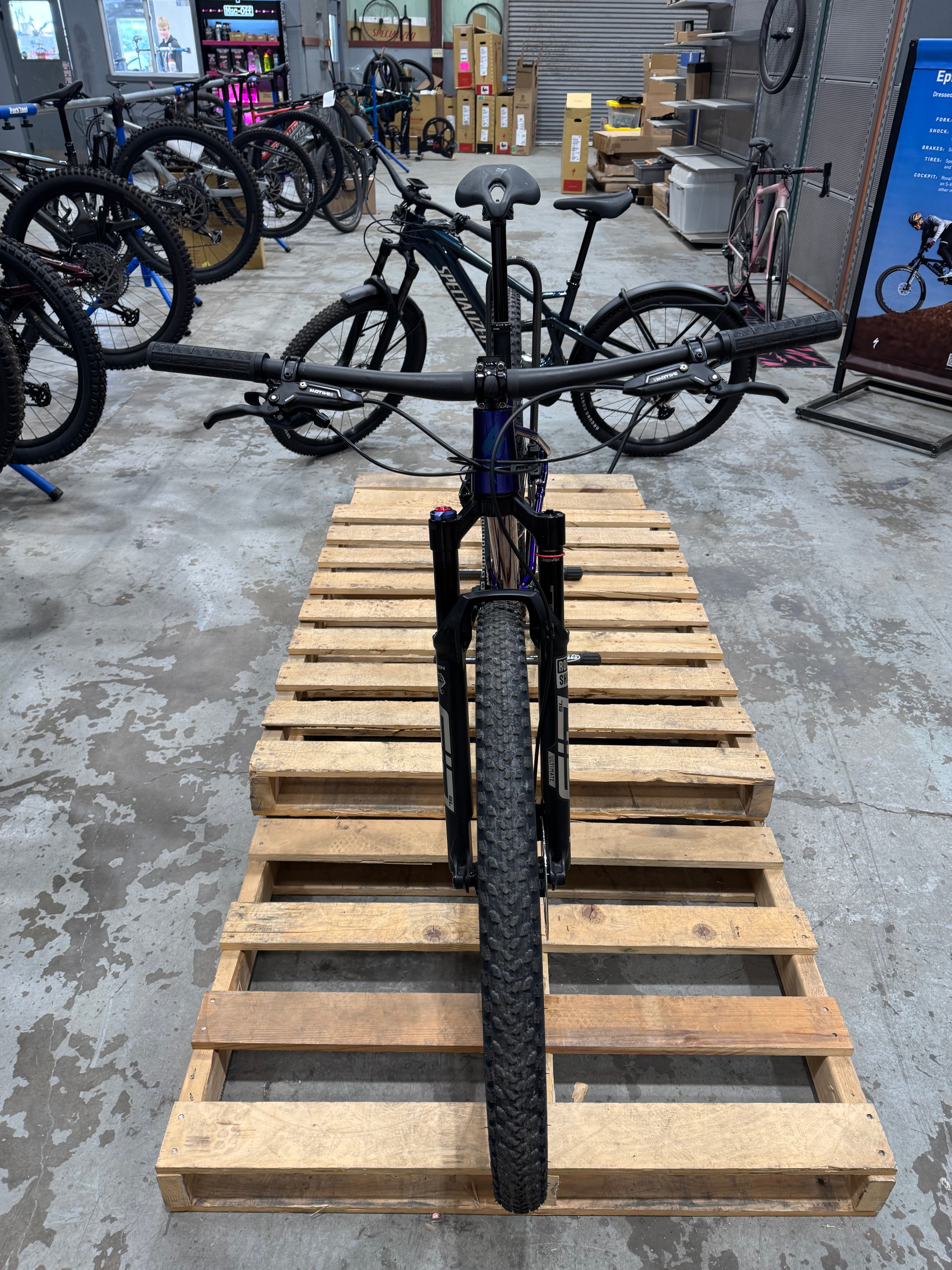

Fork: RockShox SID SL Ultimate BRAIN
The RockShox SID SL Ultimate BRAIN incorporates a race-tuned Brain Inertia Valve with Position-Sensitive technology into the all-new SID SL chassis.-
New Position-Sensitive Brain technology provides more platform support while maintaining small bump compliance and chassis balance, making this the most efficient BRAIN yet.
-
Position-Sensitive technology allows riders to sag into the fork 15mm for a balanced ride, providing supple small bump compliance and a firm pedaling platform without the need for a remote lockout or levers.
-
All-new SID SL Ultimate chassis features a machined alloy crown to shed weight while increasing stiffness.
-
Torque cap compatible for a stiffer dropout/hub interface.
-
100mm travel, 44mm offset, 110x15mm hub spacing.
-
Brakes
-

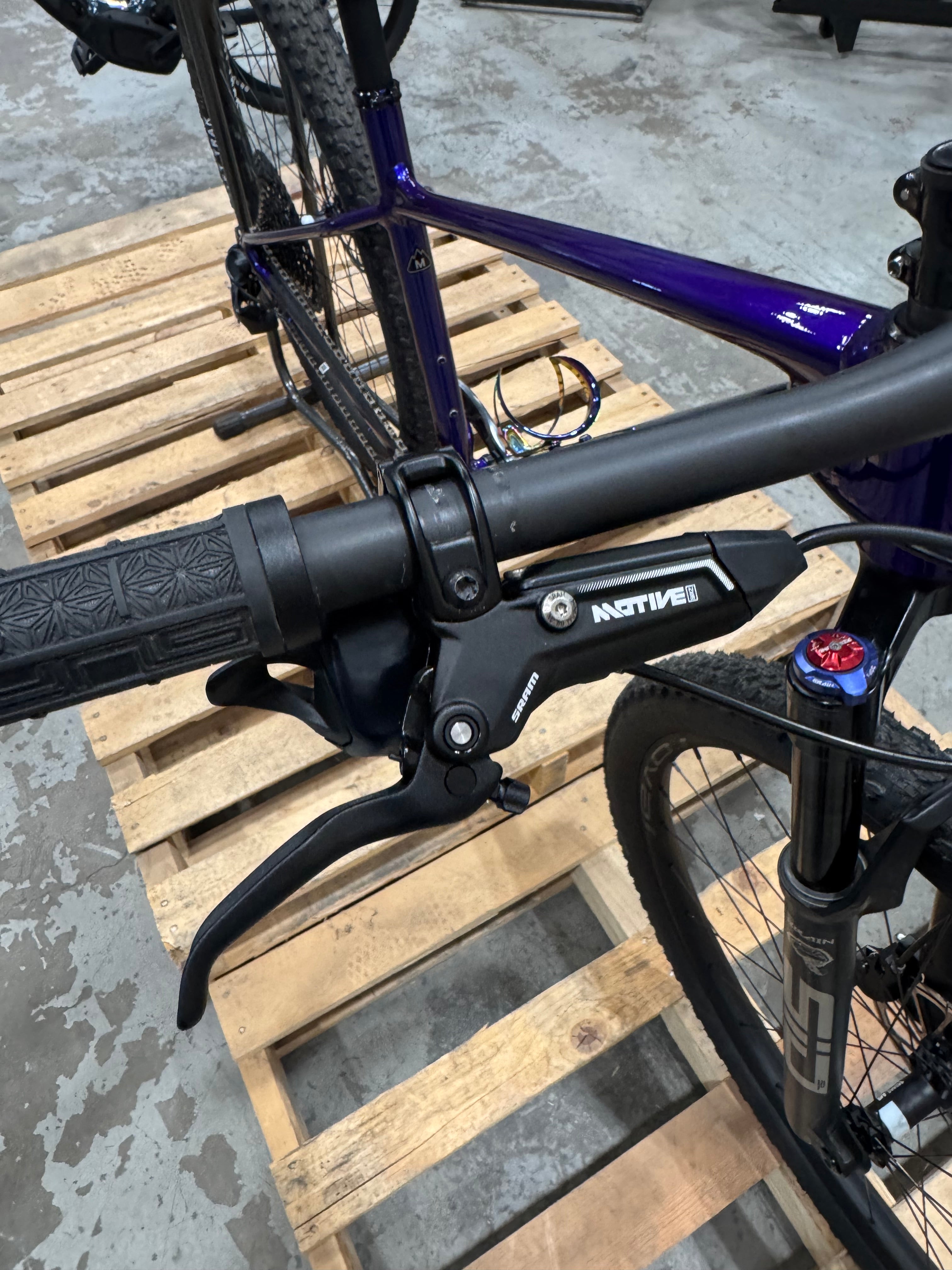

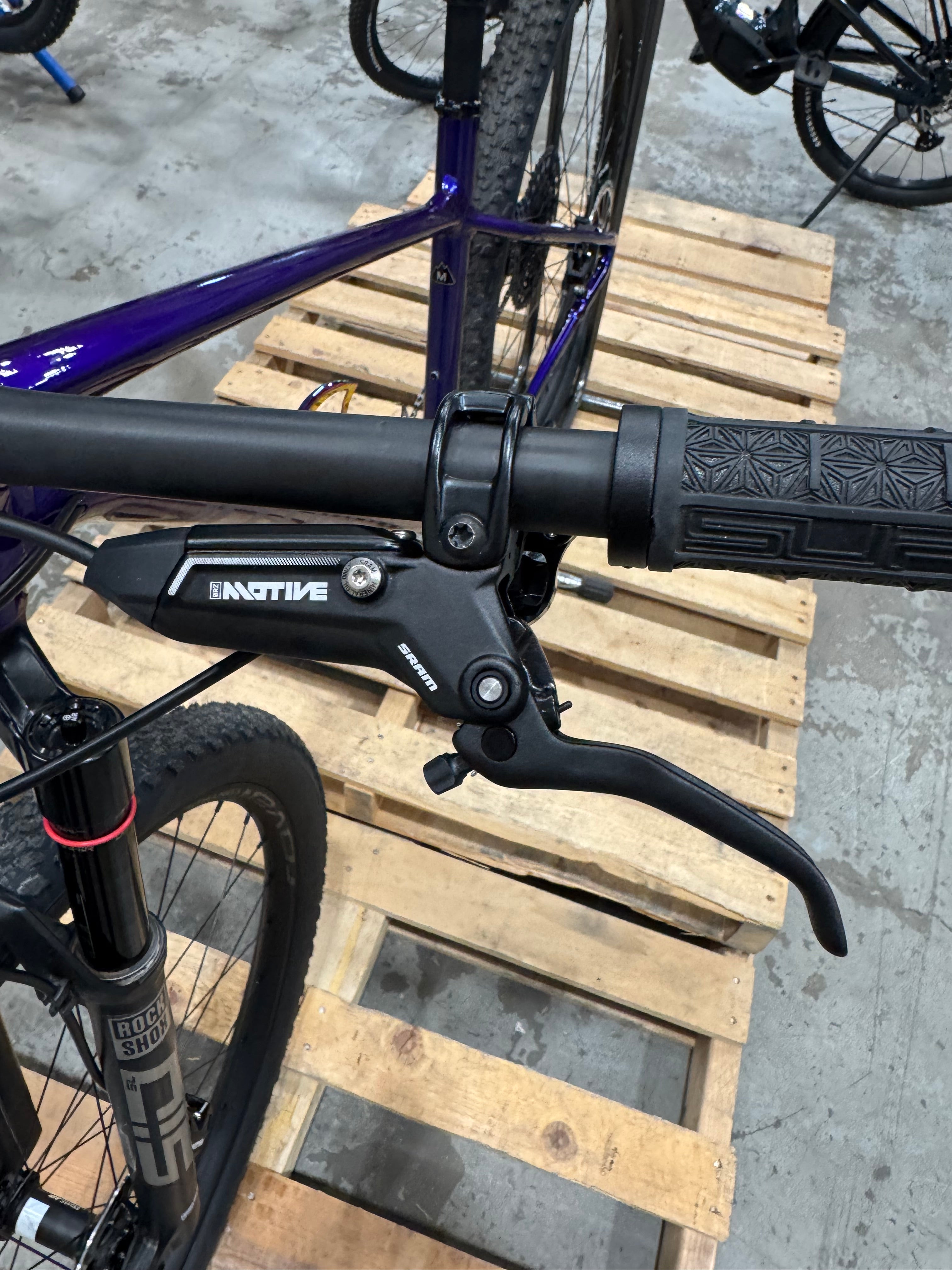

Front Brake: SRAM Motive Bronze Disc Brake and Lever, 950mm hose, post mount, 4-piston, aluminum lever, Diffusion Black, A1; 160mm Centerline Rotor.
-
Rear Brake: SRAM Motive Bronze Disc Brake and Lever, 950mm hose, post mount, 4-piston, aluminum lever, Diffusion Black, A1; 160mm Centerline Rotor.
Drivetrain
-
Shift Levers: SRAM GX Eagle, DUB trigger, 12-speed
-
Rear Derailleur: SRAM GX Eagle, 12-speed
-

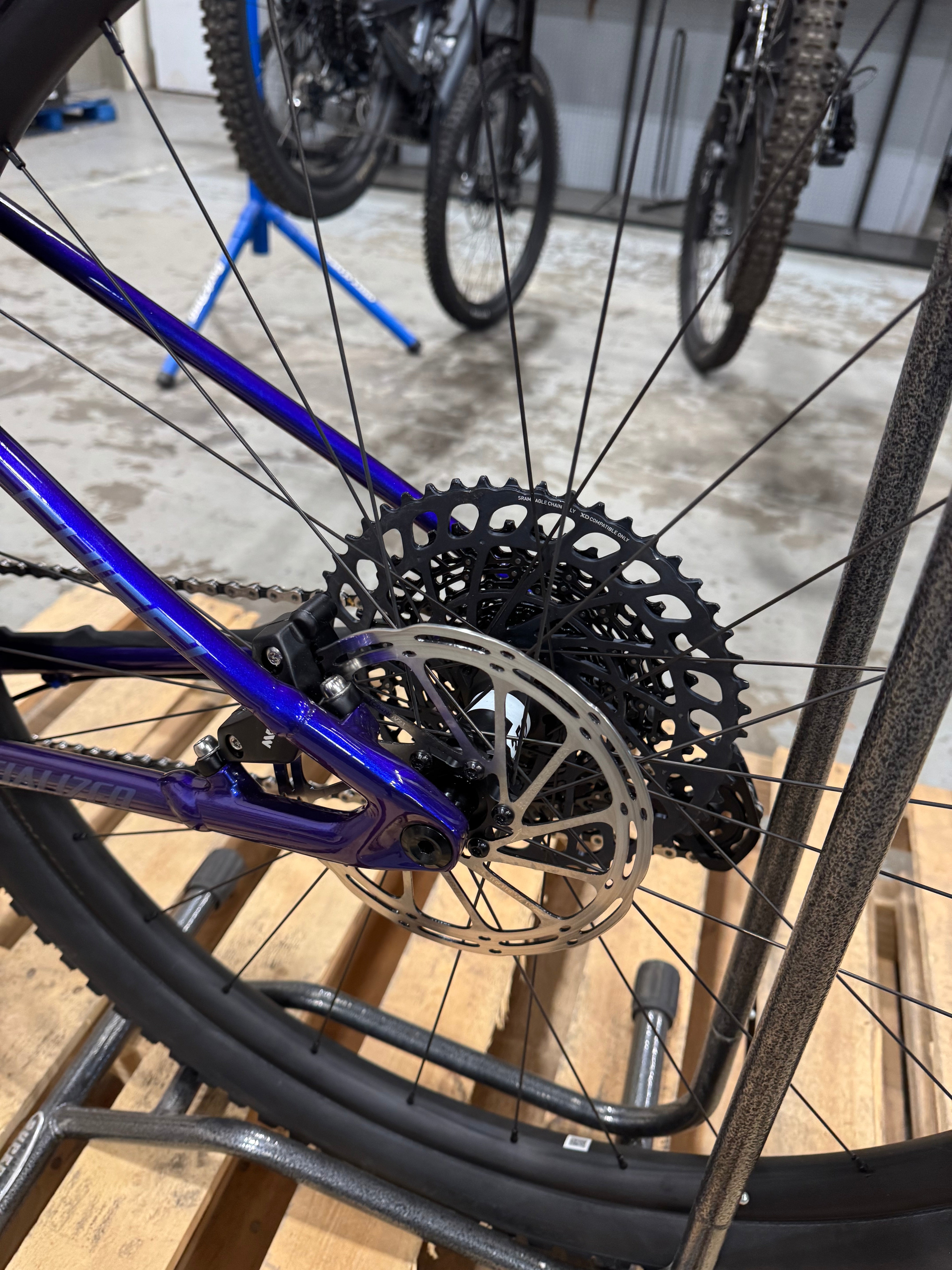

Cassette: SRAM GX Eagle XG-1275, 12-speed, 10–52T
-
Chain: SRAM Eagle, 126 links, 12-speed
-

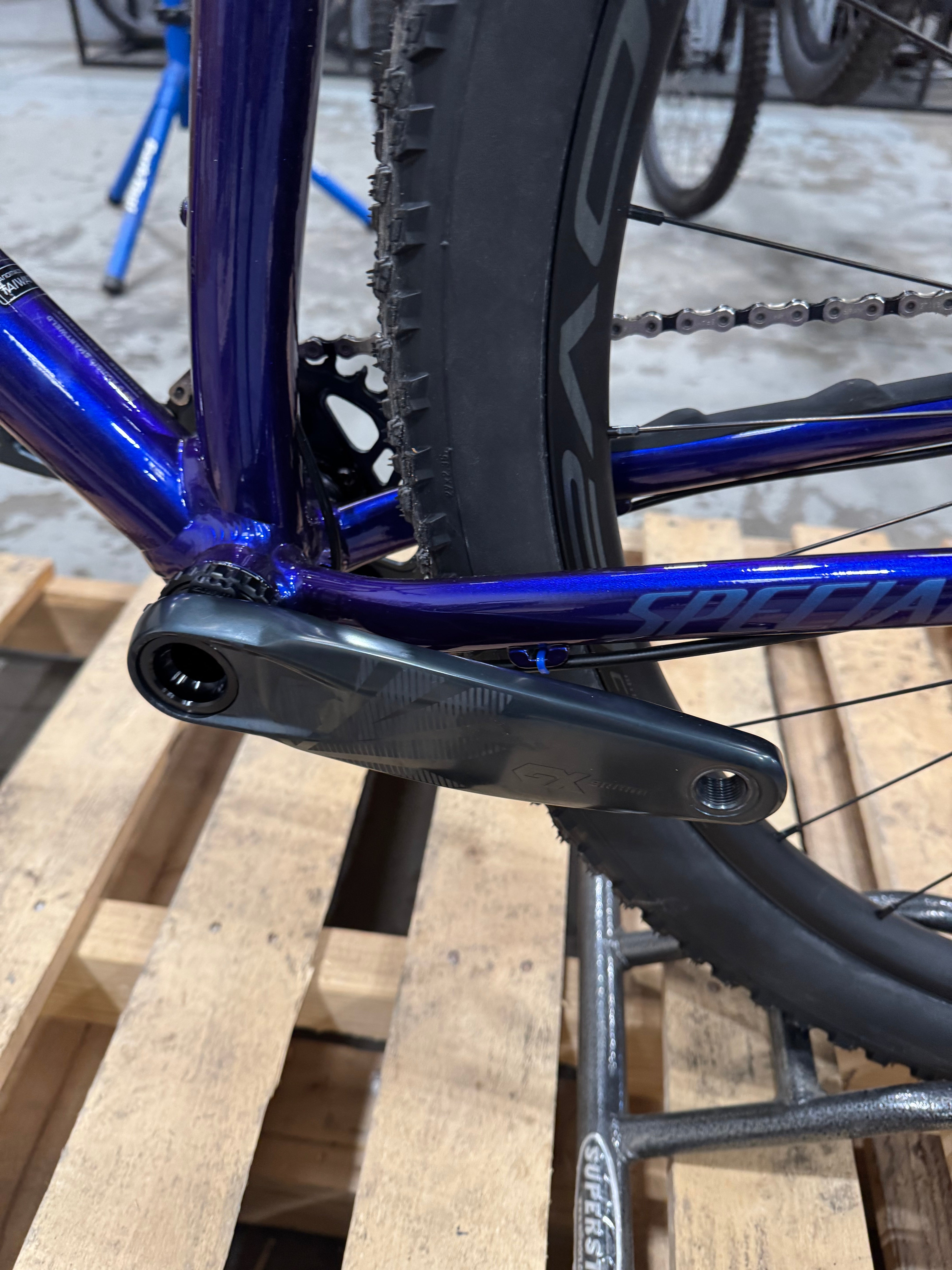

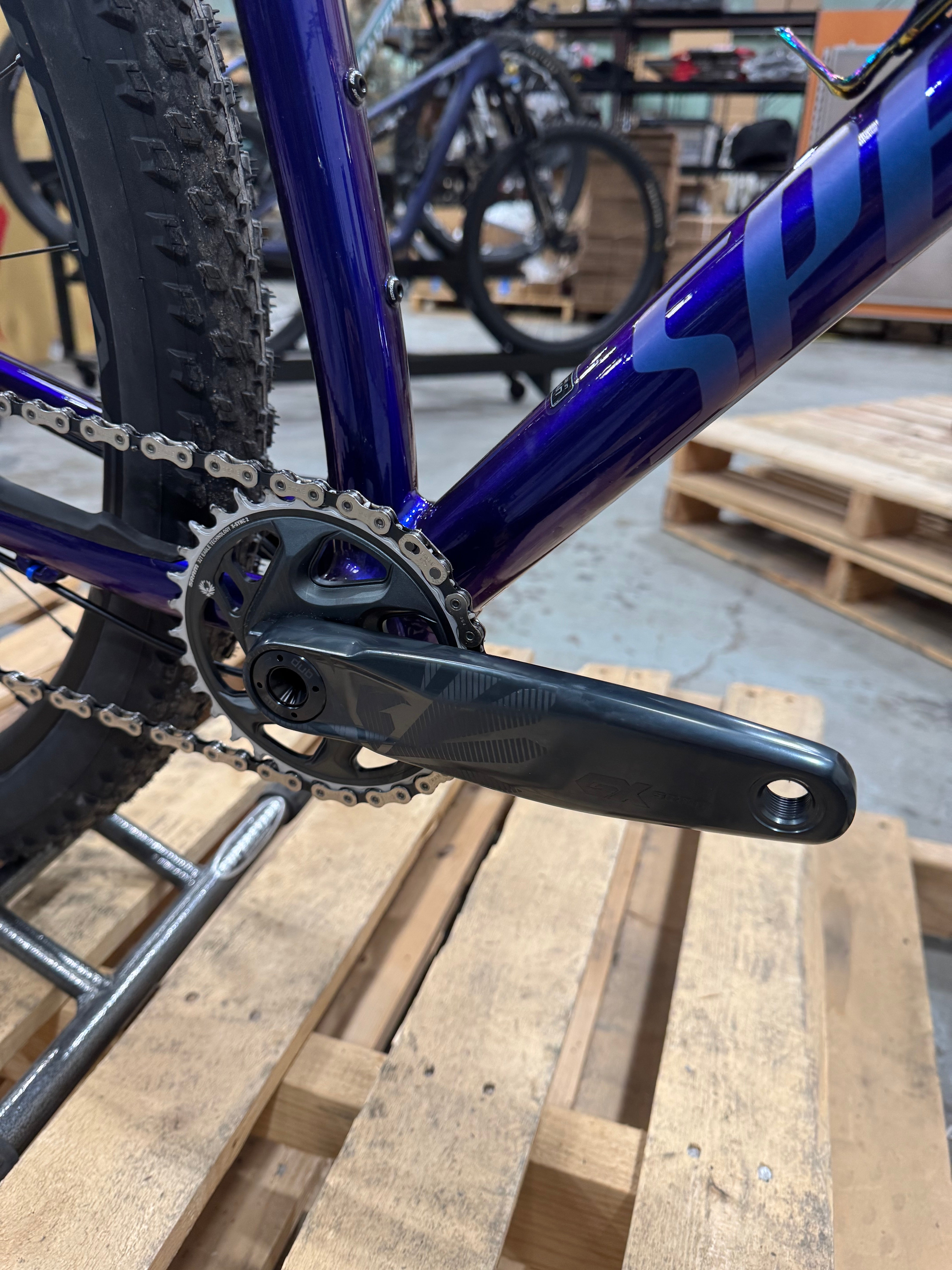

Crankset: SRAM GX Eagle, DUB, 170mm
-
Chainring: 32T
-
Bottom Bracket: SRAM DUB, BSA 73mm, threaded
Wheels & Tires
-
Rims: Control Alloy Asymmetric, 6013 alloy shot-peened, 29", disc brake, zero bead hook design, tubeless compatible, tire insert compatible
-
Details: 19mm depth, 31mm external width, 27mm internal width
-
-
Hubs: DT Swiss 350 straight-pull 6-bolt, Star Ratchet 36t internals (10° engagement), 110x15mm & 148x12mm spacing, SRAM XD freehub (convertible)
-
Bearings: DT Swiss sealed steel cartridge bearings
-
Spokes: Sapim D-Light straight-pull, front and rear two-cross (1:1), 28 count
-
Nipples: Sapim Secure Lock double square alloy, black, 2.0 x 18mm, 16cNm
-
Tire Size Range: 1.9"–2.6"
-
Wheelset Weight: 1,648g (Front 768g, Rear 880g, excluding rim tape/valves)
-
Assembly: Hand-built
-
Extras: Roval tubeless rim tape & valve, spare spoke/nipple kit, 19 & 31mm OD endcaps
-
Warranty: Lifetime
-
System Weight Limit: 275 lbs / 125 kg
-

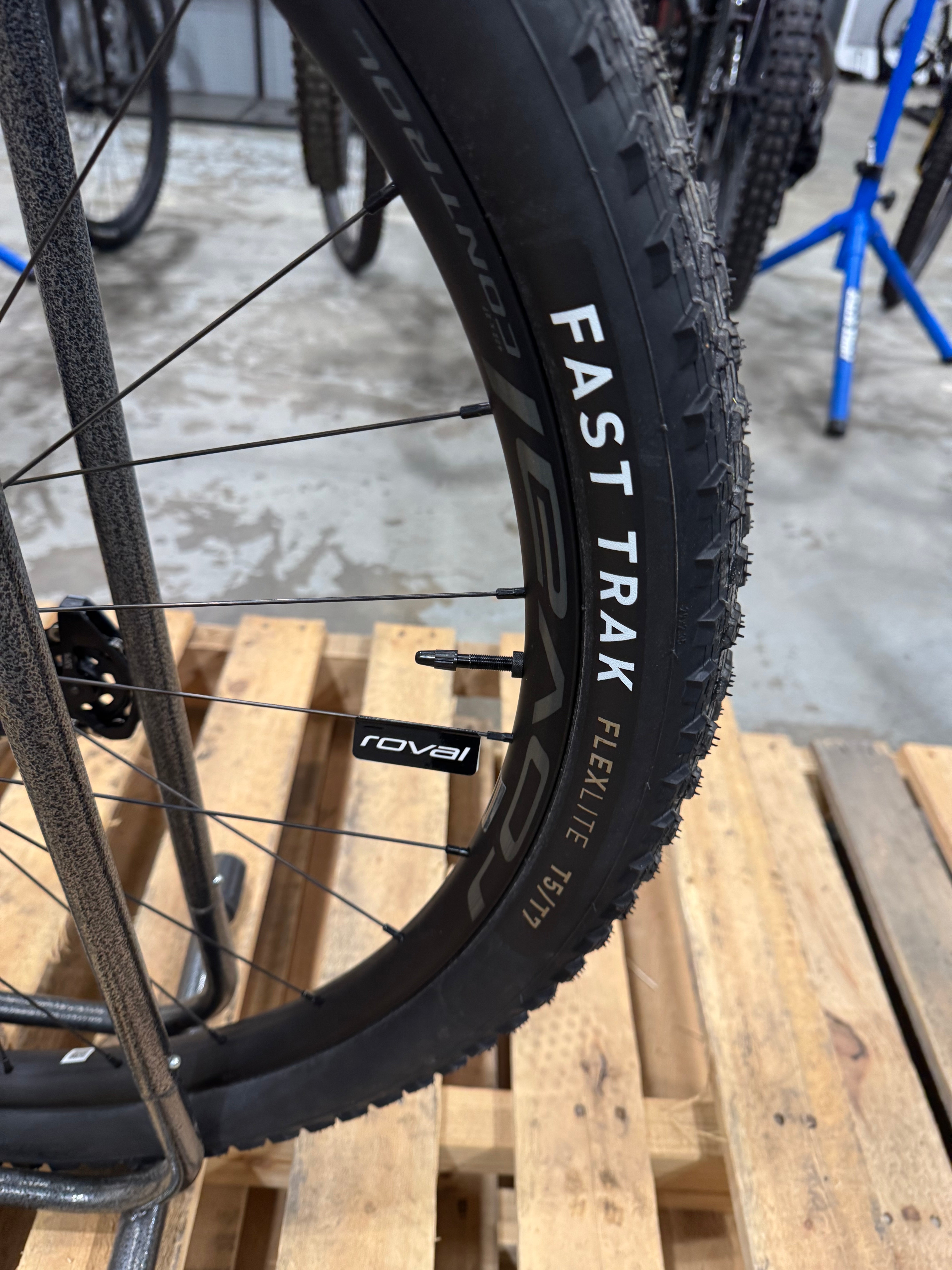

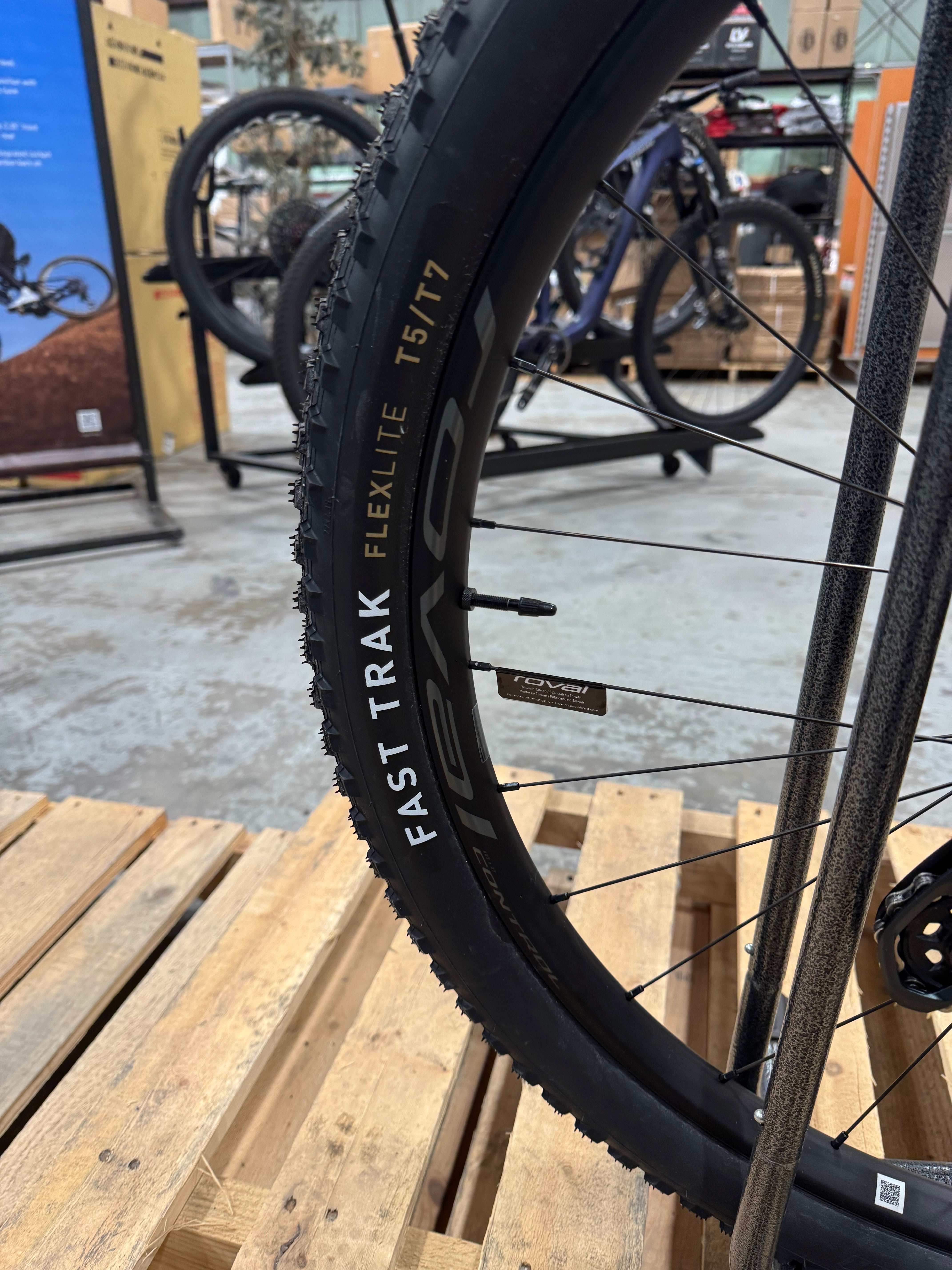

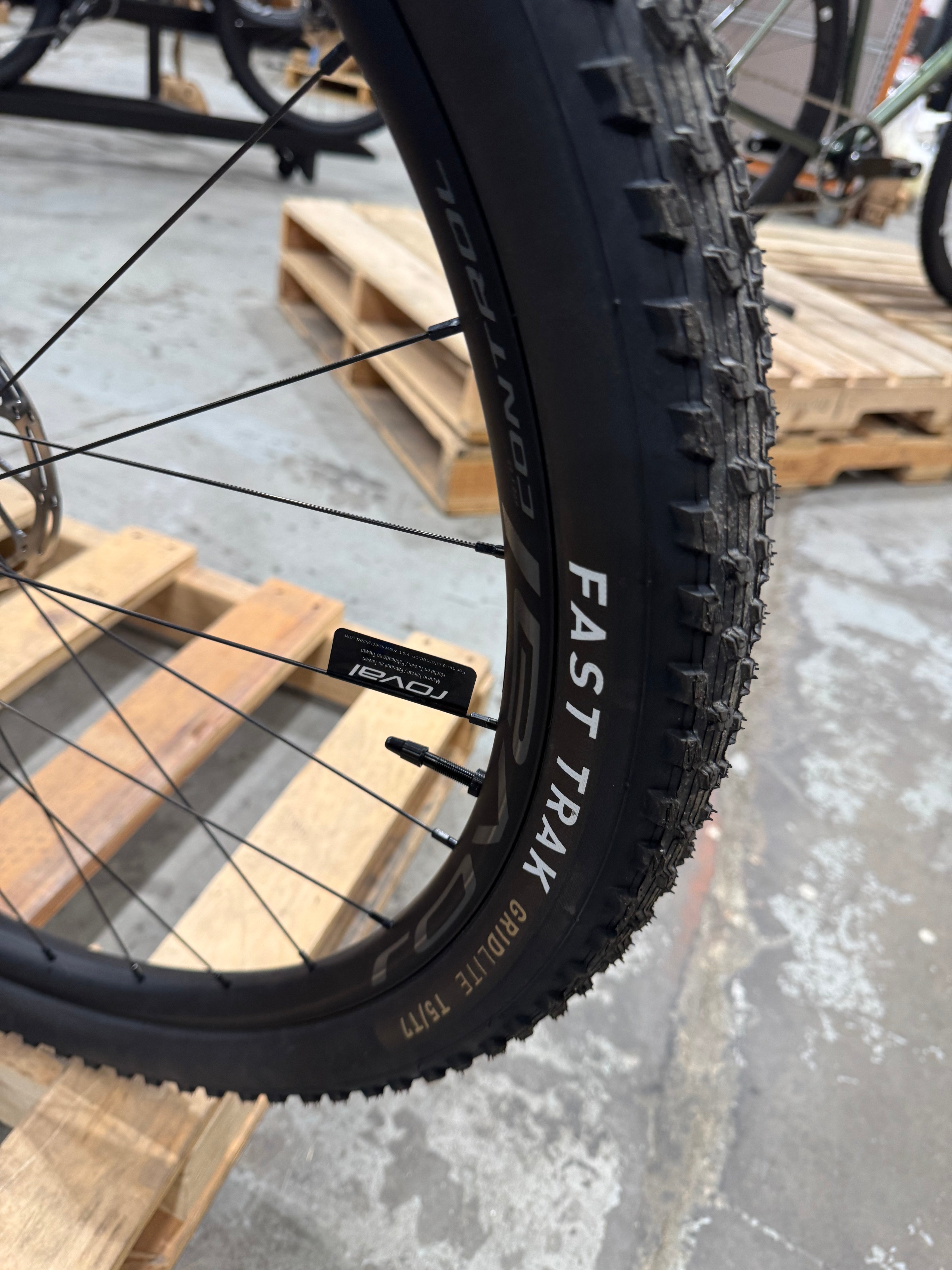

Front Tire: NEW Specialized Fast Trak Grid Lite, T5/T7 compound, 29x2.35, tubeless
-
Rear Tire: NEW Specialized Fast Trak Grid Lite, T5/T7 compound, 29x2.35, tubeless
Cockpit
-

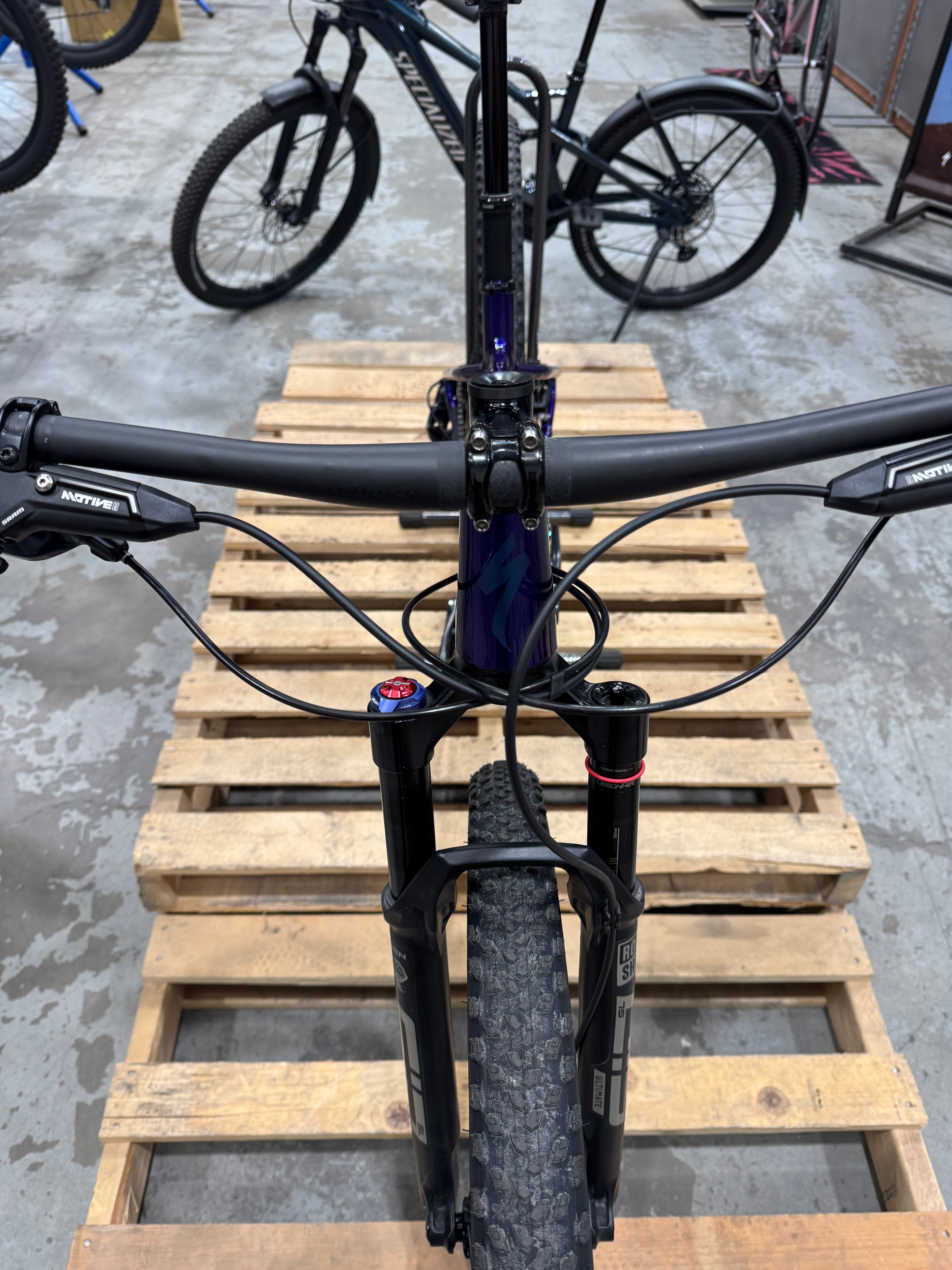

Stem: Specialized S-Works SL Stem, 31.8mm clamp, 60mm length, ±6°
-

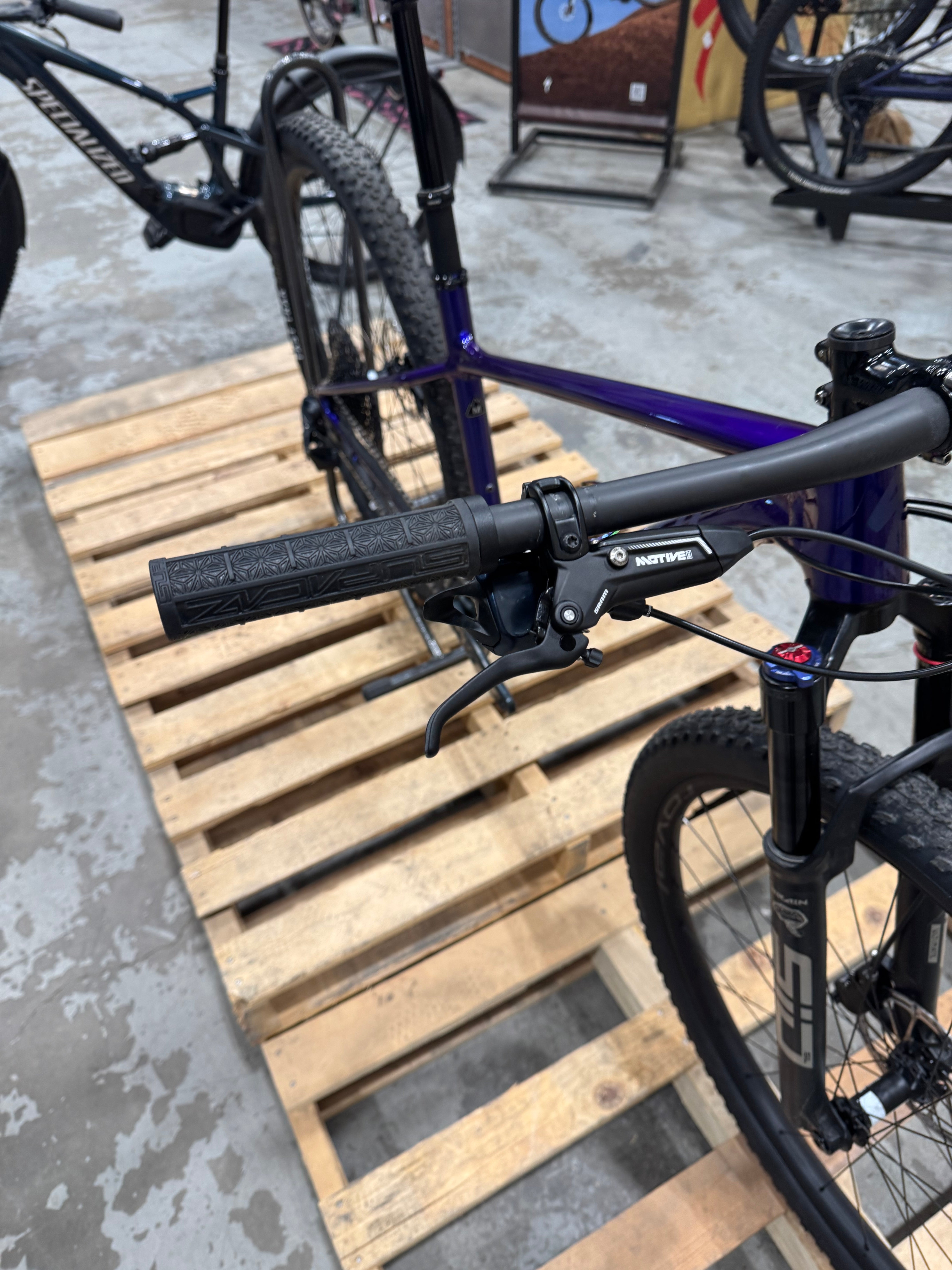

Handlebars: Specialized S-Works Carbon Mini Rise (slight scuffing where Wireless Remote was previously attached.)
-
SL FACT high-strength carbon construction offers an optimized blend of durability and lightweight performance
-
Clamp diameter: 31.8mm
-
Rise: 10mm (Mini rise)
-
Width: 760mm with cut marks for custom fit
-
Sweep: 6° upsweep
-
Finish: Unidirectional satin carbon
-
-

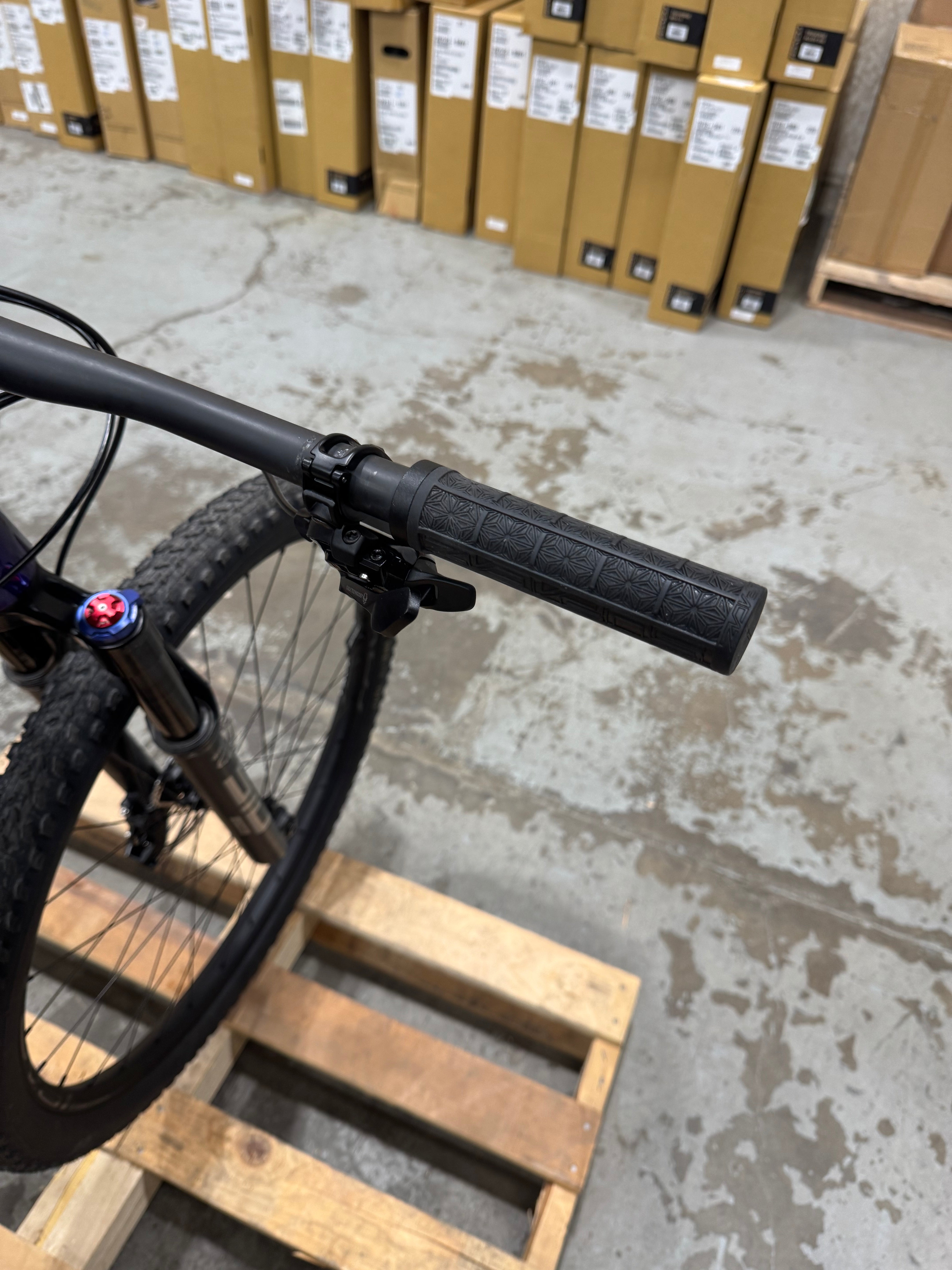

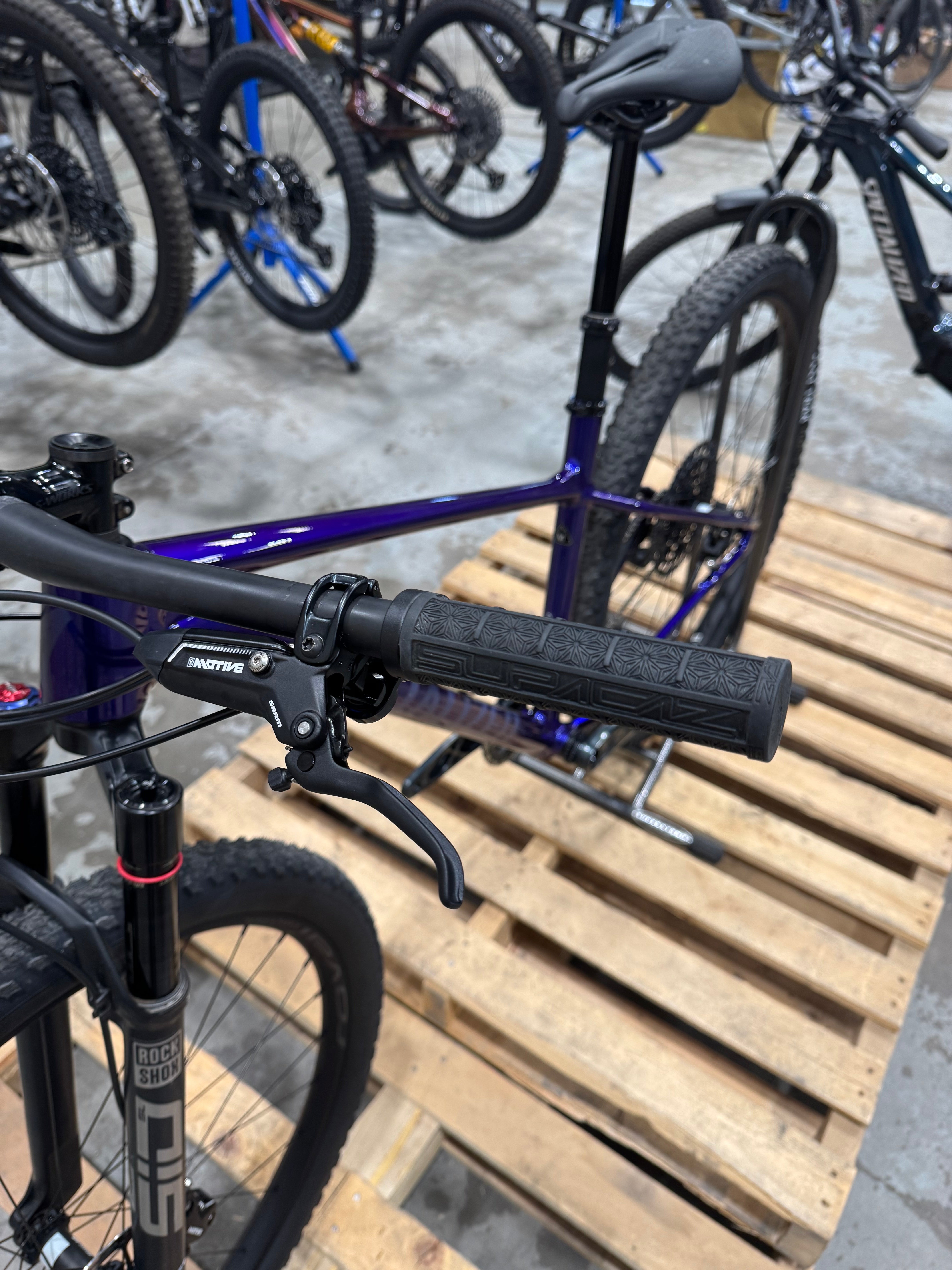

Grips: Supacaz Grizips, Black
-
Saddle: Specialized Power Expert Mirror, 143mm
-

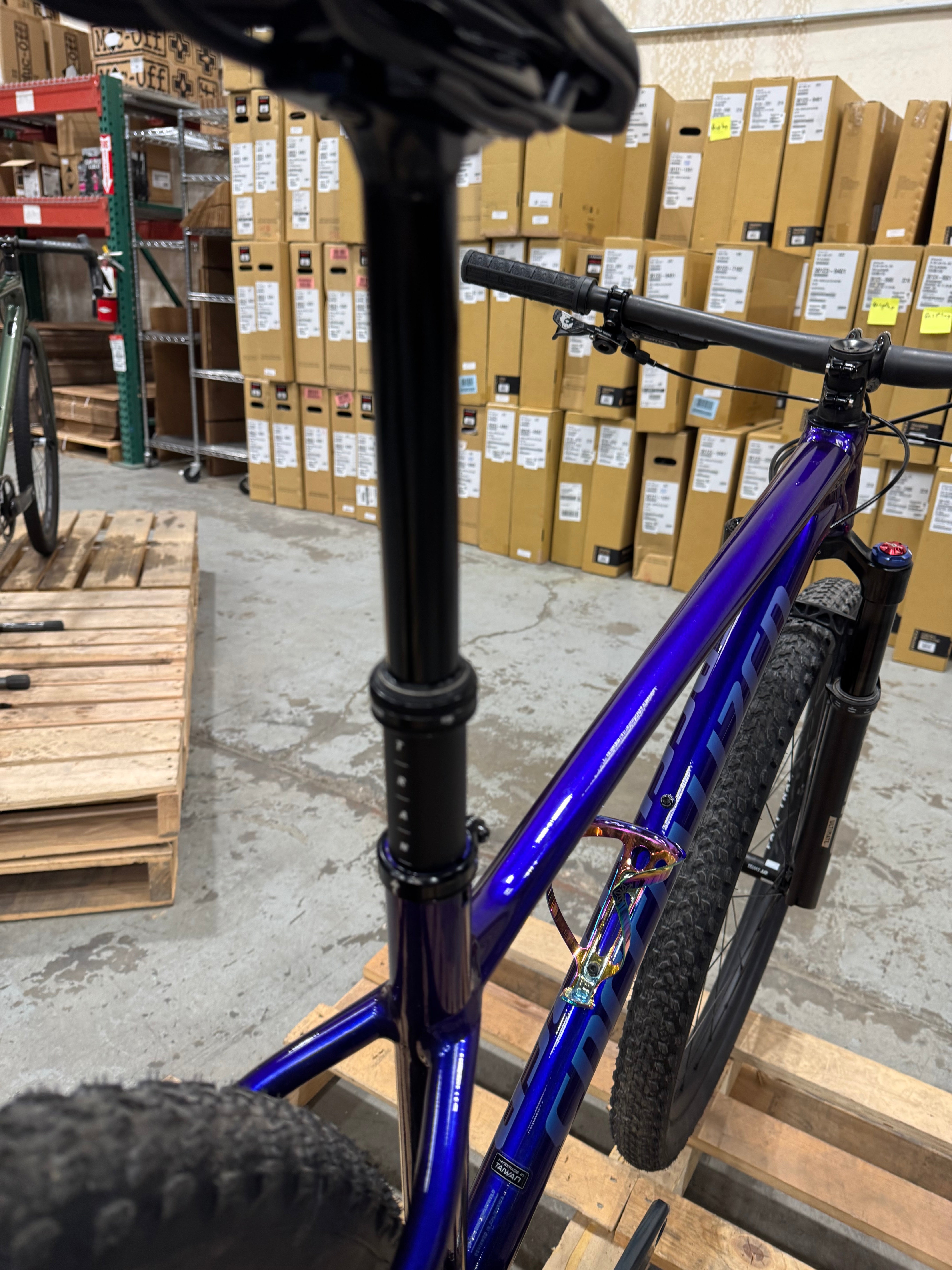

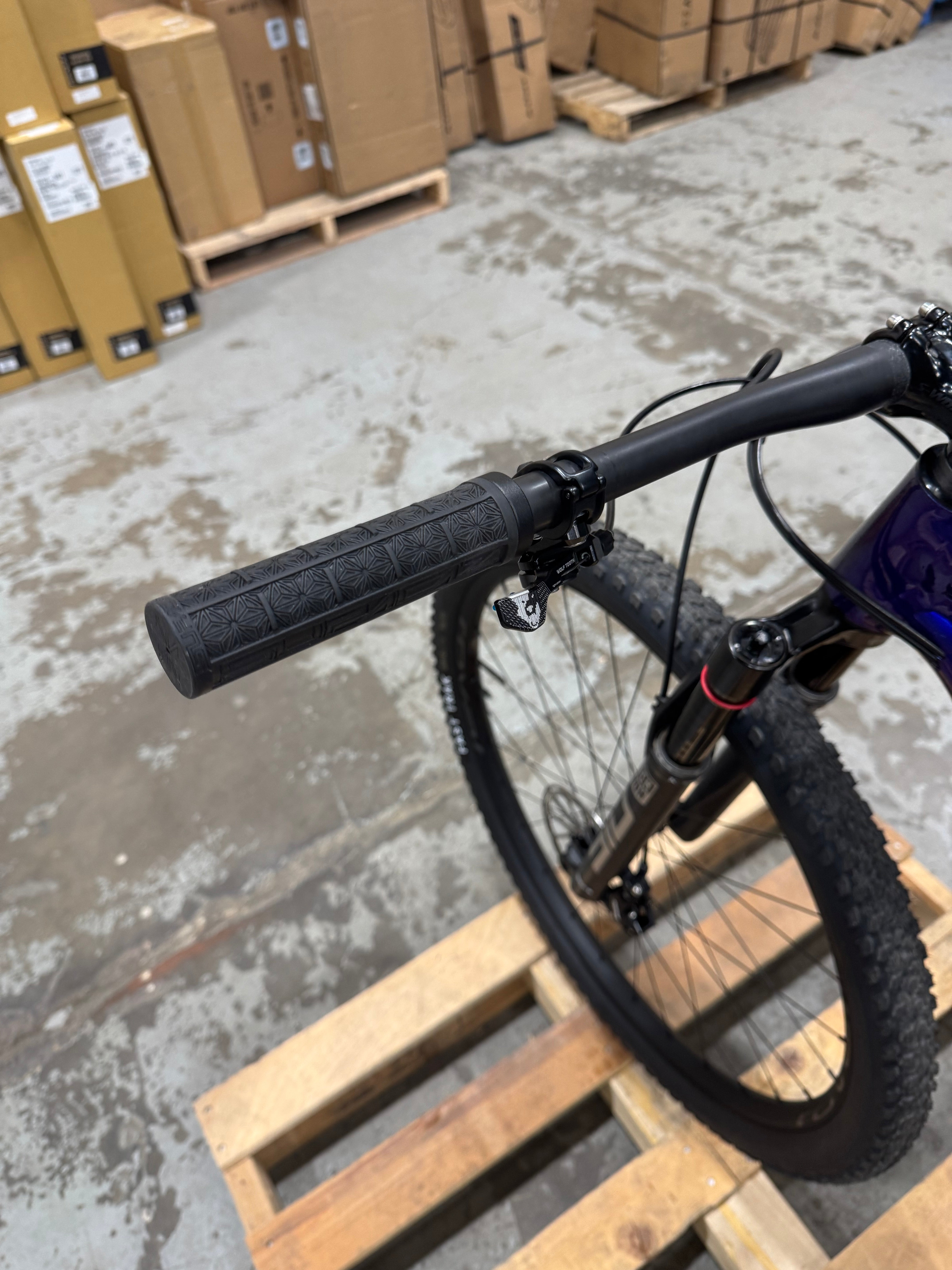

Seatpost/Dropper: Fox Transfer Performance Elite, 150mm travel; Wolftooth ReMote Light Action Dropper Lever
Weight
-
Bike Weight: 23.5 lbs
-
Size: M
Builder Note: slight scuffing on carbon bar where Wireless Remote was previously attached.
