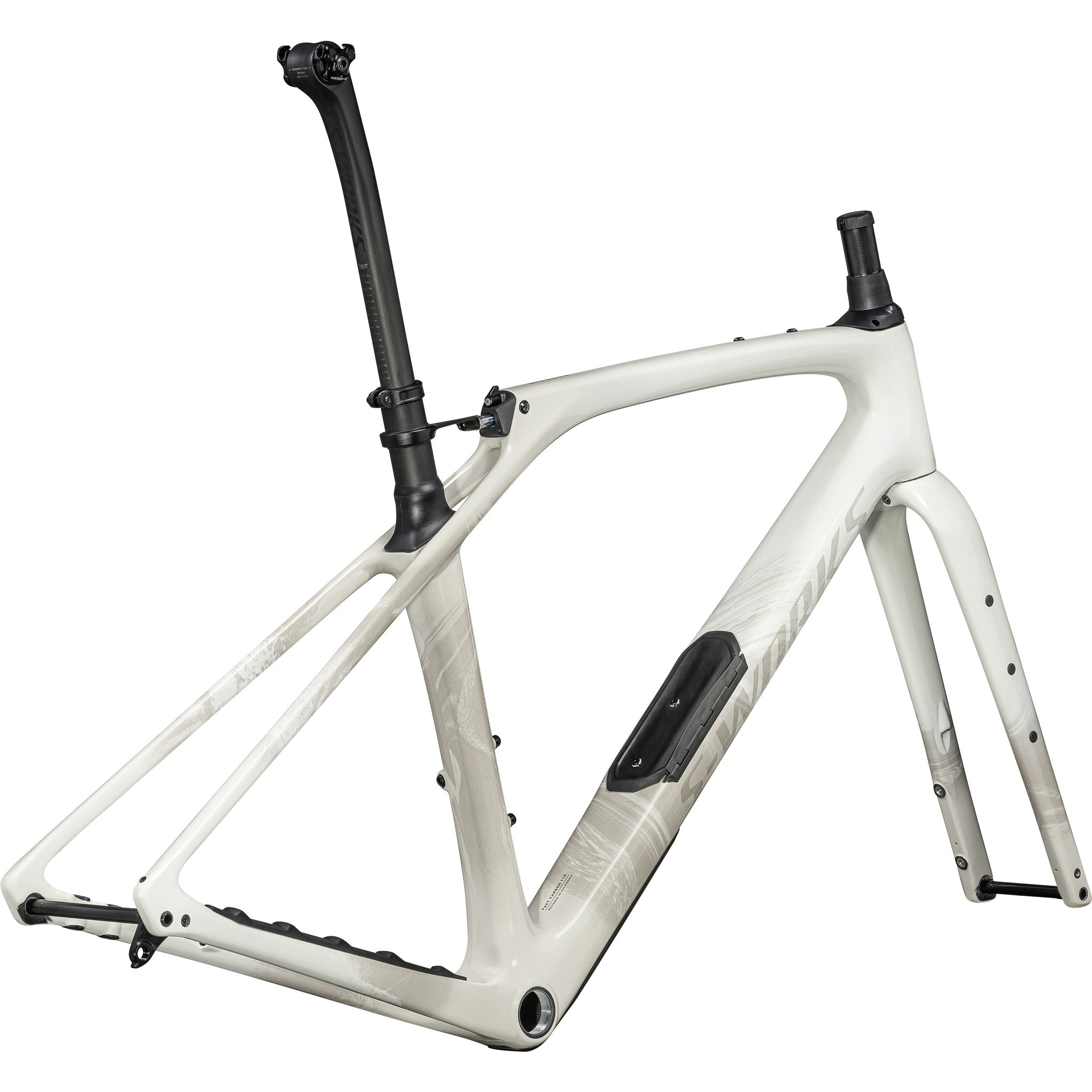

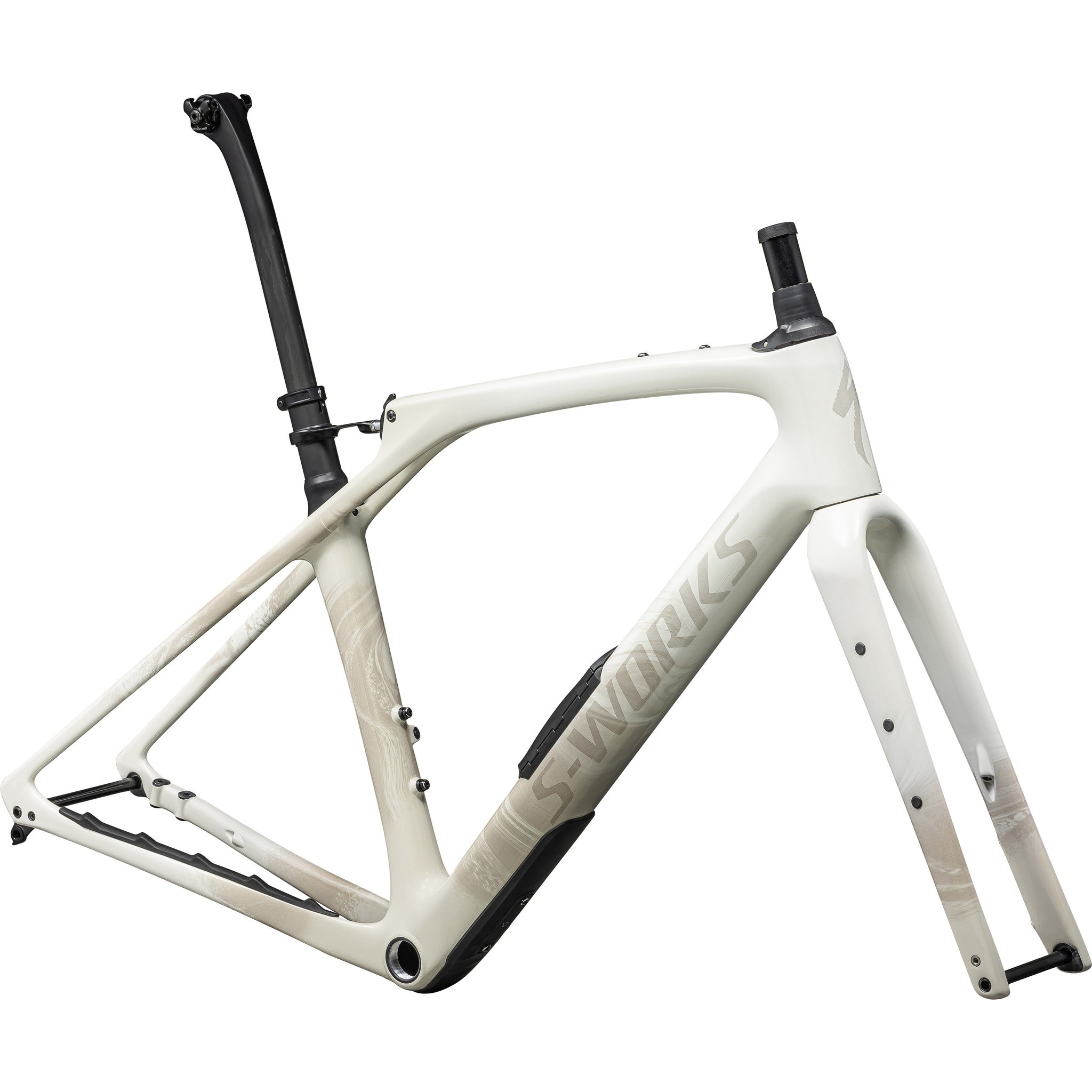

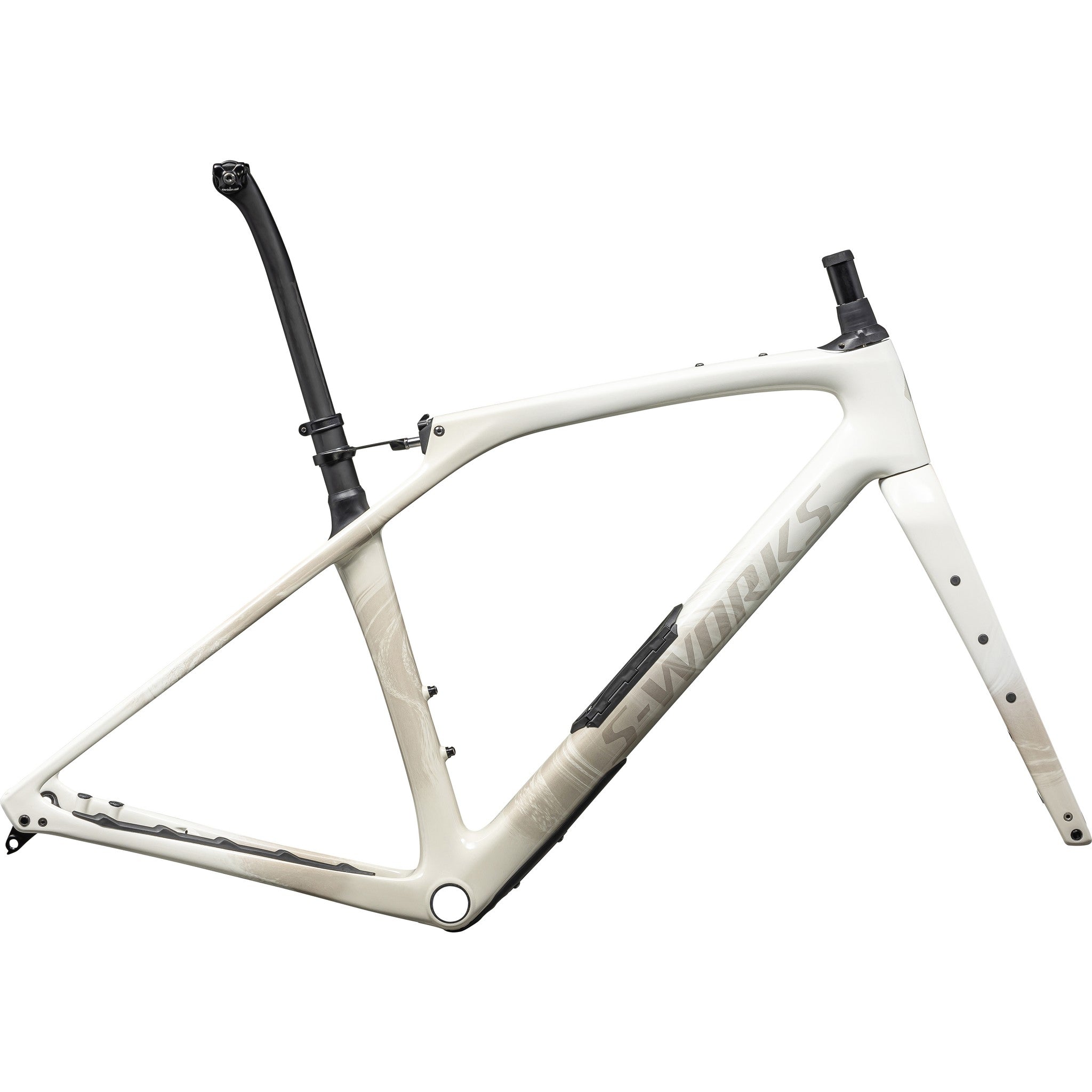

2024 Specialized S-Works Diverge STR Frameset - Gloss Dune / White Birch / Pearl

Specialized

Sale price $4,499.99 Regular price $5,499.99

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while decreasing fatigue, so you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The S-Works Diverge STR starts with our FACT 11r carbon frameset with front and rear Future Shock suspension.

  • The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
  • The S-Works Diverge STR FACT 11r carbon frame is more compliant than any drop bar bike we have ever made yet adds just 100 grams compared to the S-Works Diverge frame. Never have so few grams added so much capability. Climb it, race it, or load it down with bags and gear for the long haul—Diverge STR does it all faster and smoother without any excess baggage.
  • By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.
  • Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
  • More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.

Technical Specifications

SUSPENSION

Fork

Future Shock 3.3 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

Frameset

Frame

S-Works Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

ACCESSORIES

SWAT

Integrated SWAT door, internal storage system

COCKPIT

SeatPost

S-Works Carbon Seat Post, 20mm Offset

Cockpit

Seat Binder

Specialized Alloy, 33.3mm

Weight

Weight

2.98kg (6 lb, 9.1 oz)

Weight Size

56

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

49 52 54 56 58 61
Seatpost Length 350mm 350mm 350mm 350mm 350mm 350mm
Stack 569mm 576mm 593mm 609mm 633mm 659mm
Reach 365mm 374mm 383mm 392mm 401mm 410mm
Head Tube Length 100mm 100mm 115mm 130mm 155mm 182mm
Head Tube Angle 70° 70.5° 71.25° 71.75° 71.75° 71.75°
BB Height 270mm 265mm 265mm 265mm 265mm 265mm
BB Drop 80mm 85mm 85mm 85mm 85mm 85mm
Trail 69mm 66mm 61mm 57mm 57mm 57mm
Fork Length, Full 390mm 390mm 390mm 390mm 390mm 390mm
Fork Rake/Offset 55mm 55mm 55mm 55mm 55mm 55mm
Front Center 607mm 612mm 619mm 629mm 645mm 663mm
Chainstay Length 429mm 429mm 429mm 429mm 429mm 429mm
Wheelbase 1023mm 1027mm 1034mm 1044mm 1060mm 1078mm
Top Tube Length, Horizontal 527mm 540mm 556mm 570mm 586mm 602mm
Bike Standover Height 704mm 730mm 753mm 778mm 804mm 833mm
Seat Tube Length 390mm 430mm 470mm 500mm 530mm 560mm
Seat Tube Angle 74.5° 74.25° 74° 74° 74° 74°
