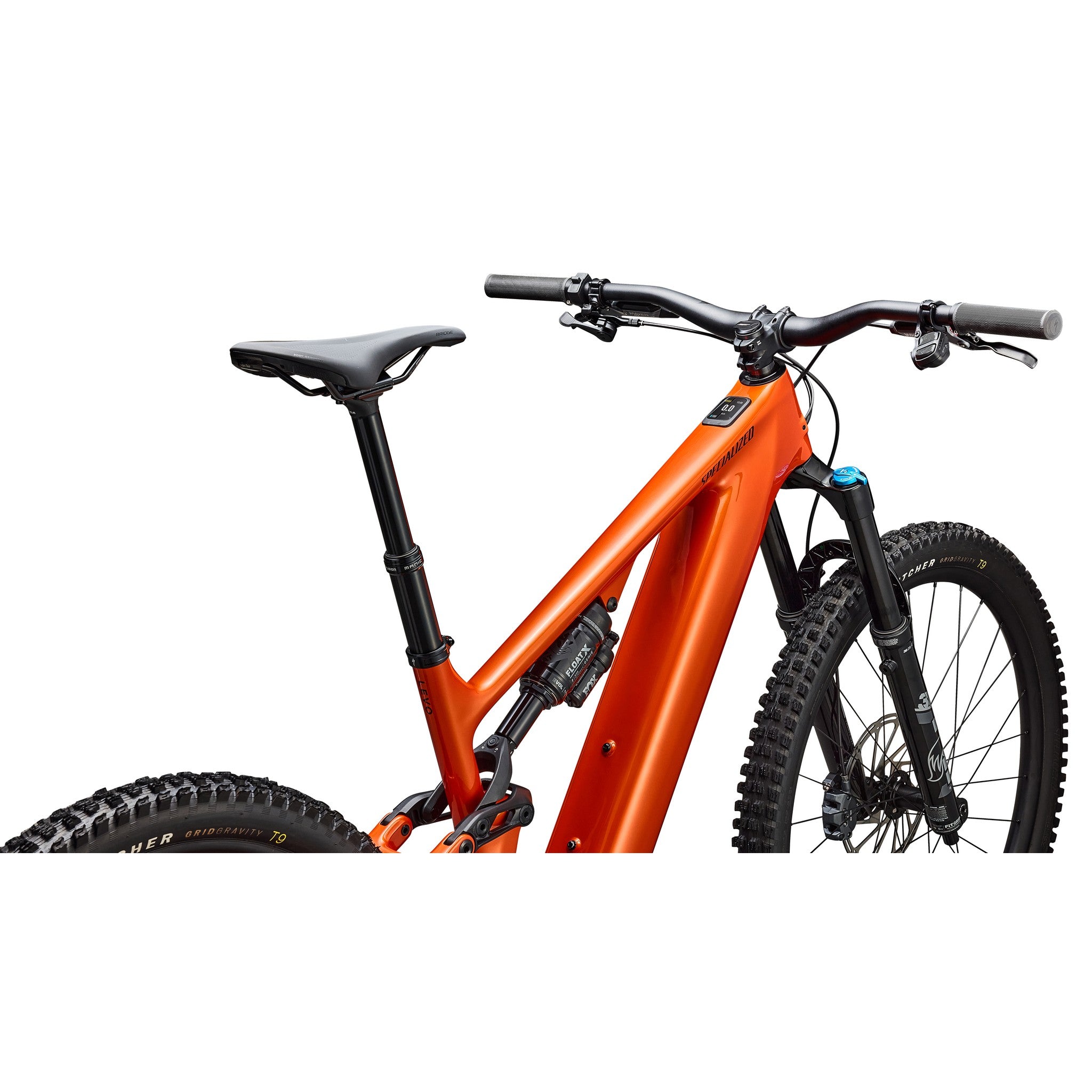

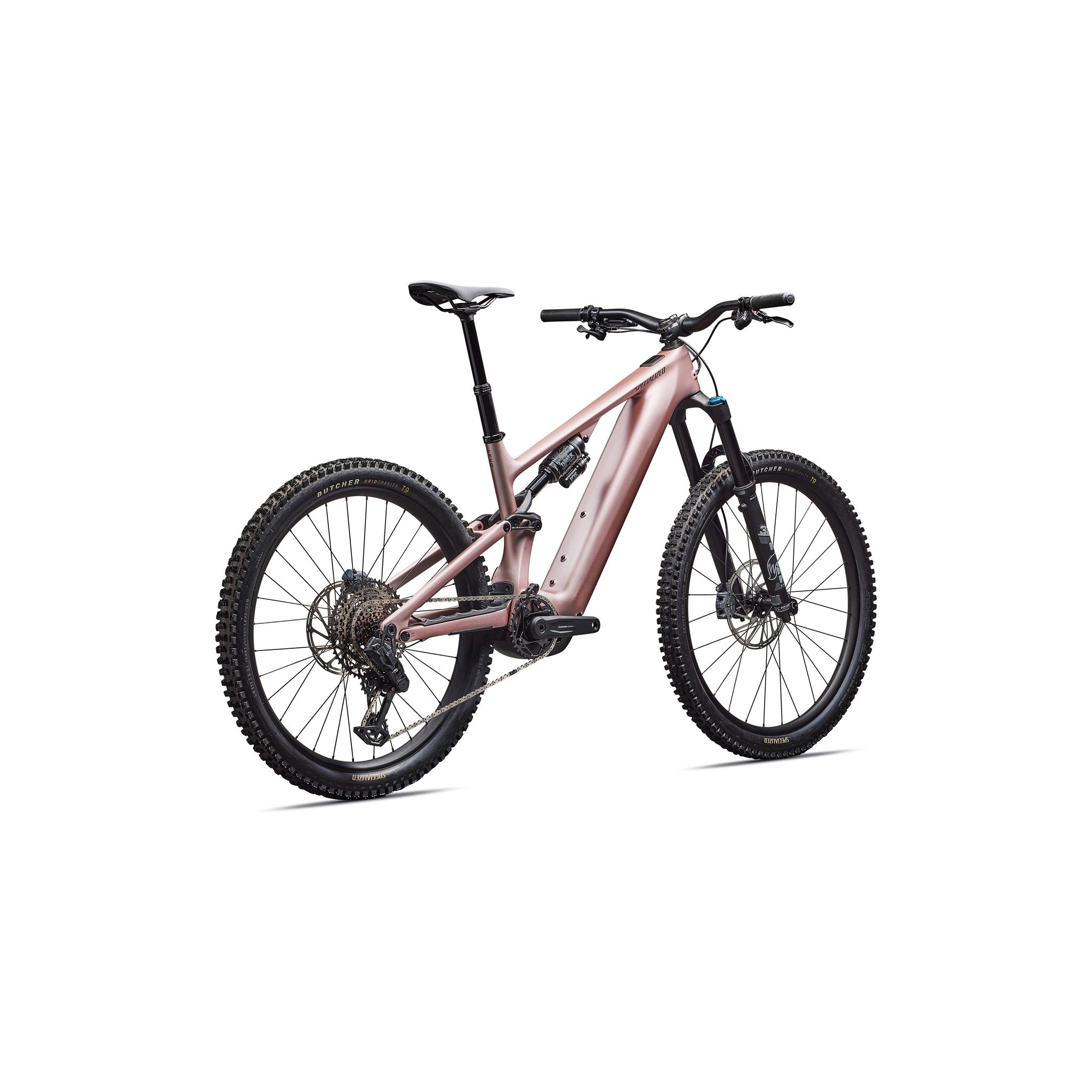

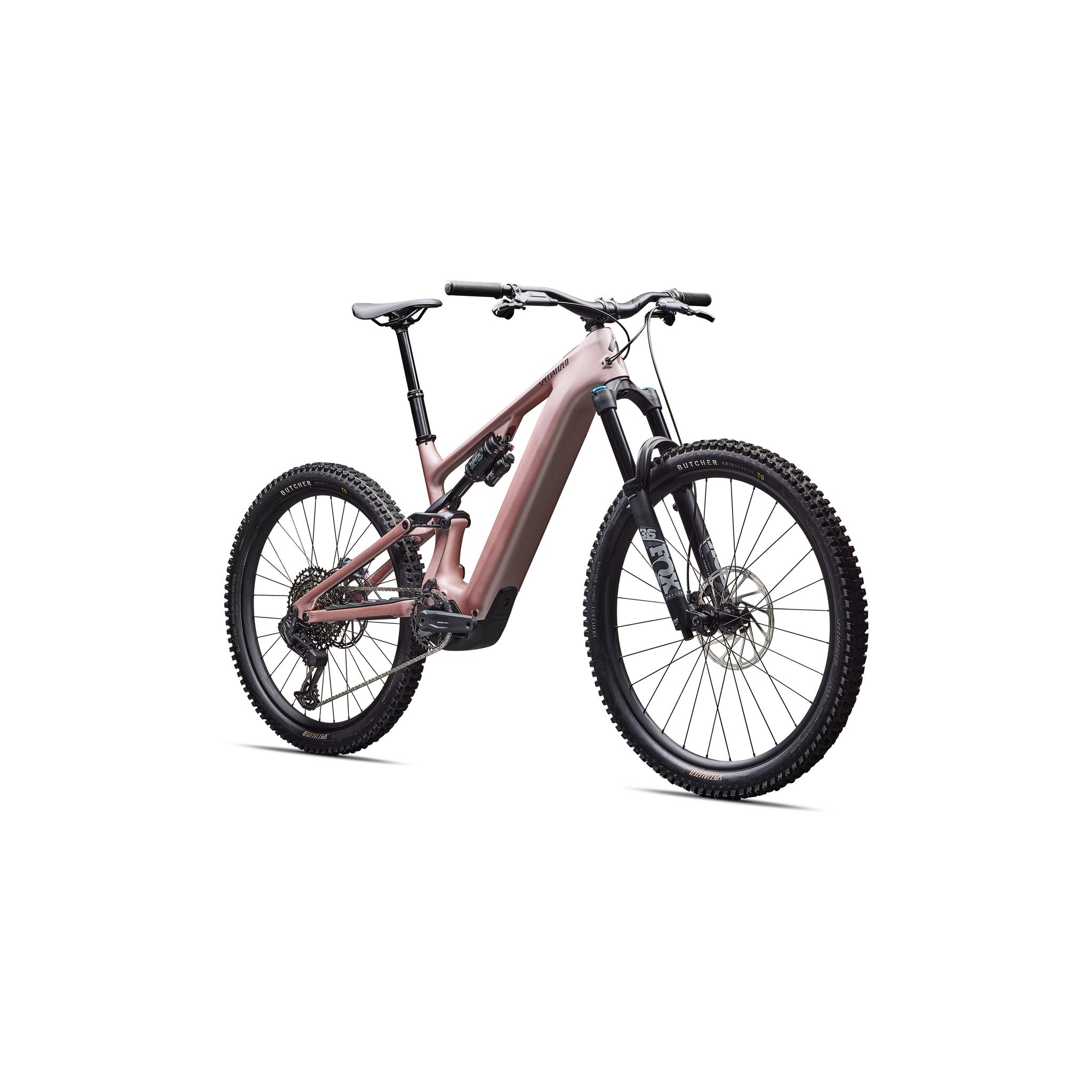

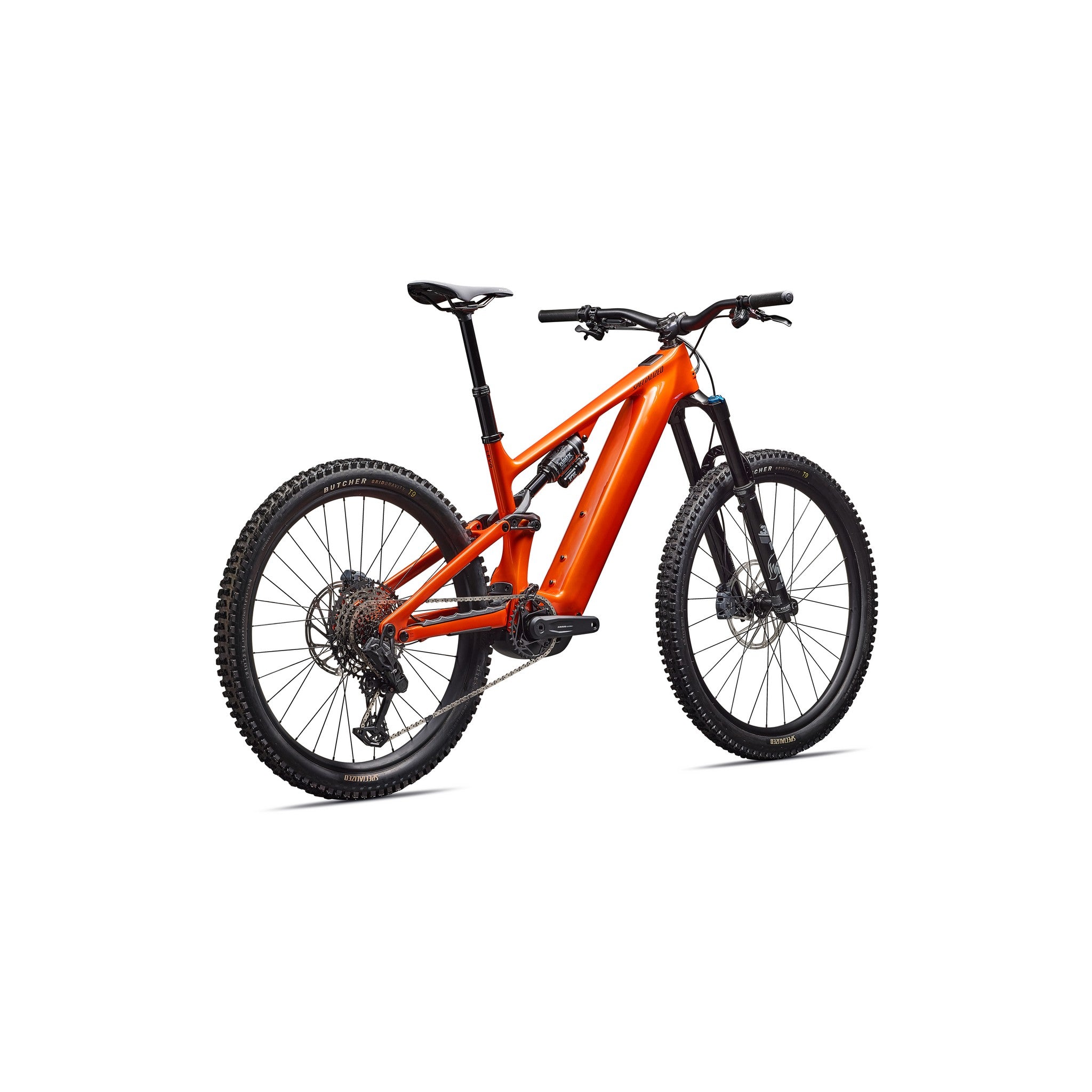

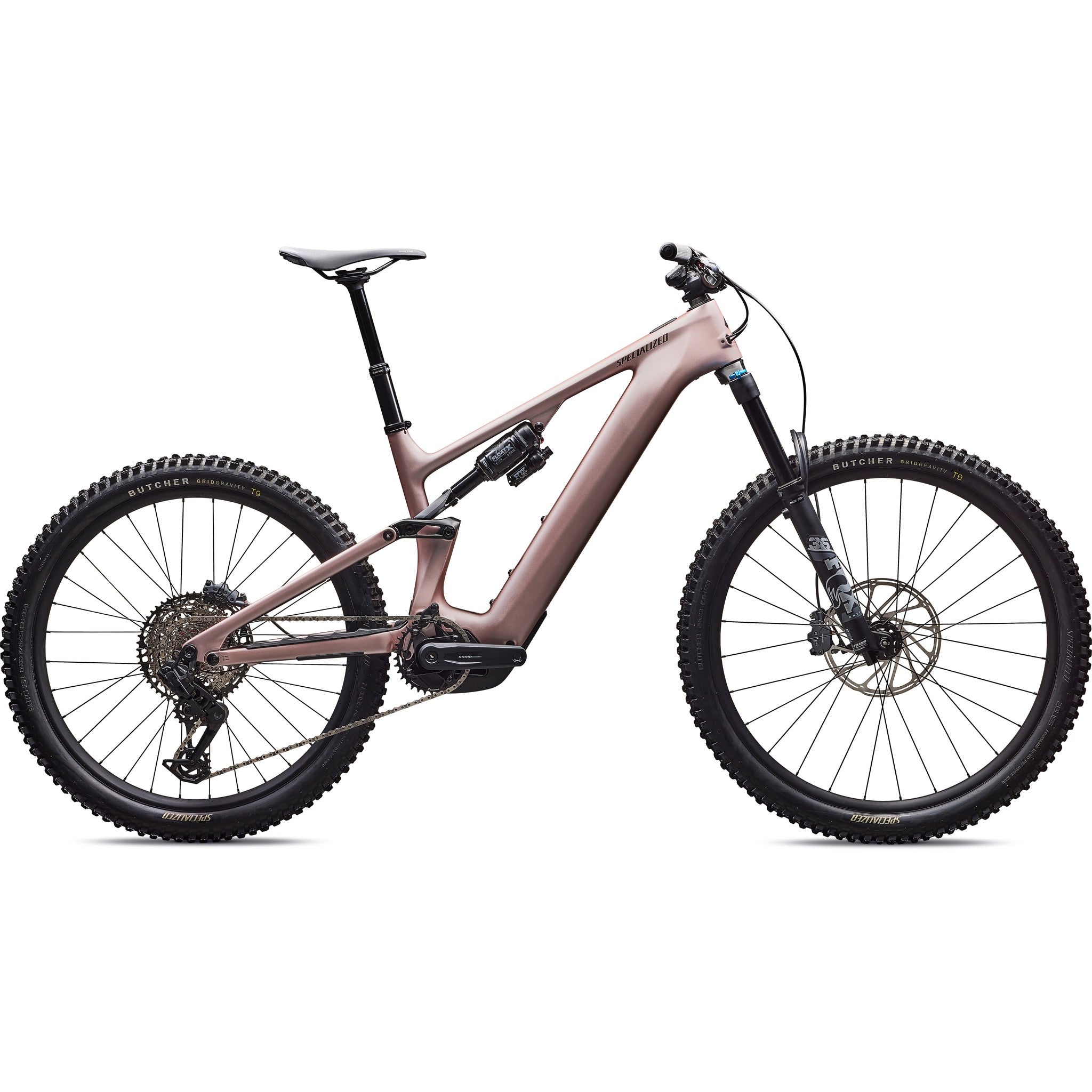

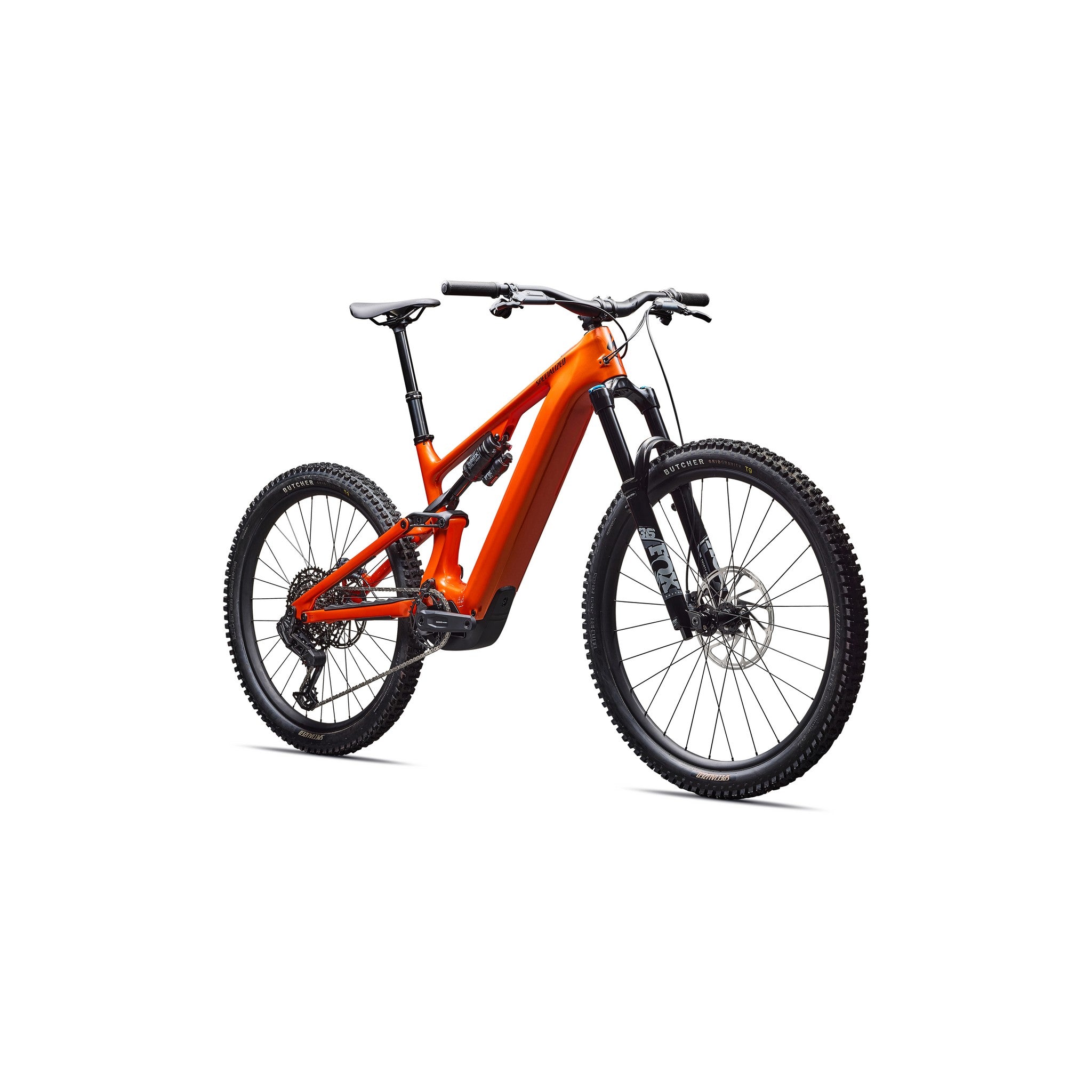

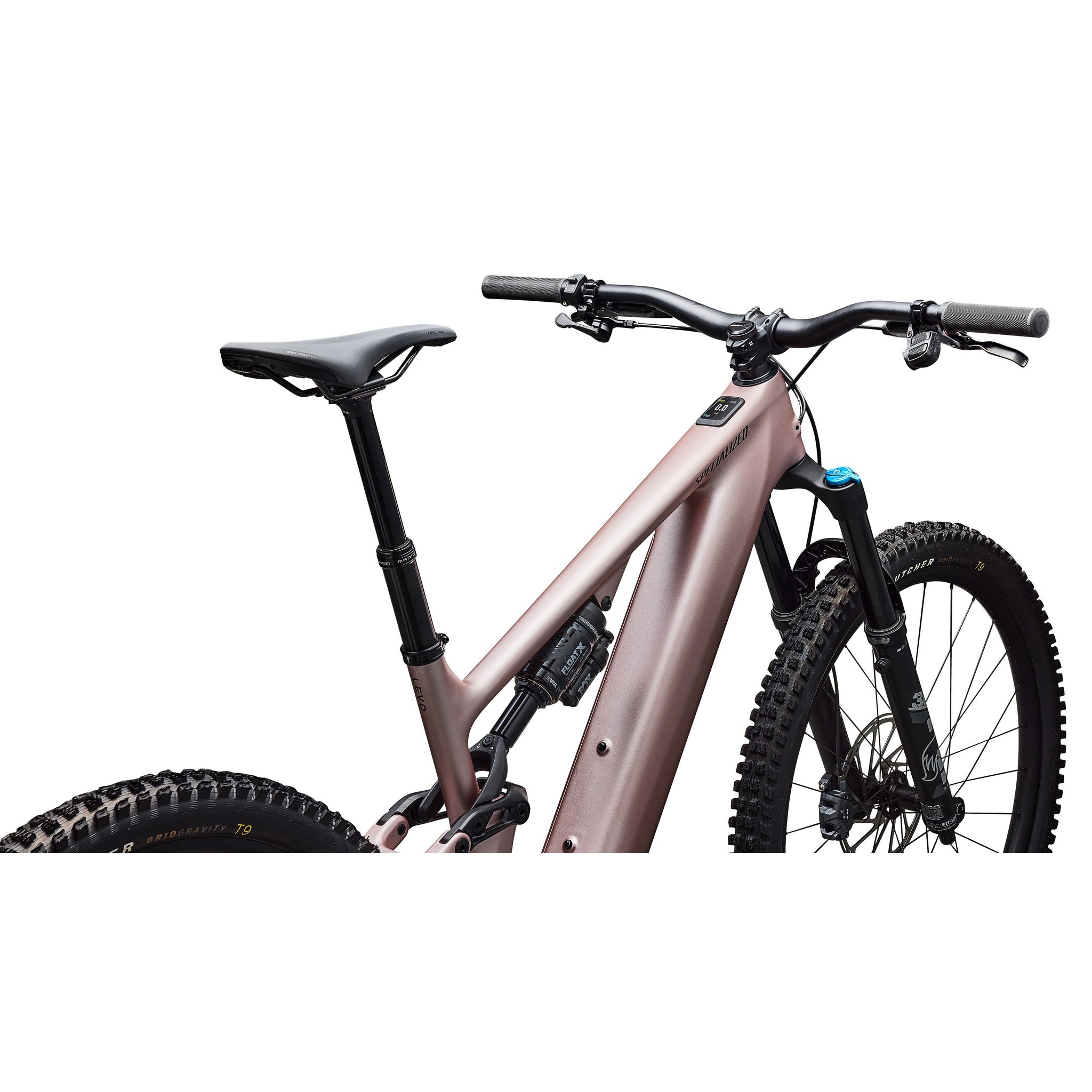

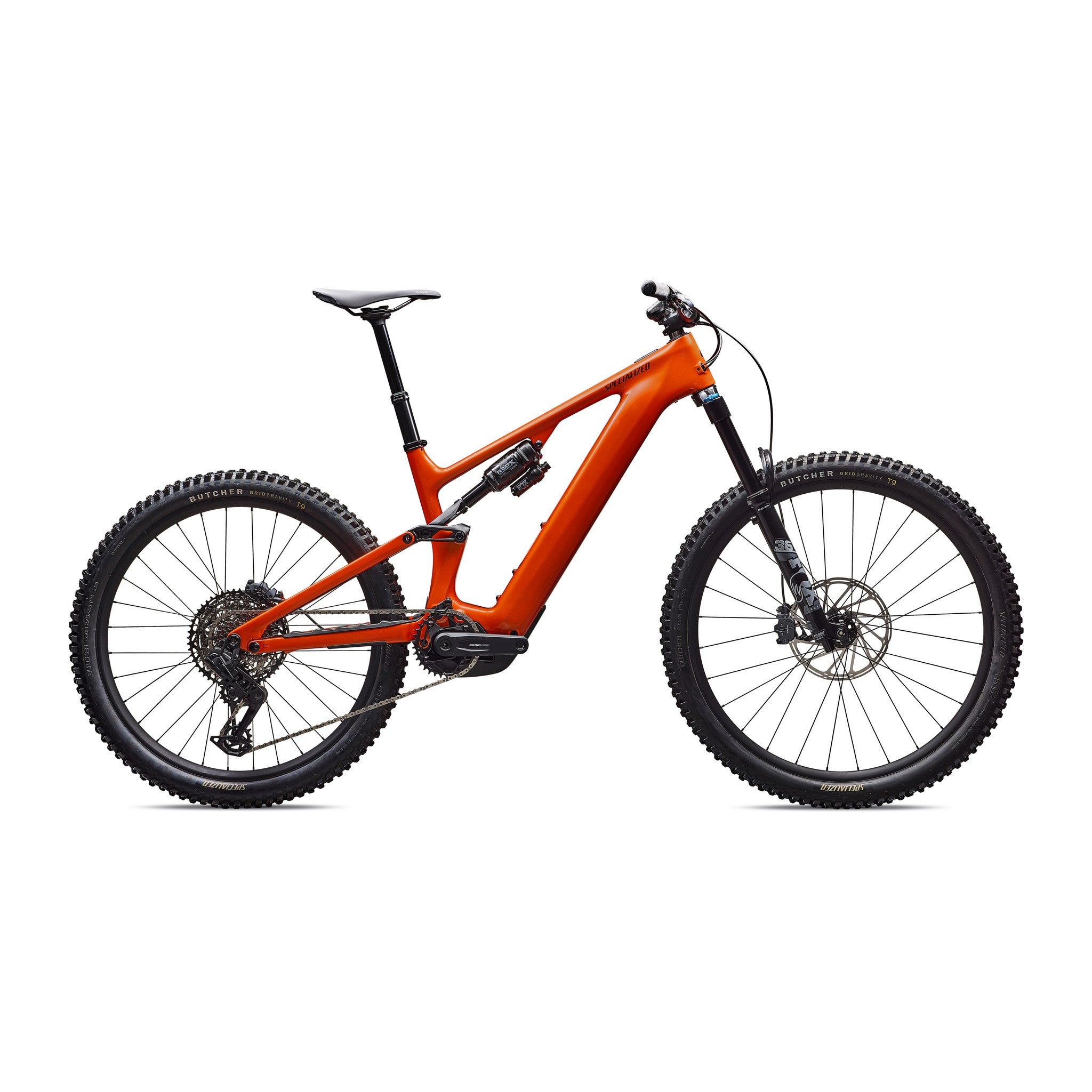

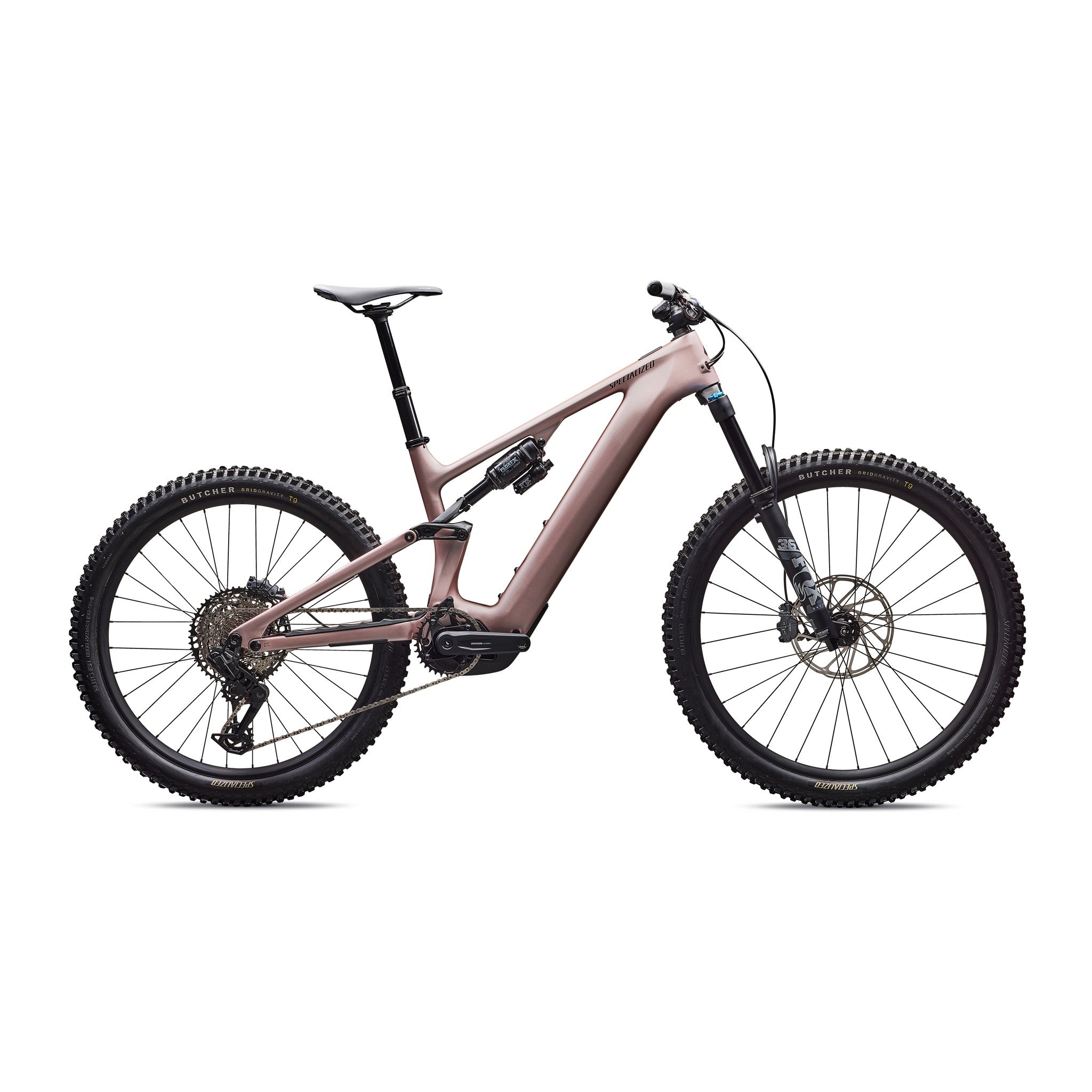

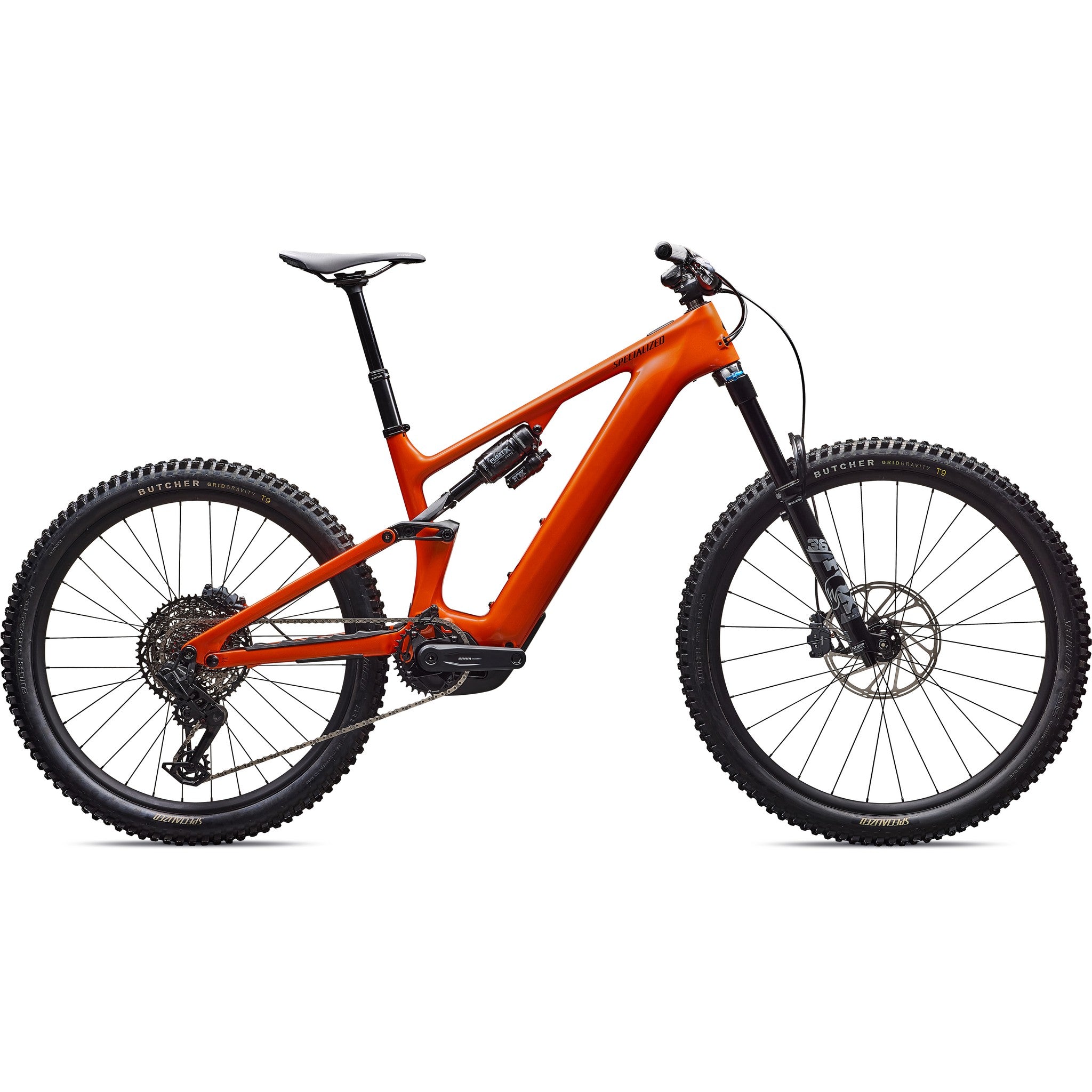

The Specialized Science Club presents their latest innovation, the Levo 4 Electric Mountain Bike. This advanced bike, with its powerful motor and large battery, gives you the strength, traction, and control to dominate any off-road terrain. With a sleek design, customizable display, and top-of-the-line components, the Levo 4 is the ultimate combination of superhuman power and natural ability. Discover the true potential of cycling with the Levo 4, where science and nature unite.
Technical Specifications
E-Bike
Motor

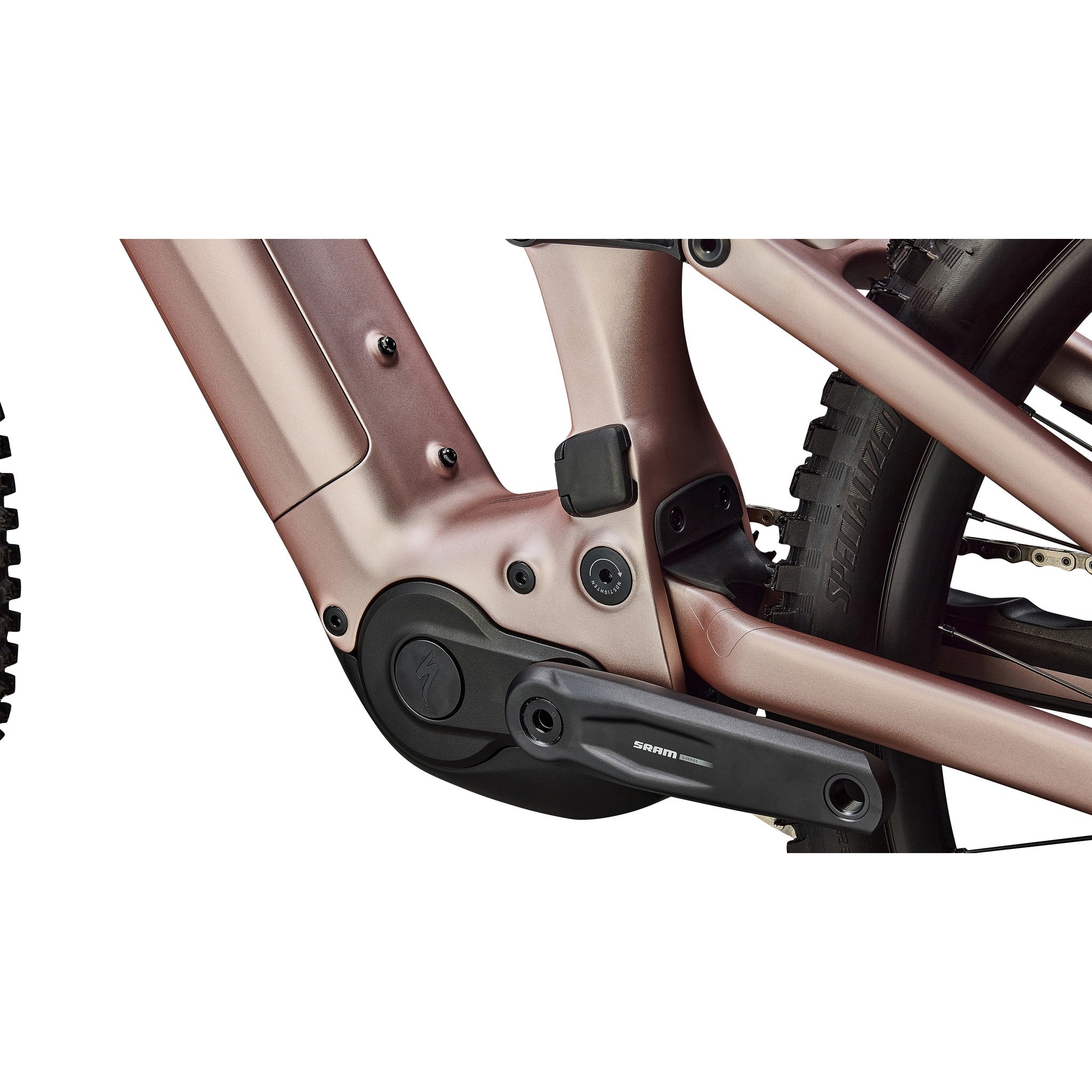

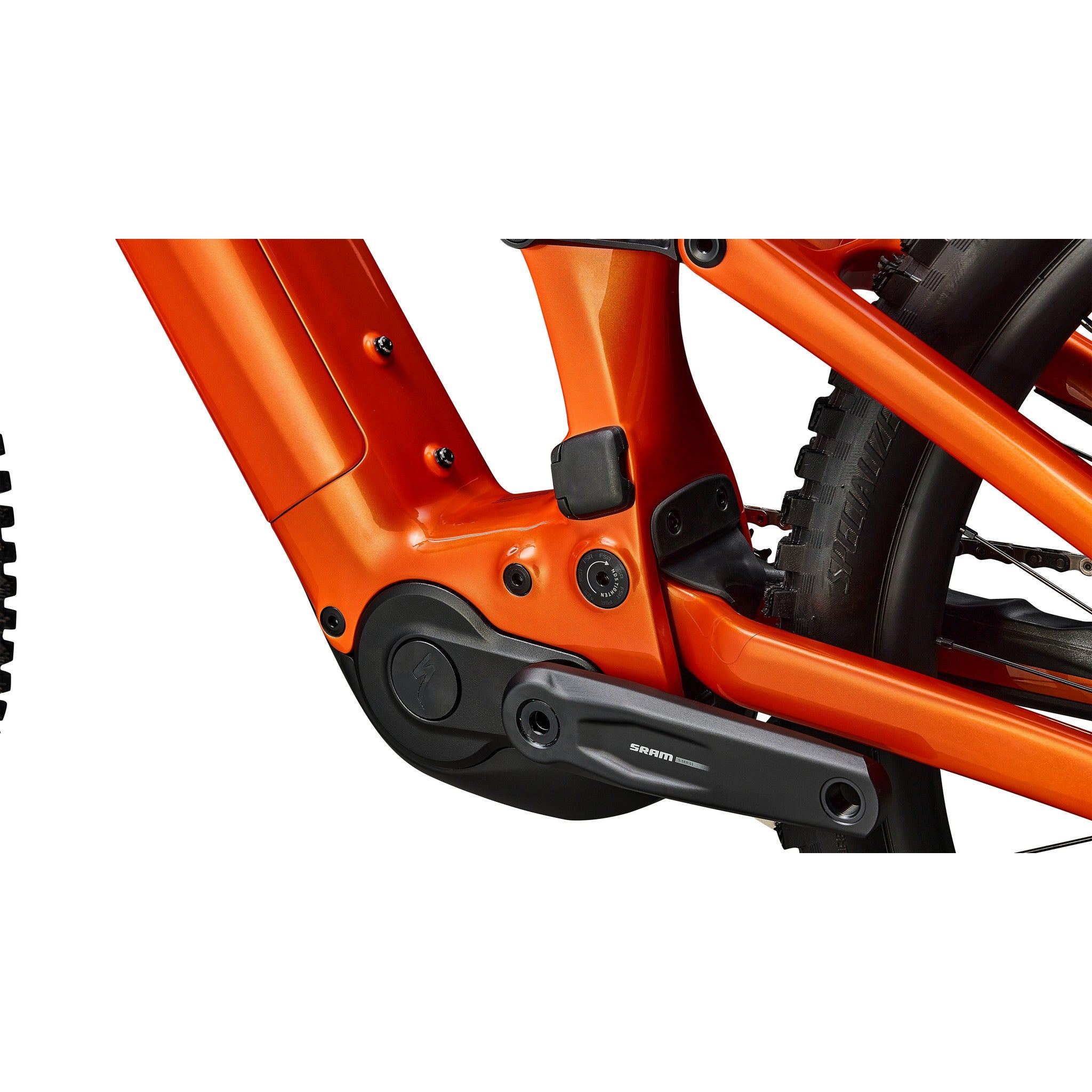

All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840wh battery
UI/Remote

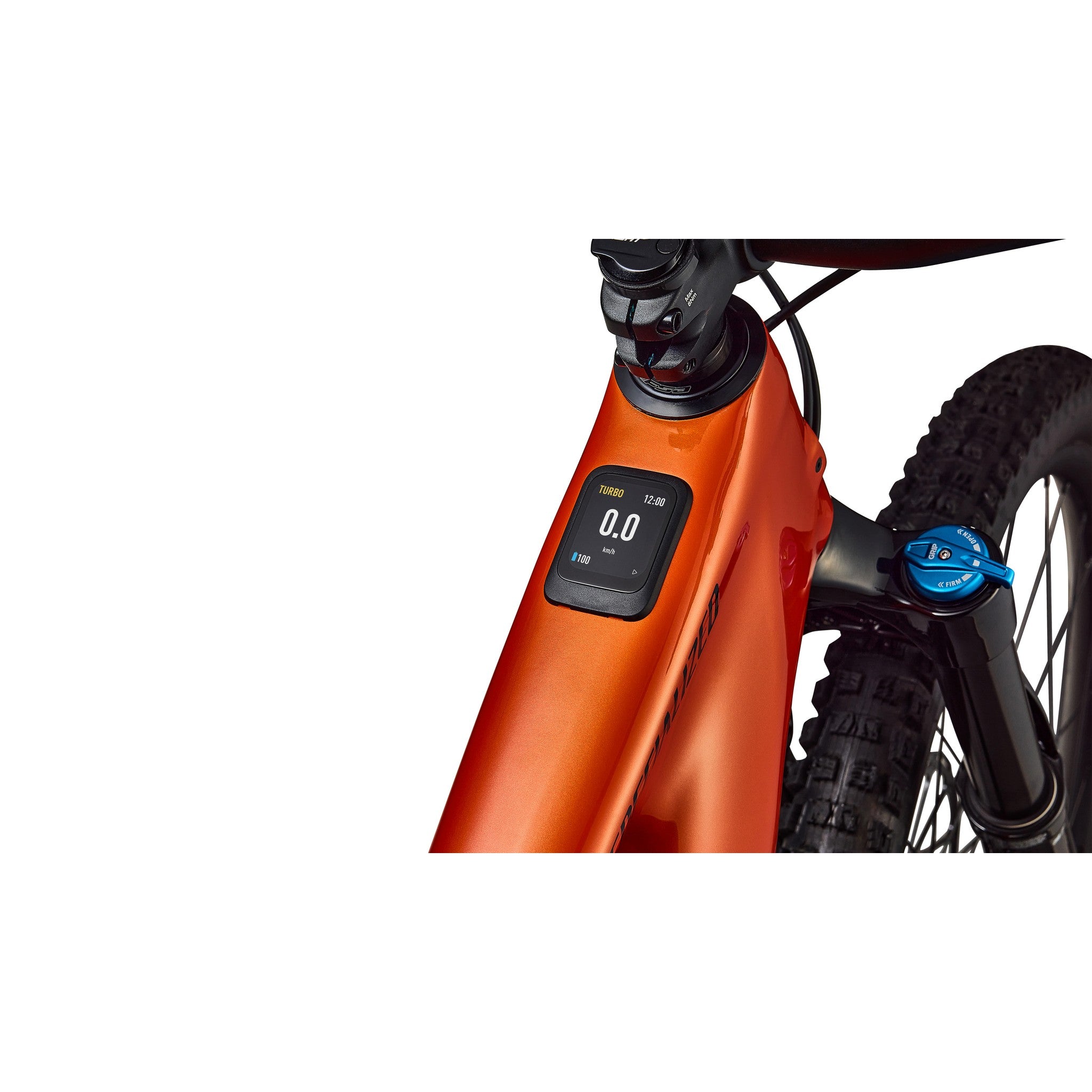

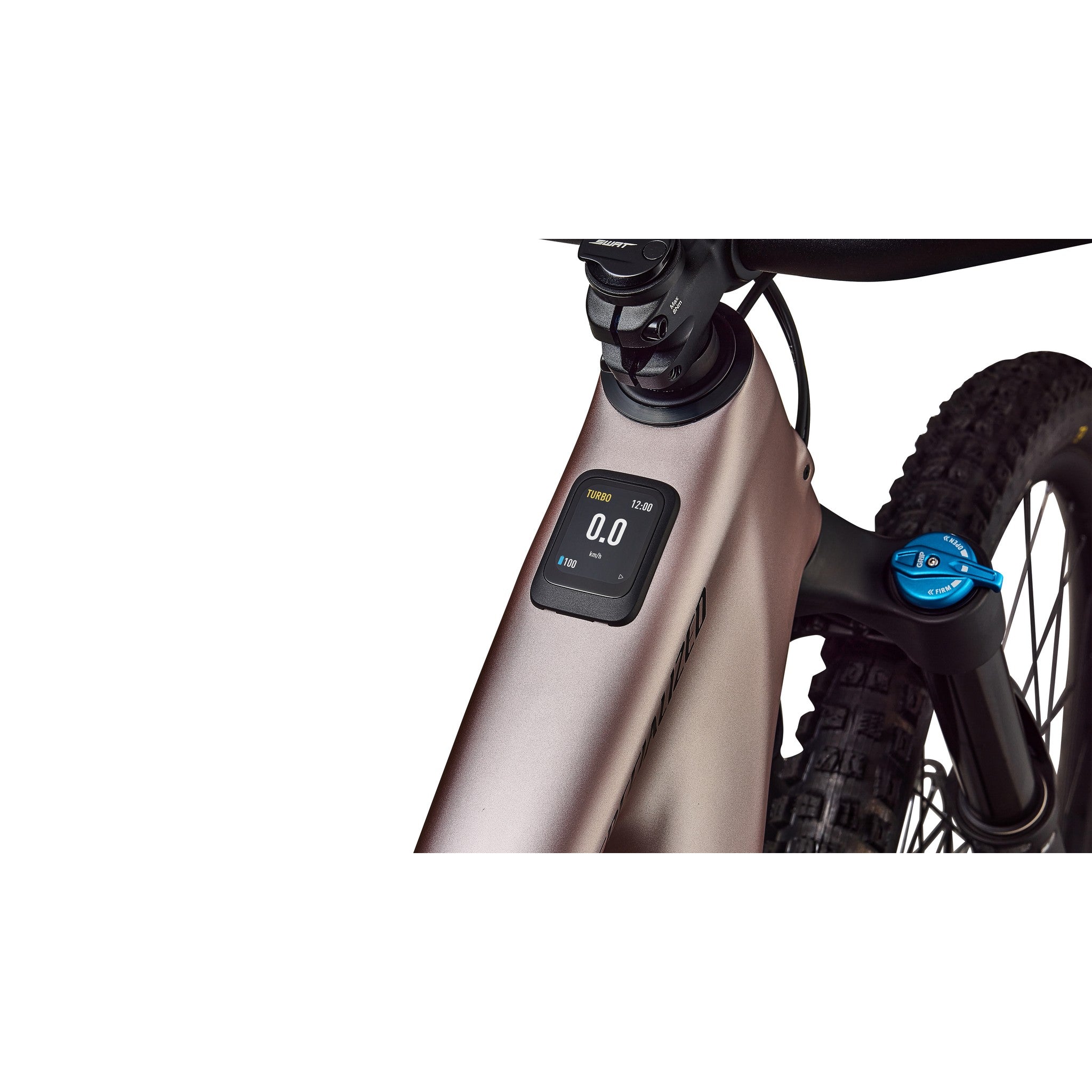

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame

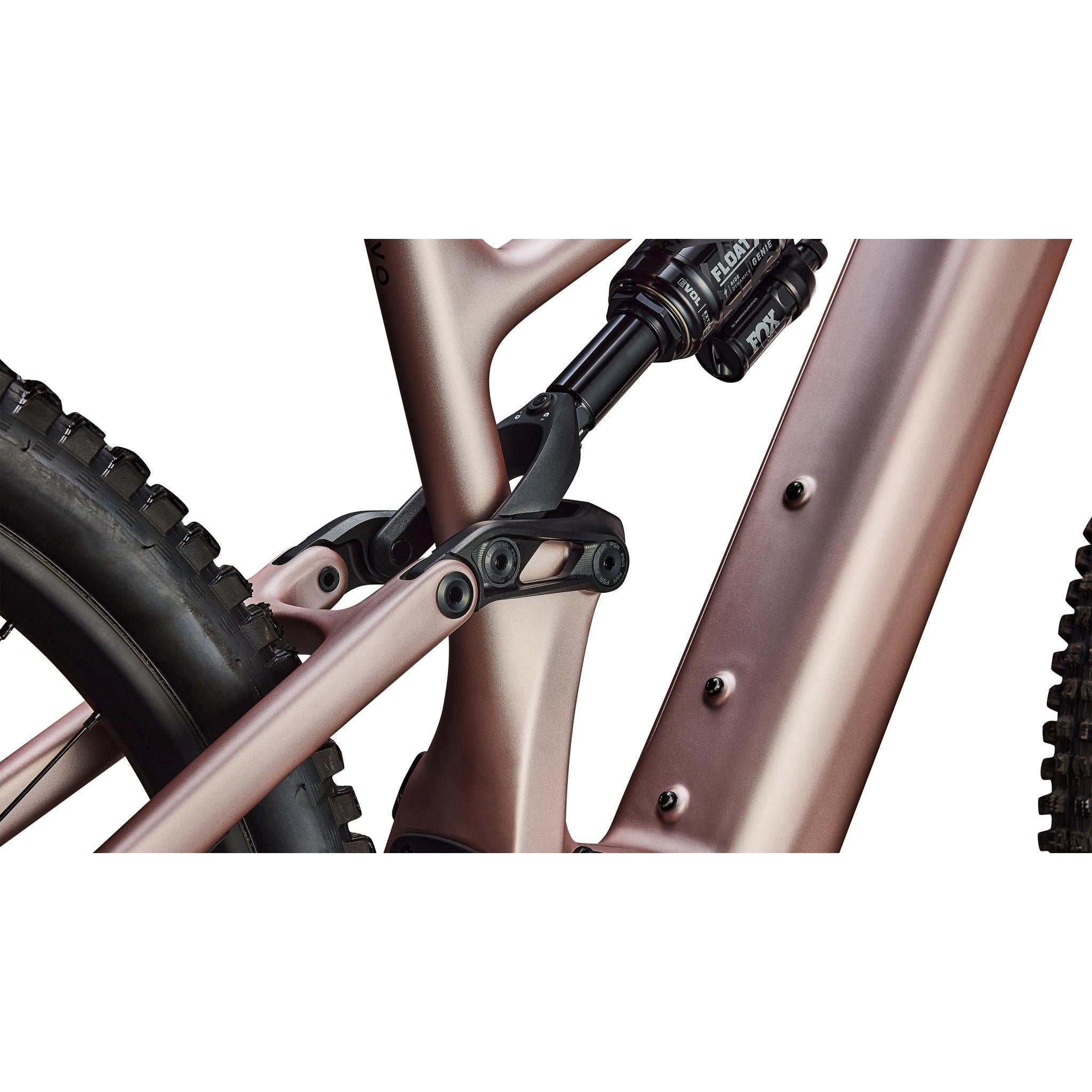

All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension

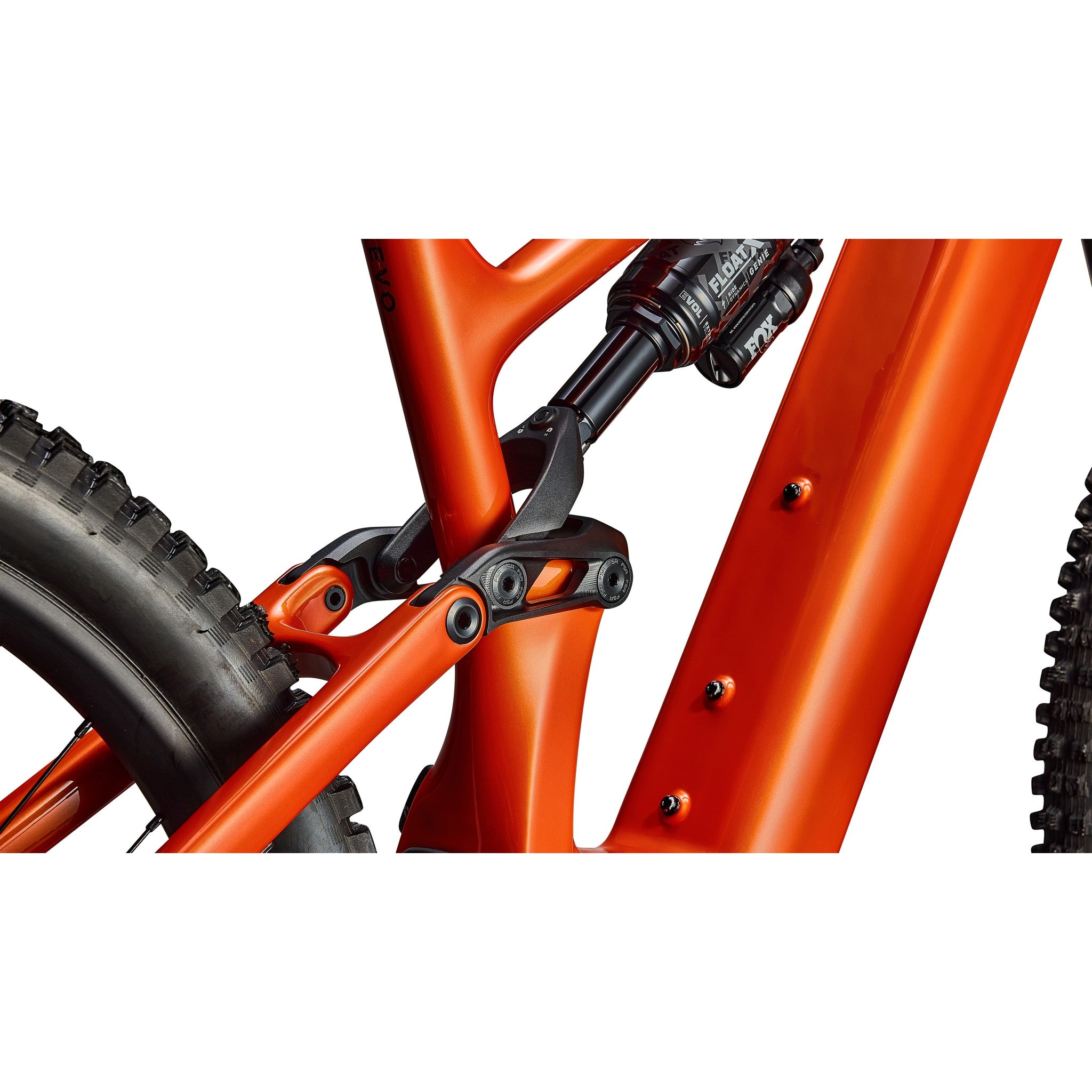

Rear Shock

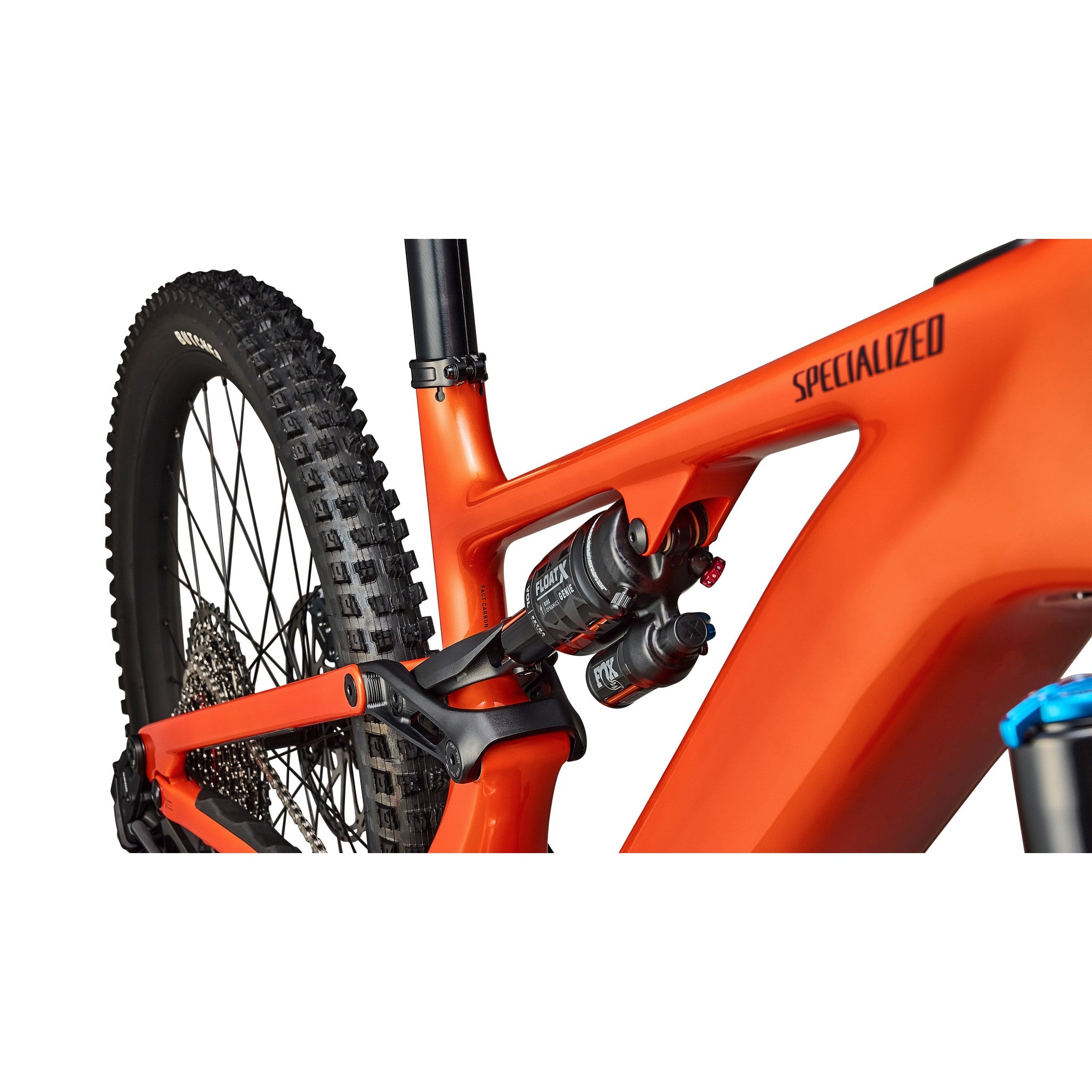

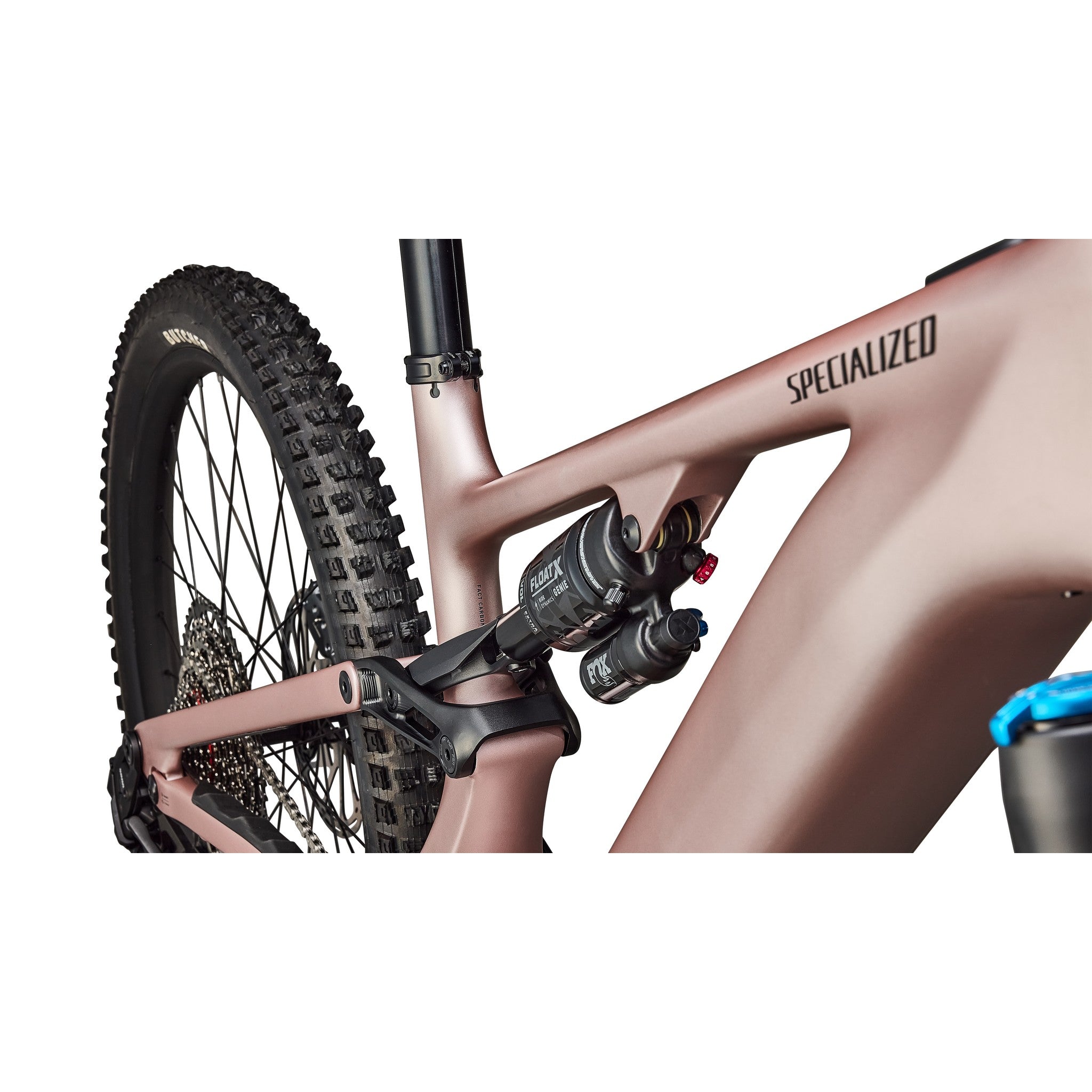

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM S1000 Eagle Transmission Derailleur
Cassette
SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain
Crankset
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings
SRAM T-type ring, 34T, 104 BCD, steel
Wheels & Tires
Rims
Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars

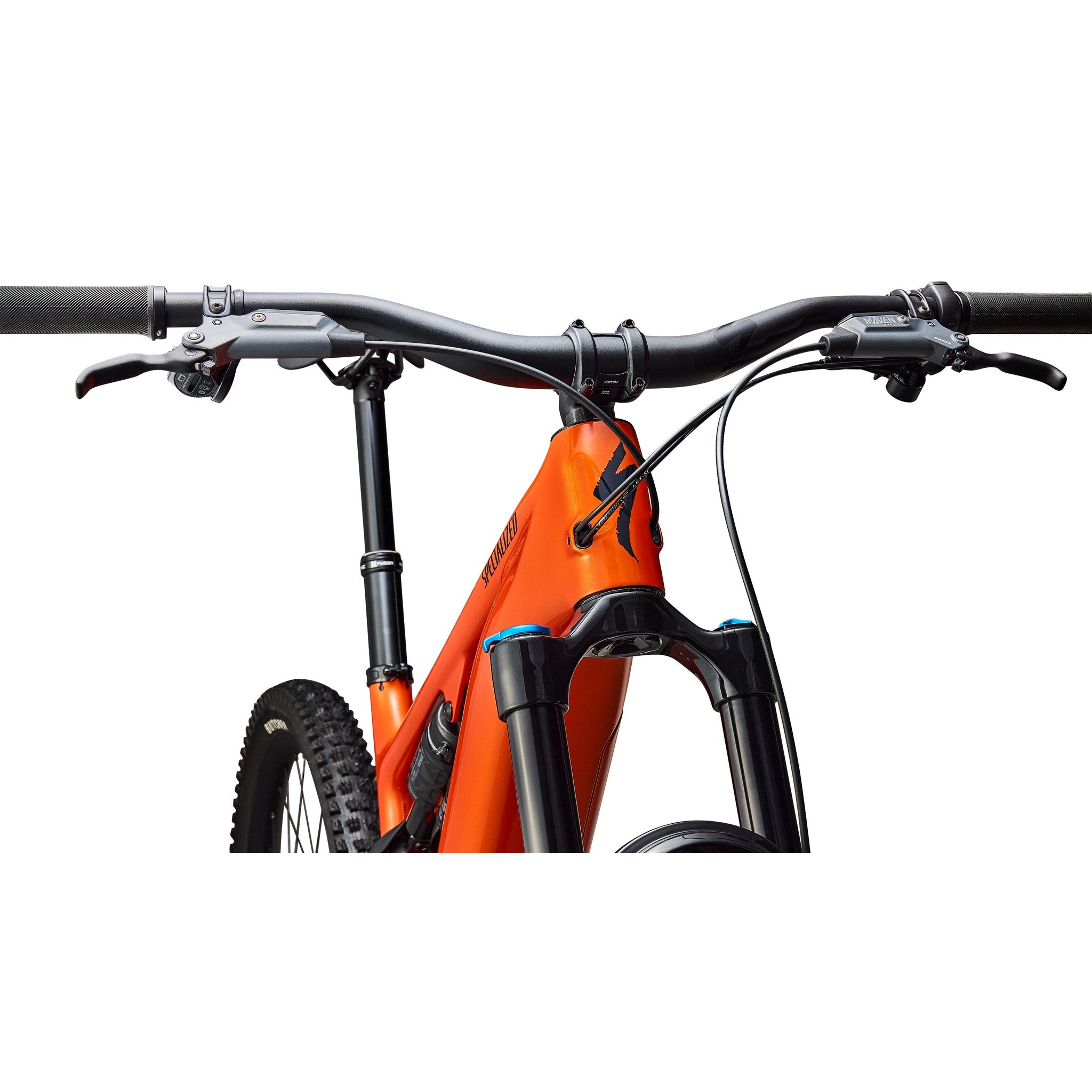

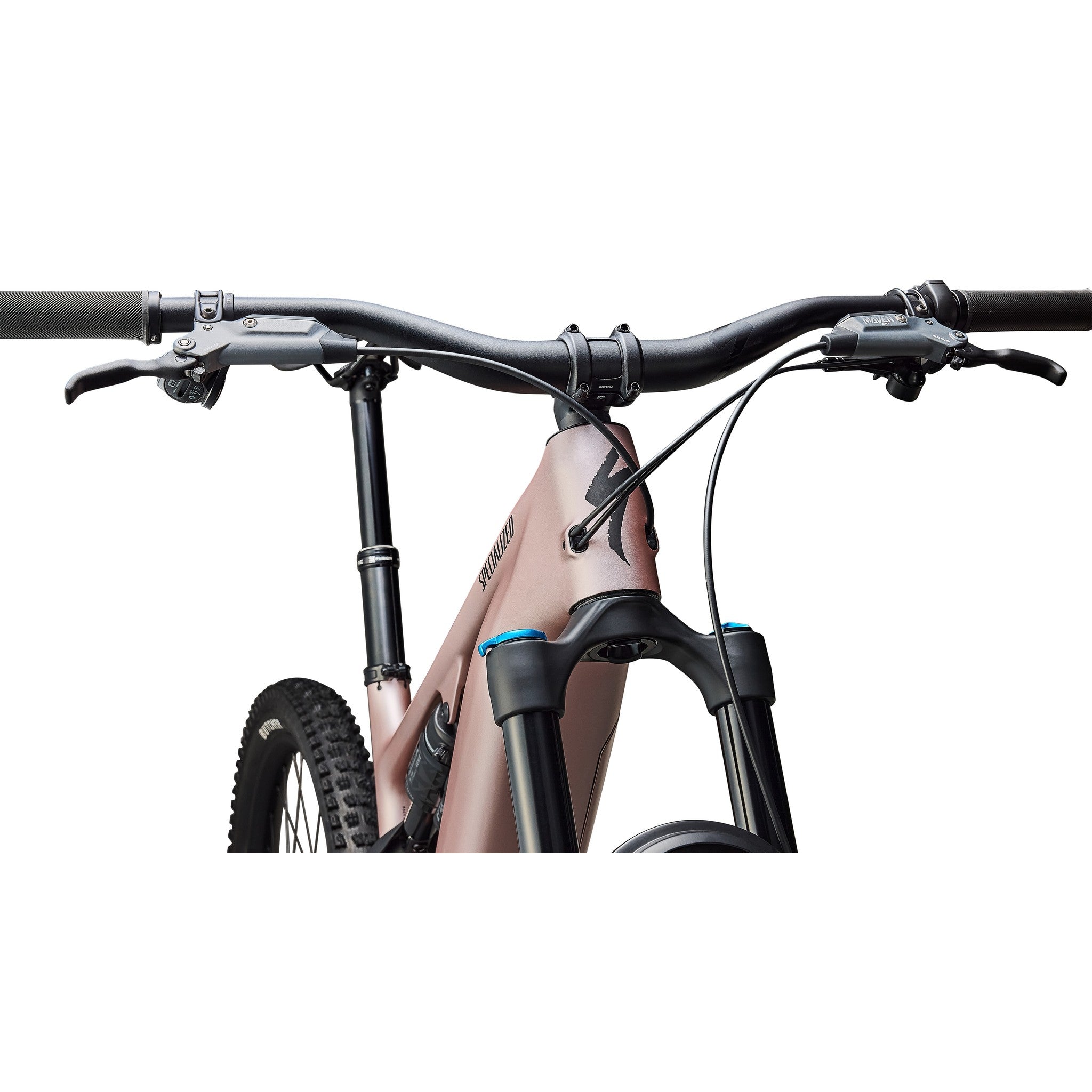

Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails
SeatPost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
218708
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
24.41 kg (53 lb, 13.0 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
