Specialized

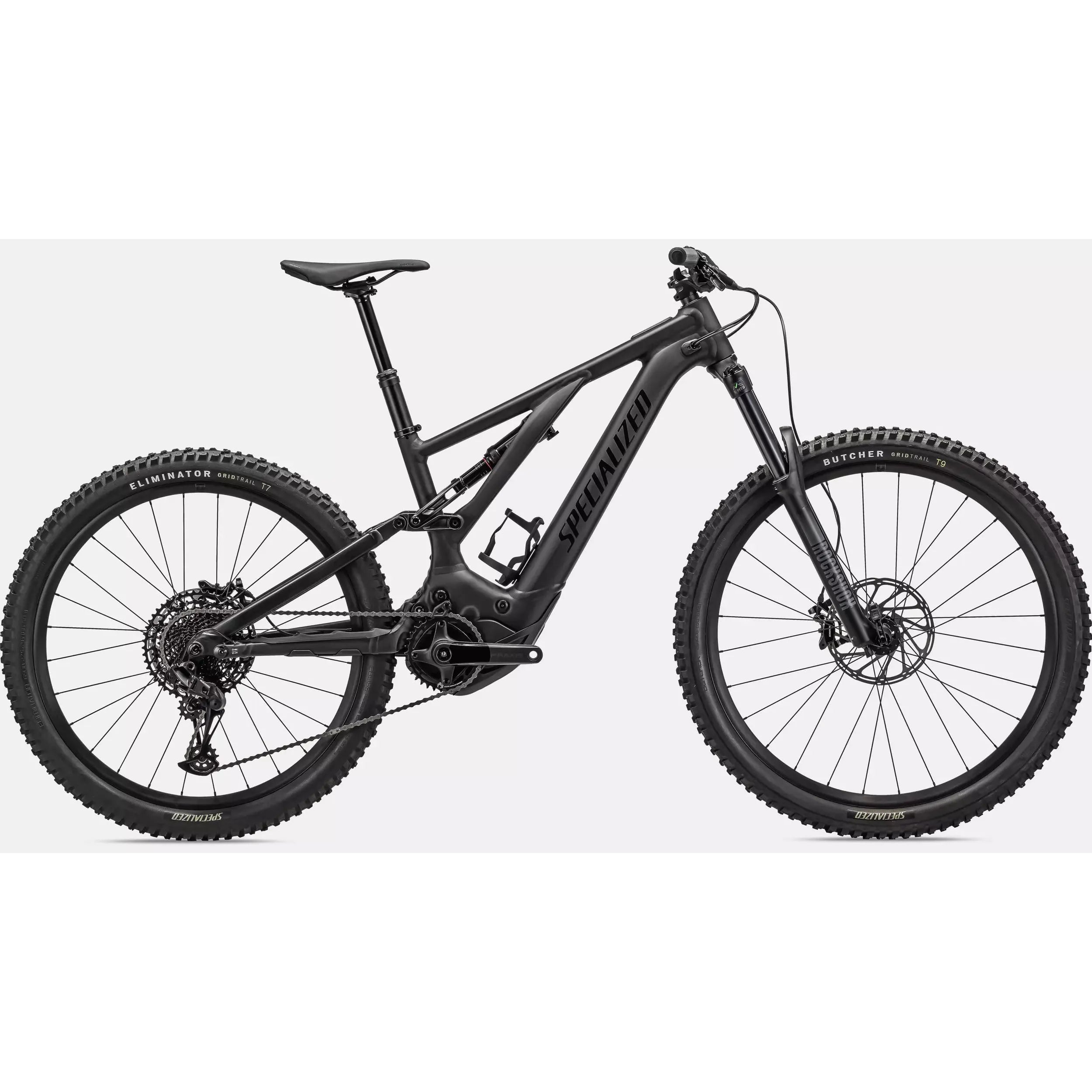

2023 Specialized Turbo Levo Alloy - Black / Light Silver / Black
Pickup available at Sierra Bicycle Supply
Usually ready in 4 hours
Loading specifications...
Error loading specifications
The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Technical Specifications
Frameset
Frame
Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Seat Binder
Alloy, 38.6mm
E-Bike
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
Suspension
Rear Shock
RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Fork
RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
Cockpit
Saddle
Body Geometry Bridge Saddle, steel rails
SeatPost
TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Brakes
Front Brake
SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
Rear Brake
SRAM Guide RE, 200mm
Drivetrain
Shift Levers
SRAM SX Eagle, 12-speed
Rear Derailleur
SRAM SX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chain
SRAM NX Eagle, 12-speed
Chainrings
SRAM X-Sync Eagle, 104 BCD, 34t, steel
Wheels & Tires
Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes
Standard, Presta Valve
Weight
Weight
23.81kg (52 lb, 7.9 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
