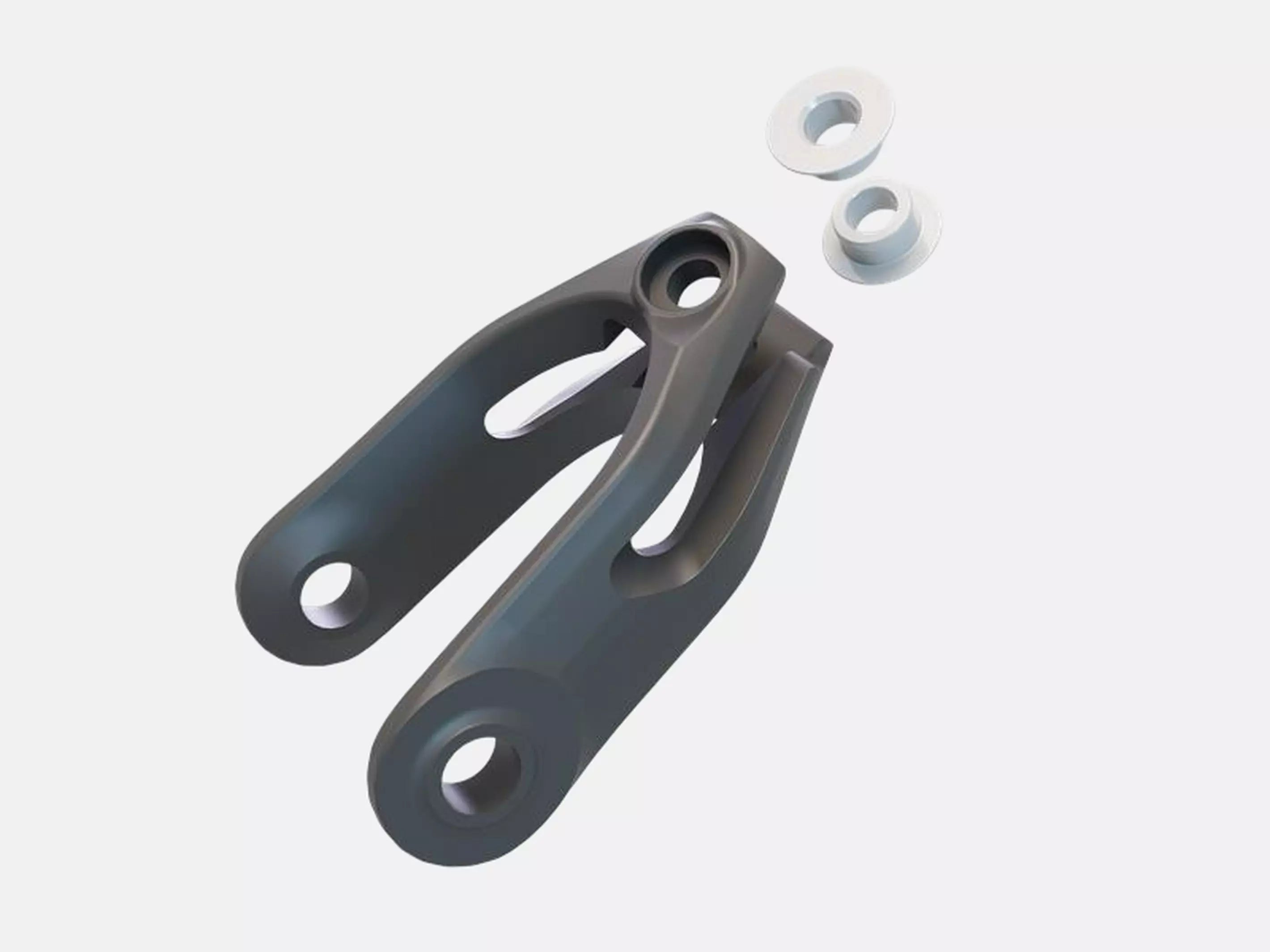

Levo 4, EVO Shock Extension, Alloy, 69mm Length

Alloy shock extension kit that allows you to convert a standard Levo 4 to an EVO set-up. Installing the EVO extension along with a new 230x62.5mm rear shock increases the rear travel from 150mm to 170mm. When converting to an EVO model, the fork air spring should be converted from 160mm to 180mm, or, the stock fork should be replaced with a 180mm travel fork.

• Converting a standard Levo 4 to an EVO set-up requires replacing the stock 210x55mm shock with a 230x62.5mm shock (not included), and, the fork air spring should be converted from 160mm to 180mm (not included), or, the stock 160mm fork replaced with a 180mm travel fork (not included).
• Re-use the rear shock eyelet mounting bolt and washer when installing an EVO shock extension.
• Forward Shock Eyelet: M8x25mm shock mounting hardware not included in the kit
• Rear Eyelet Hardware: kit includes top-hat spacers for the rear shock eyelet, but, not the 1/2" DU Bushing
• Compatible with both carbon and alloy frames.
• Compatible with S2-S6 frame sizes only.
