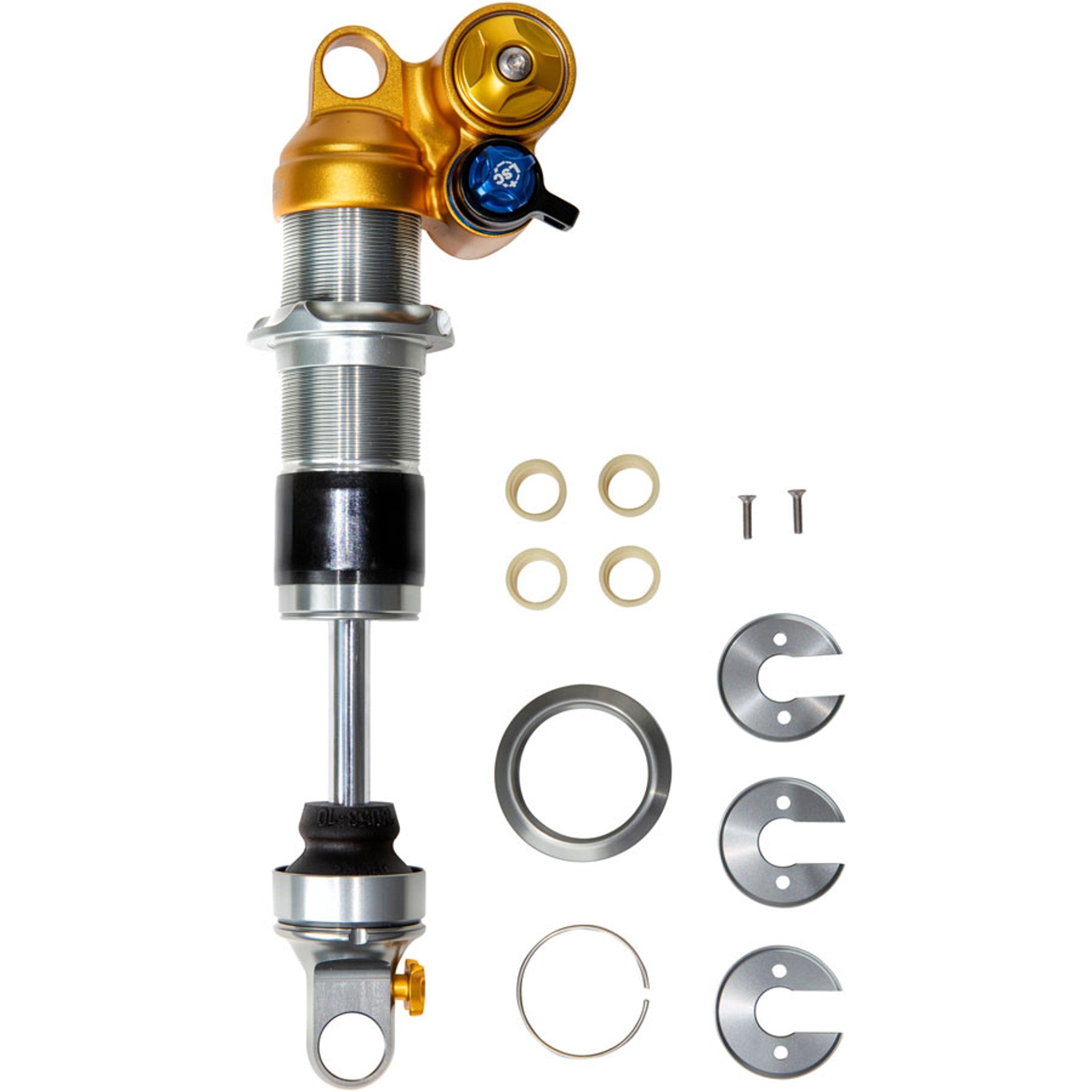

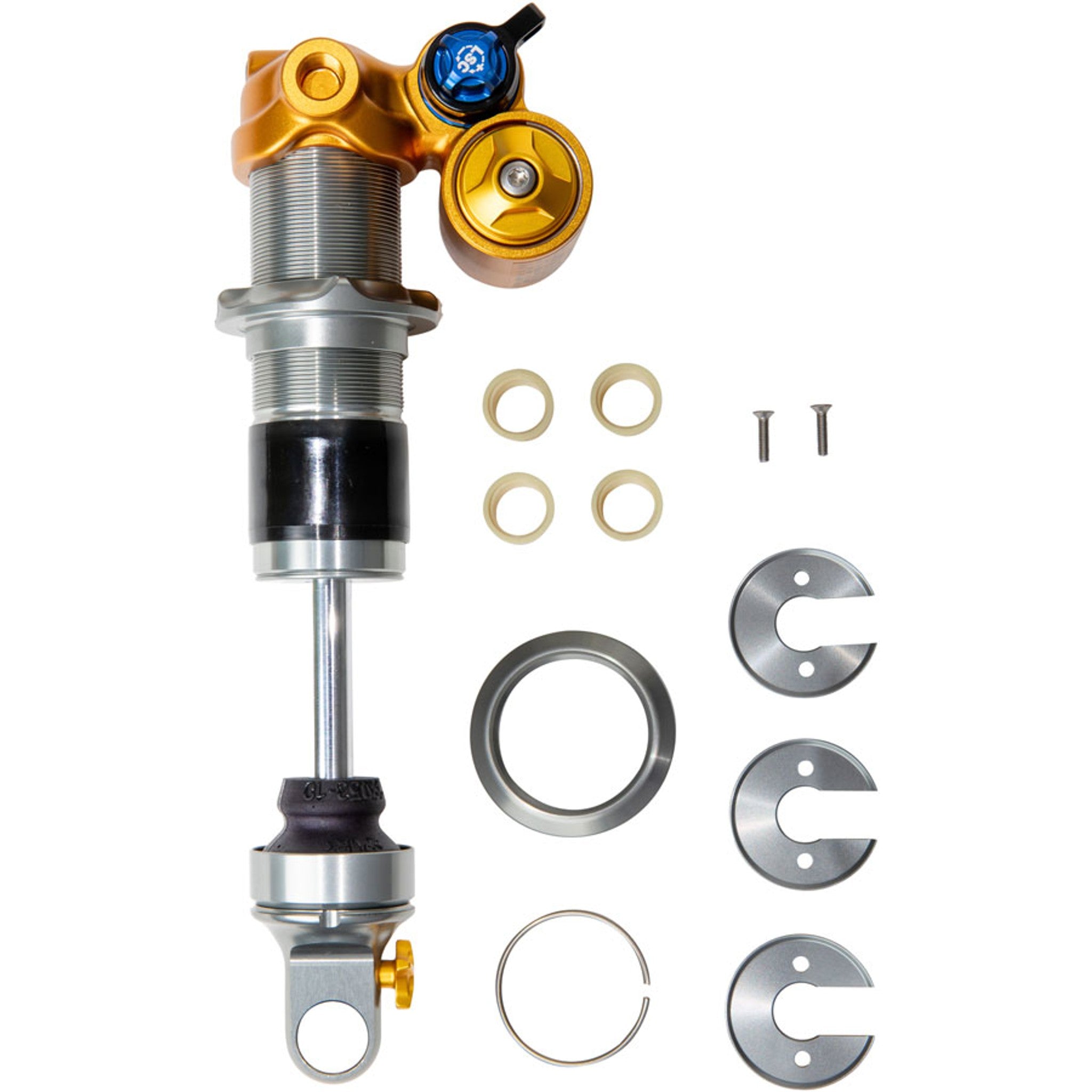

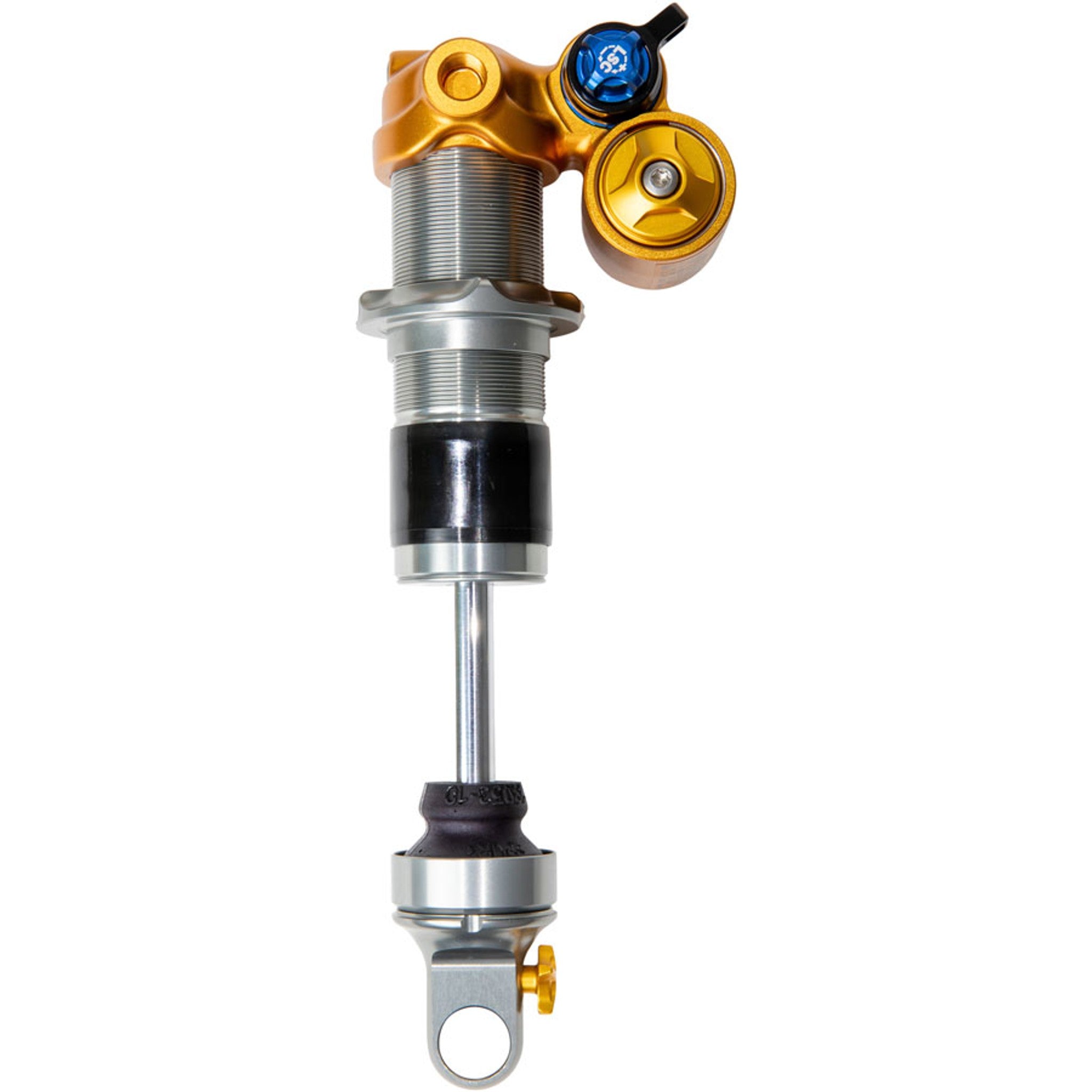

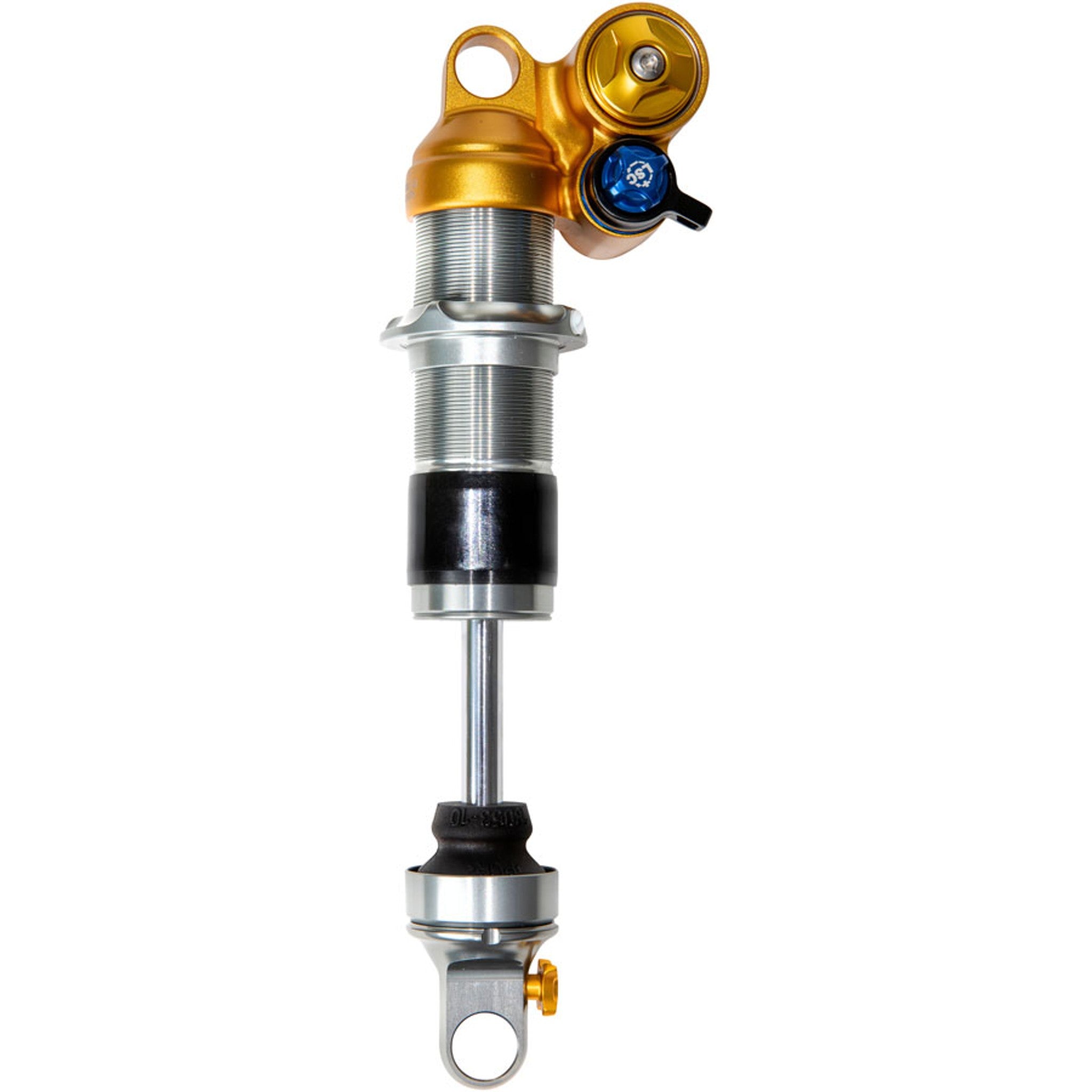

TTX22 m.2 Coil Rear Shock

Experience the next generation of big-hit suspension technology. With better end stroke control and an improved adjustment range, the TTX22m.2 coil rear shock (Coil spring separately) builds on the supreme levels of performance, traction, and control that made the original TTX22 the go-to shock choice for professional gravity riders. The TTX22m.2 bottom out performance significantly improves mid- to end-stroke control as a result of earlier engagement and more consistent, predictable support. In addition, the TTX22m.2 features easier stroke adjustment, wider adjustment range, and improved fitting. Coil spring is sold separately.

• New bump rubber, in combination with the cup it sits in, acts as a second spring, loading and releasing energy to ensure the rider returns back into position after a heavy compression in a quick, controlled manner (Coil spring sold separately)
• Spring curve of the shock improves performance for less progressive bikes that require more end-stroke support
• New design boasts the added effect of lowering the risk for a hard bottom out that could impact handling
• Changing both spring and stroke is an easy operation on the TTX22m.2 with no special tools and no shock disassembly needed to perform the operation
• Updated blue trail high-speed compression valve provides a wider adjustment range to give the rider more distinct alternatives to choose between when customizing setup
• External adjustments include: 3-level high-speed compression adjustment, 16-click low-speed compression adjustment, 7-click rebound adjustment
