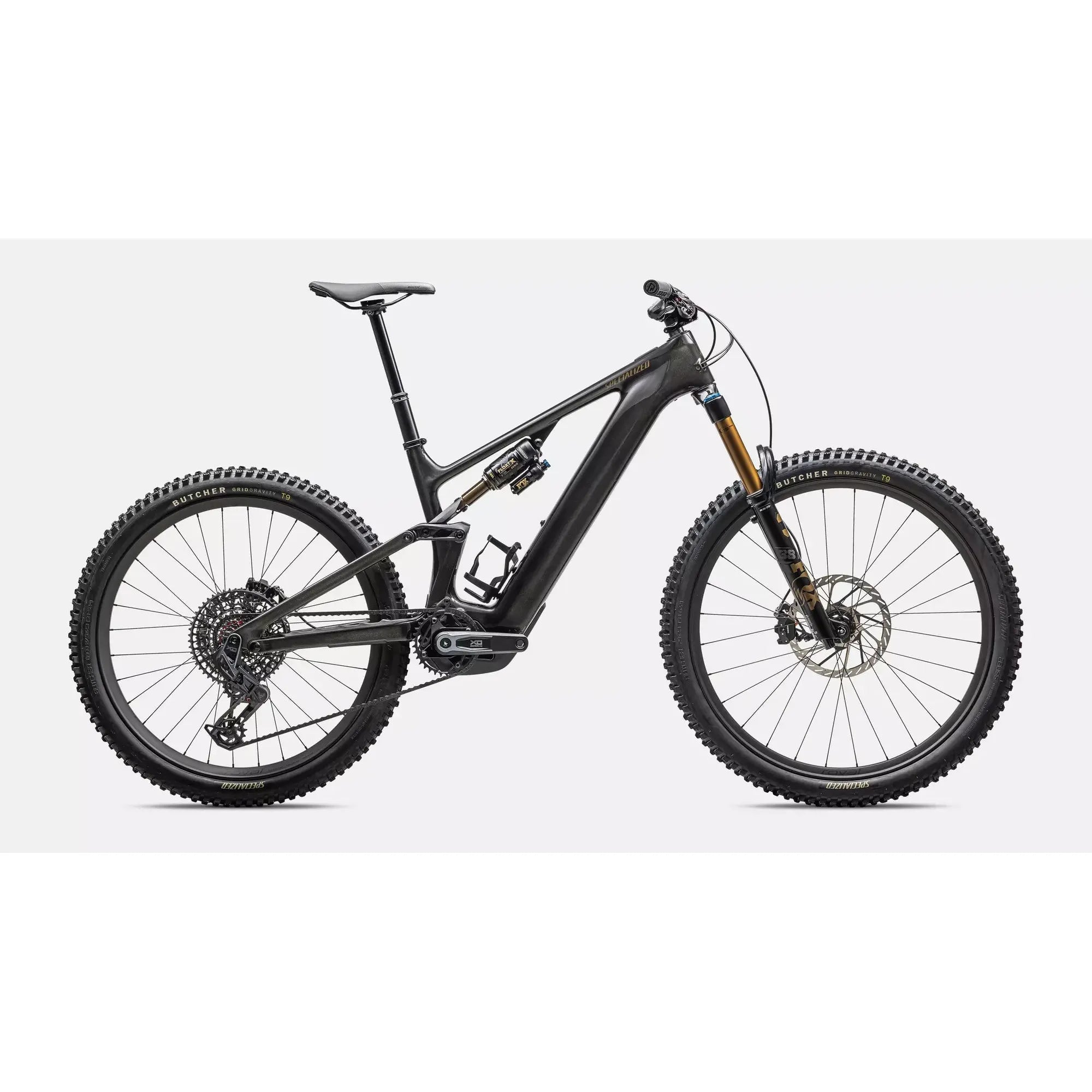

The Specialized Science Club presents their latest innovation, the Levo 4 Electric Mountain Bike. This advanced bike, with its powerful motor and large battery, gives you the strength, traction, and control to dominate any off-road terrain. With a sleek design, customizable display, and top-of-the-line components, the Levo 4 is the ultimate combination of superhuman power and natural ability. Discover the true potential of cycling with the Levo 4, where science and nature unite.
Technical Specifications
E-Bike
Motor
All New Specialized 3.1 Motor, 101Nm torque, 666W power
Battery
840wh battery
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 4amp charger
Frameset
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Fork
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM XO 1295, 12 speed, 10-52
Chain
SRAM X0
Crankset
SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
Chainrings
SRAM 34T T-Type chainring, 104 BCD, steel
Wheels & Tires
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel
Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Handlebars
RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Grips
Deity Lockjaw grips
Saddle
Bridge Mimic Expert, Hollow Ti rails
SeatPost
Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
218702
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
23.94kg (52 lb, 12.5 oz)
Weight Size
S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
